HFTX.12/PR-3/8
HFTX-PR Indicateurs de niveau d'huile
Délai: 1-2 semaines Toutes les tailles et variantes de HFTX-PR
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

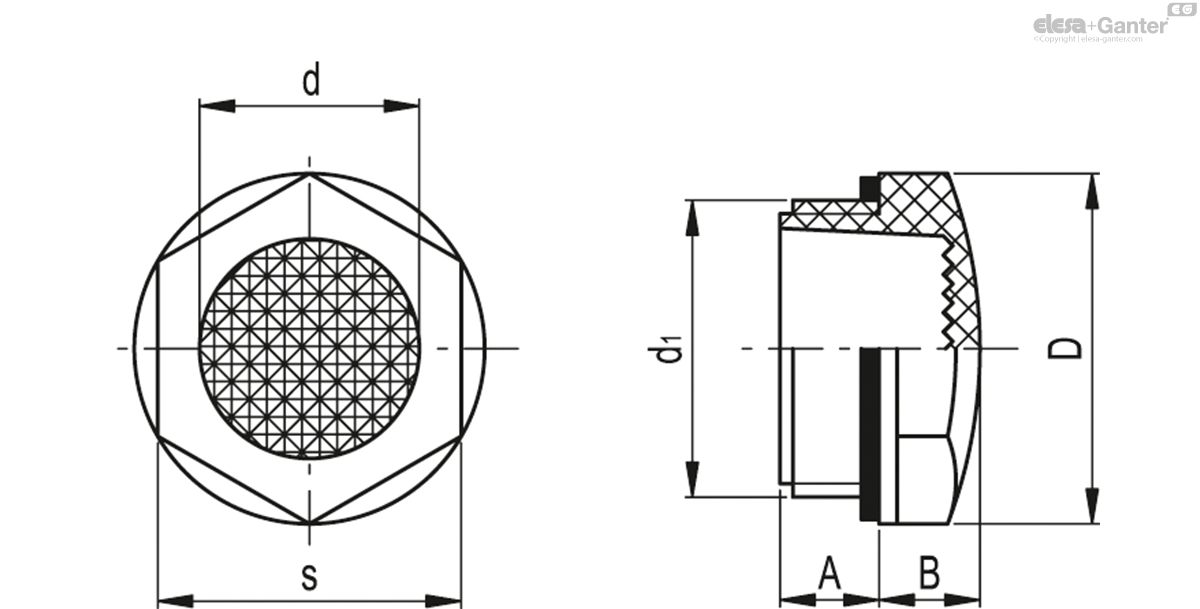

Fiche technique
Caractéristiques techniques
- Code
- 13672
- d1
- G 3/8
- A
- 7.5
- B
- 7
- D
- 22
- d
- 11
- s
- 19
- Tightening torque
[Nm] - 3÷5
- 3
Material
Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
Technical data
The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
