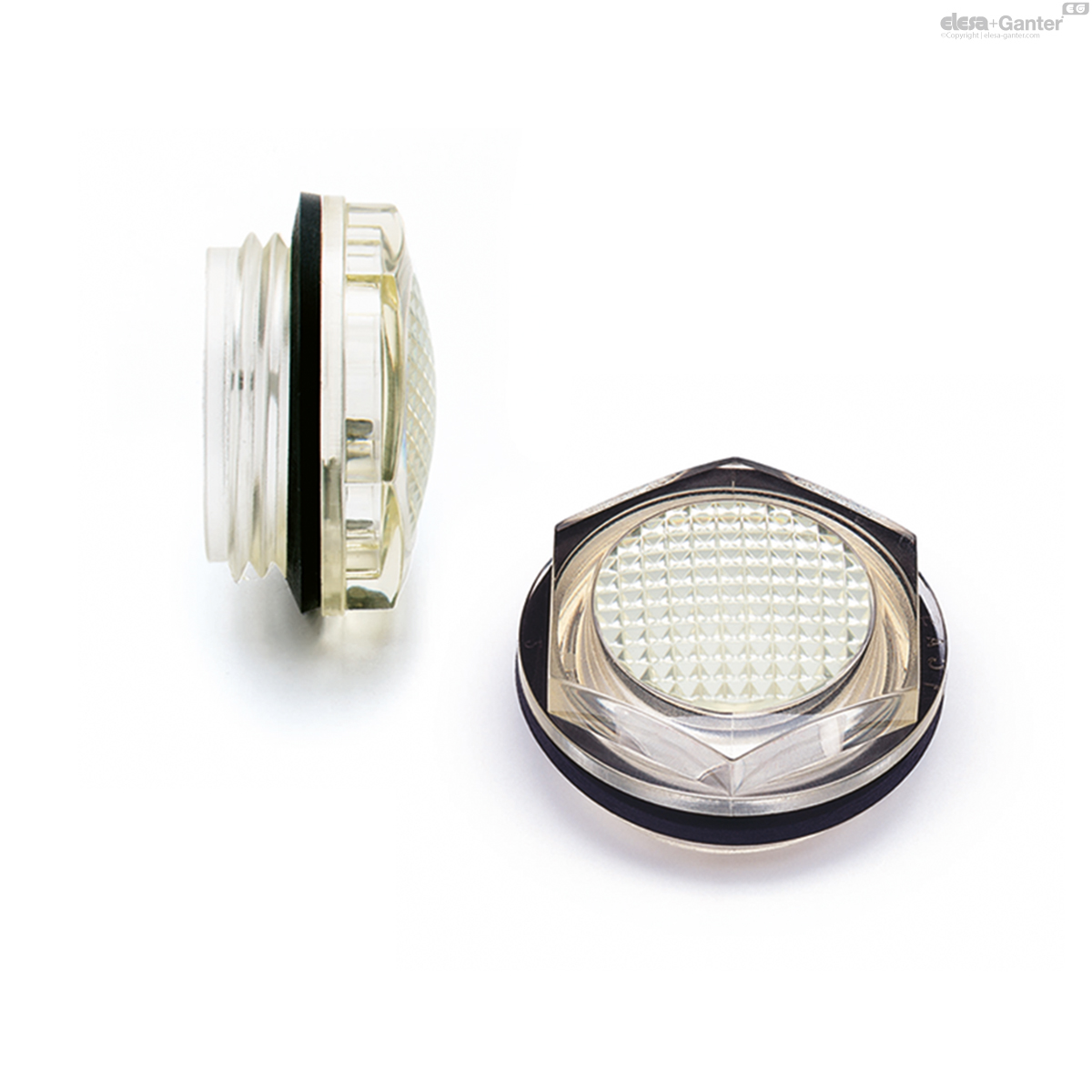

HFTX.12/PR-3/8 HFTX-PR Oil level indicators

HFTX.12/PR-3/8

HFTX-PR Oil level indicators

with prismatic window, technopolymer up to 100°C
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PPSU__.png
  • Icons/__logo__ELE_OD__.png

Eta: 1-2 weeks All sizes and variants of HFTX-PR

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
13672
d1
G 3/8
A
7.5
B
7
D
22
d
11
s
19
Tightening torque
[Nm]
3÷5
3
HFTX.12/PR-3/8 drawing

Material

Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.

Packing ring

NBR synthetic rubber.

Maximum continuous working temperature

100°C.

Technical data

The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
