GN 992Insert bushings

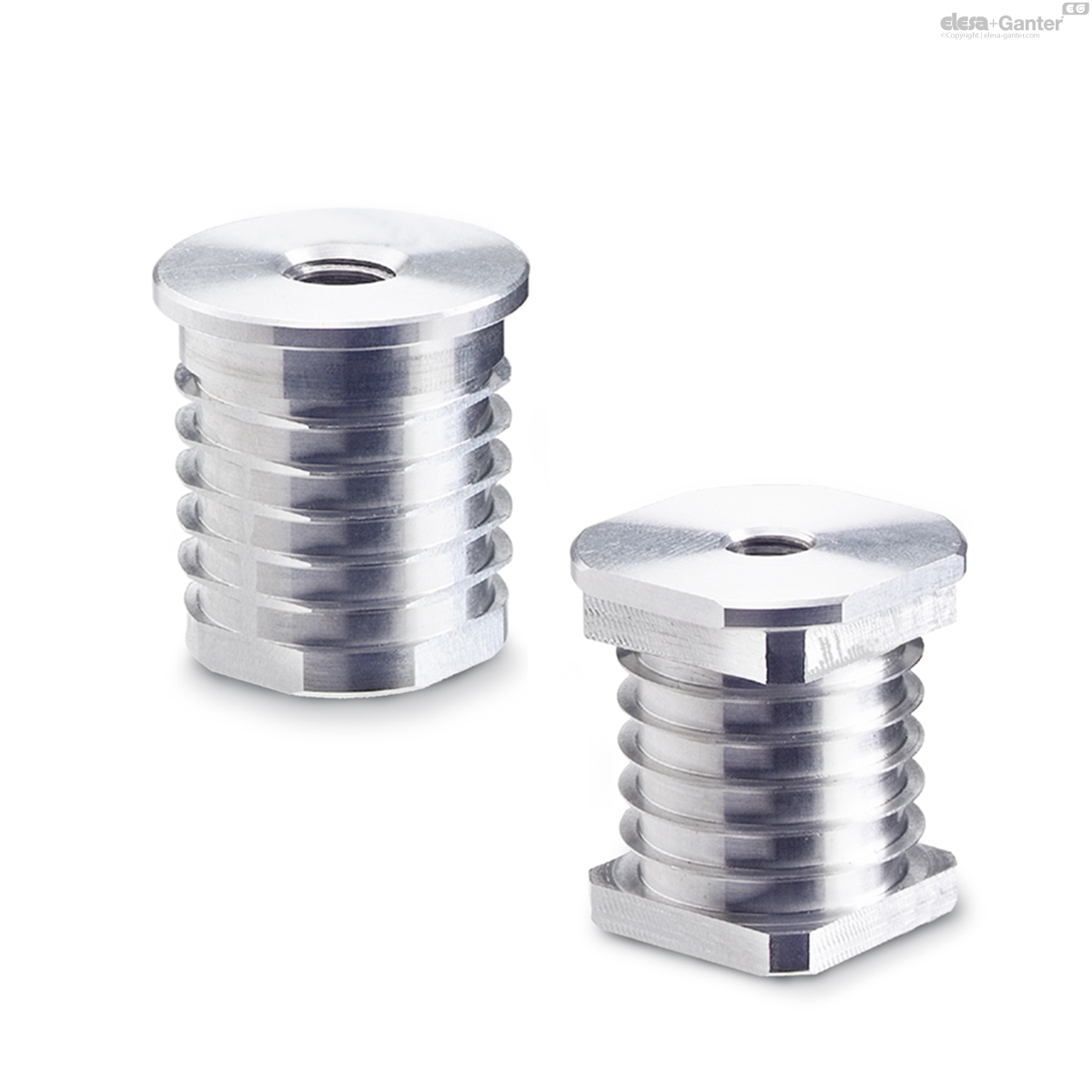

Insert bushings

Aluminium / for round tube and square tube

  • RoHS
Insert bushings
Insert bushings

GN 992

Catalogue

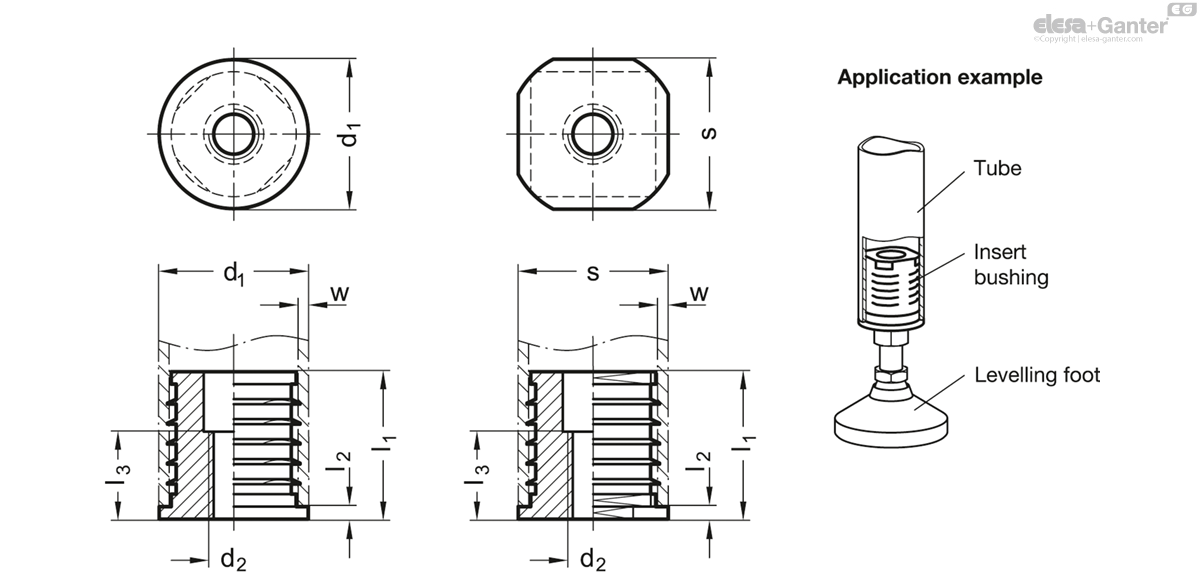

d1
s
d2
l1
l2
l3 +0.5
w
For tube
GN 990
D 20
-
M 8
29.5
2.5
16
2
D 20
10
D 25
-
M 8
'29.5
2.5
16
2
D 25
22
D 25
-
M 10
33.5
2.5
16
2
D 25
22
D 30
-
M 8
33.5
2.5
18
2
D 30
34
D 30
-
M 10
33.5
2.5
18
2
D 30
45
D 32
-
M 8
33.5
2.5
18
2
D 32
50
D 32
-
M 10
33.5
2.5
18
2
D 32
50
D 35
-
M 10
37.5
2.5
24
2
D 35
55
D 35
-
M 12
37.5
2.5
24
2
D 35
55
D 40
-
M 10
41.5
2.5
24
3
D 40
78
D 40
-
M 12
41.5
2.5
24
3
D 40
78
D 42
-
M 10
41.5
2.5
24
3
D 42
91
D 42
-
M 12
41.5
2.5
24
3
D 42
90
D 45
-
M 12
45.5
2.5
30
3
D 45
110
D 45
-
M 16
45.5
2.5
30
3
D 45
110
D 48
-
M 12
45.5
2.5
30
3
D 48
130
D 48
-
M 16
45.5
2.5
30
3
D 48
130
D 50
-
M 12
45.5
2.5
30
3
D 50
145
D 50
-
M 16
45.5
2.5
30
3
D 50
145
-
V 20
M 8
29.5
2.5
16
2
V 20
11
-
V 25
M 8
33.5
2.5
16
2
V 25
22
-
V 25
M 10
33.5
2.5
16
2
V 25
22
-
V 30
M 8
33.5
2.5
18
2
V 30
41
-
V 30
M 10
33.5
2.5
18
2
V 30
40
-
V 35
M 10
37.5
2.5
24
2
V 35
60
-
V 35
M 12
37.5
2.5
24
2
V 35
60
-
V 40
M 10
41.5
2.5
24
3
V 40
90
-
V 40
M 12
41.5
2.5
24
3
V 40
90
-
V 45
M 12
45.5
2.5
30
3
V 45
165
-
V 45
M 16
45.5
2.5
30
3
V 45
120
-
V 50
M 12
45.5
2.5
30
3
V 50
165
-
V 50
M 16
45.5
2.5
30
3
V 50
160

Aluminium

blank

Drive the insert bushings GN 992 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.

The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.
