GN 721.6-LACam Action Indexing Plungers

Left-hand lock

Stainless Steel, with Locking Function, with 180° Limit Stop

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents

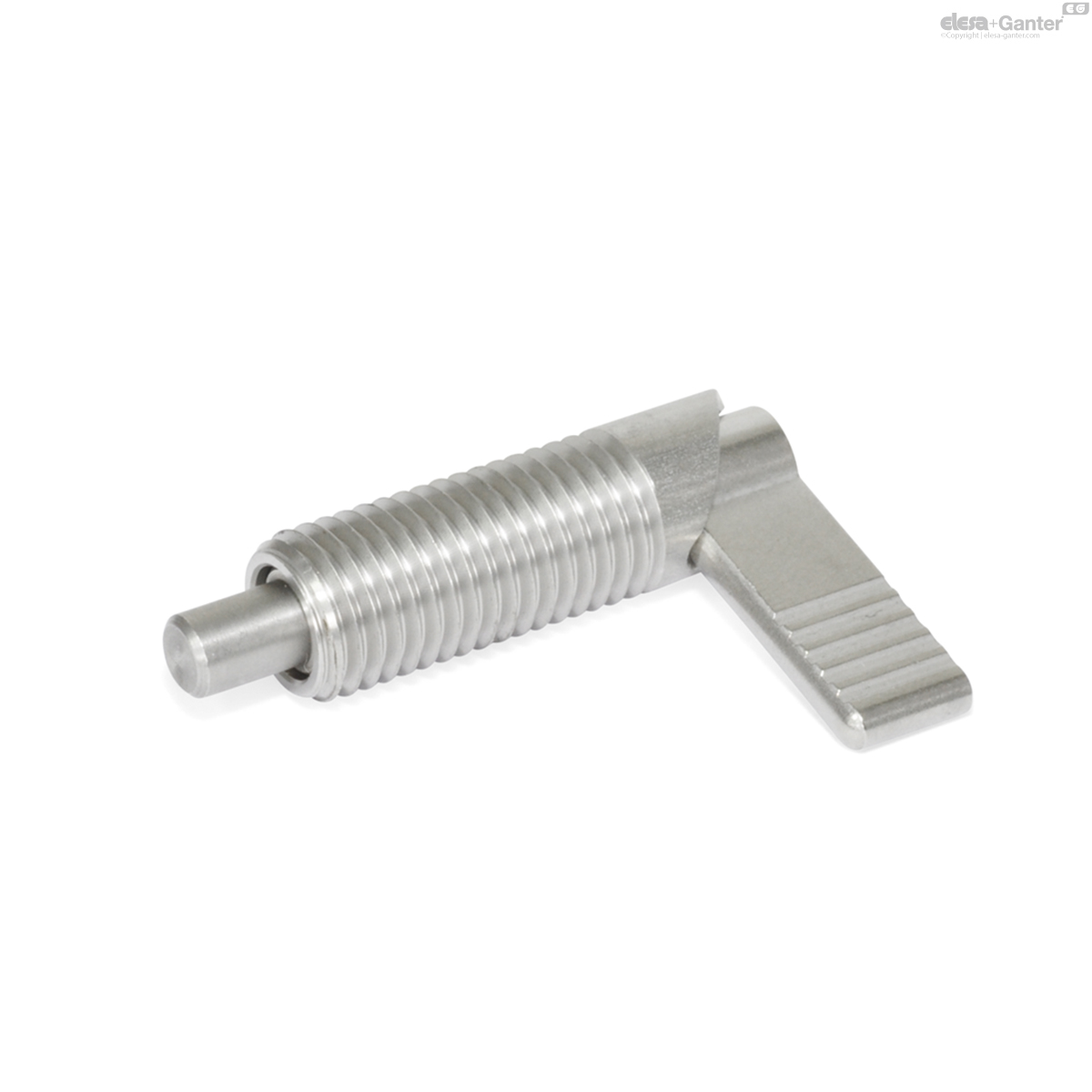

Left-hand lock
Left-hand lock

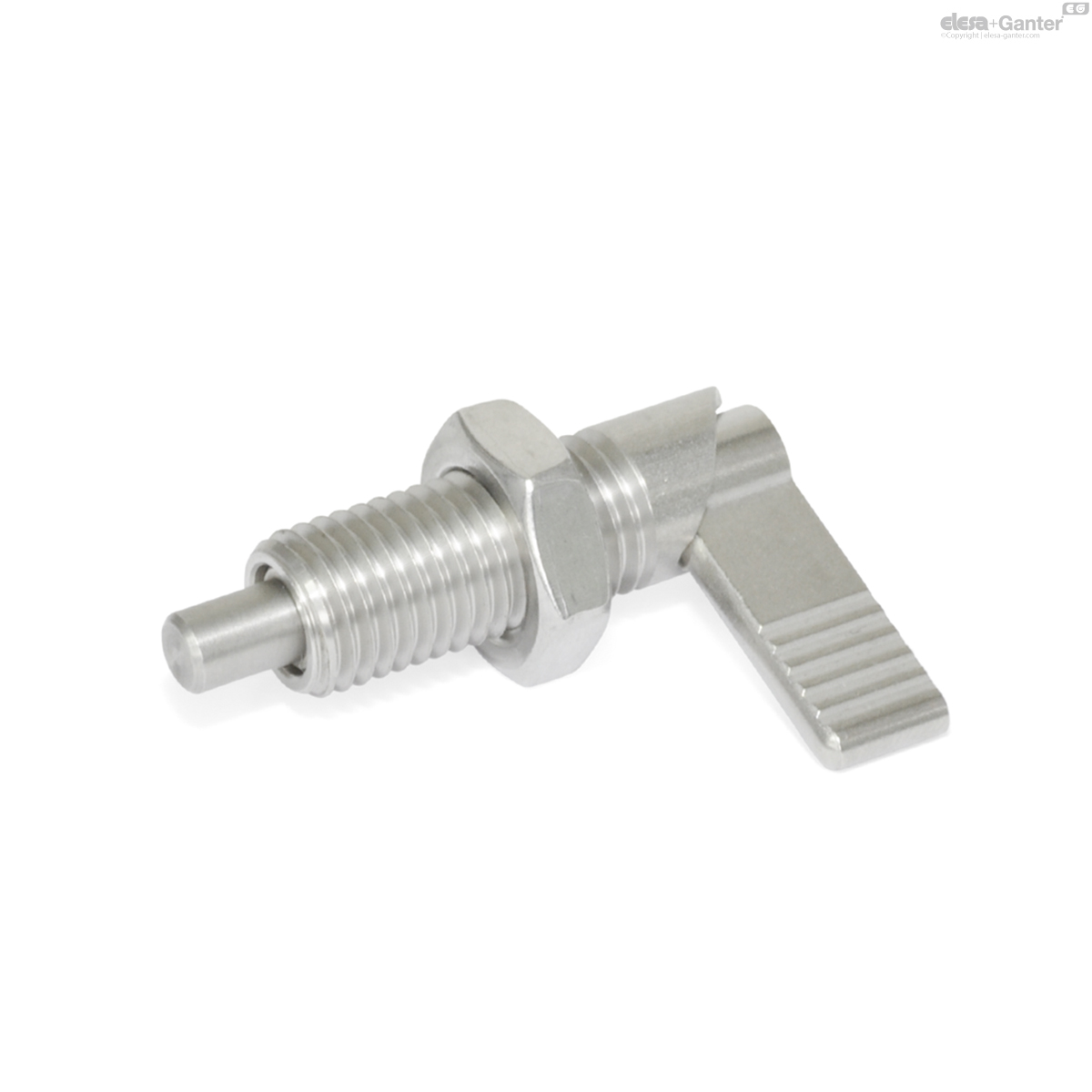

Left-hand lock, with lock nut
GN 721.6-LAK
Left-hand lock, with lock nut
Right-hand lock, with plastic cap
GN 721.6-RB
Right-hand lock, with plastic cap

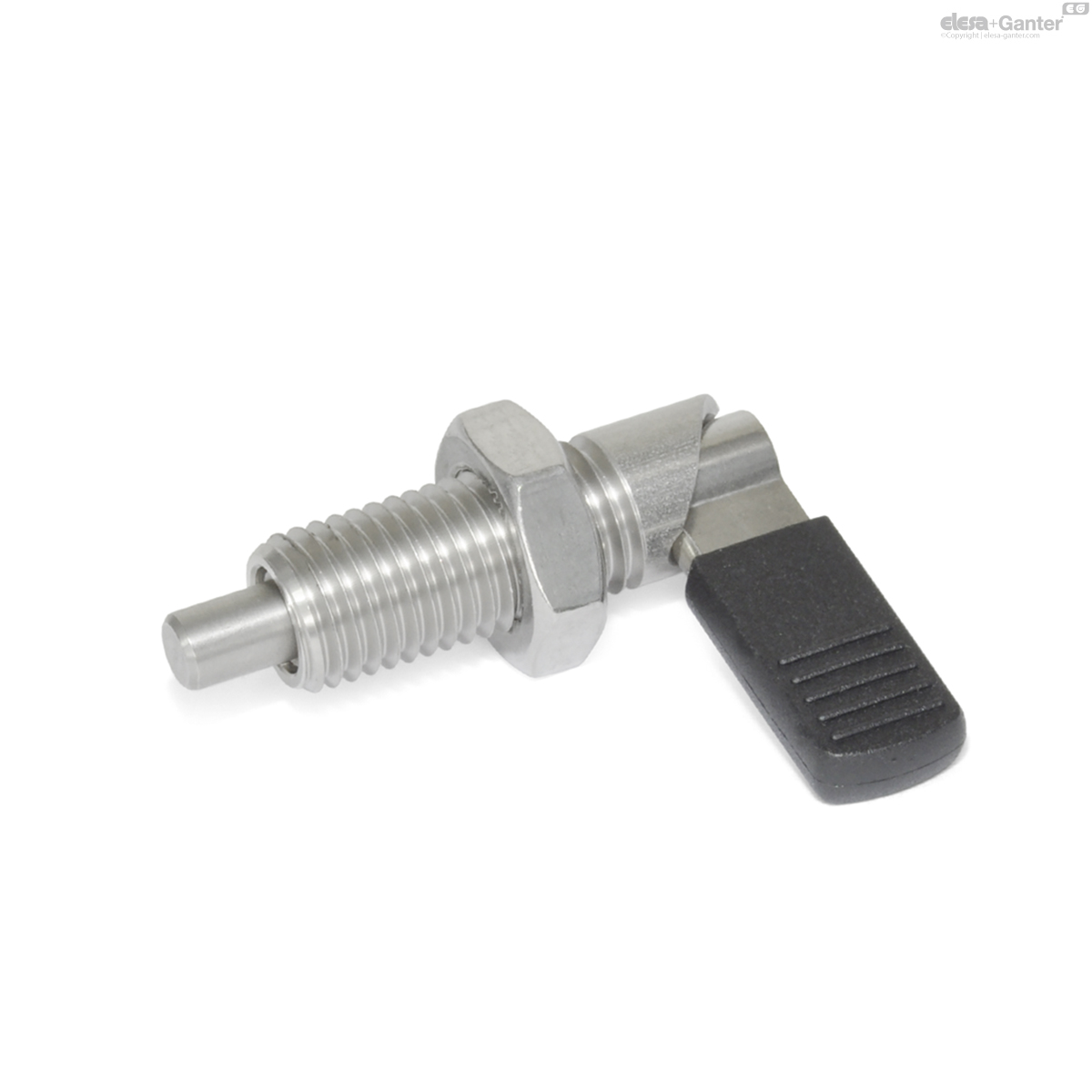

Left-hand lock, with plastic cap, with lock nut
GN 721.6-LBK
Left-hand lock, with plastic cap, with lock nut

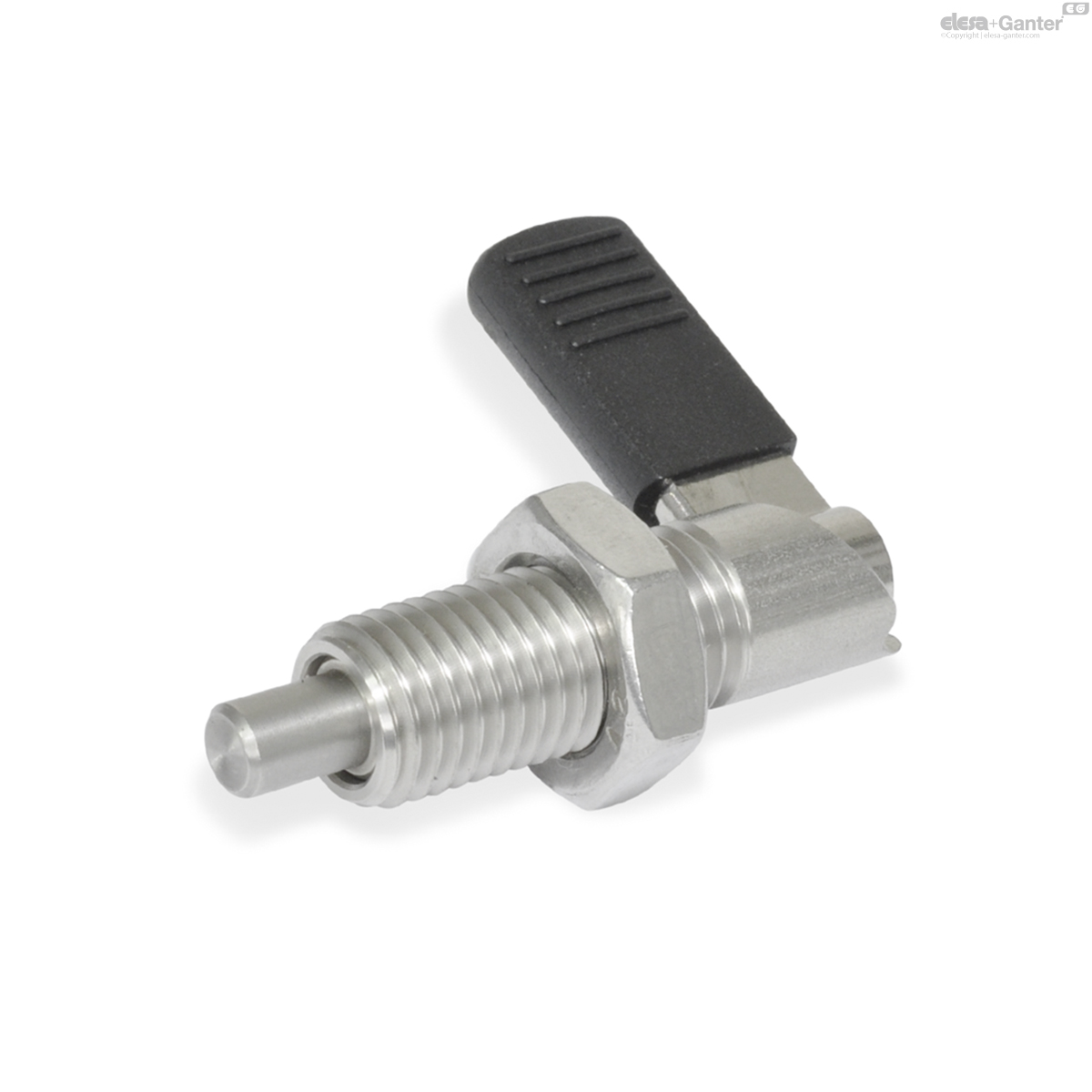

Right-hand lock, with plastic cap, with lock nut
GN 721.6-RBK
Right-hand lock, with plastic cap, with lock nut
Left-hand lock
GN 721.6-LA
Left-hand lock

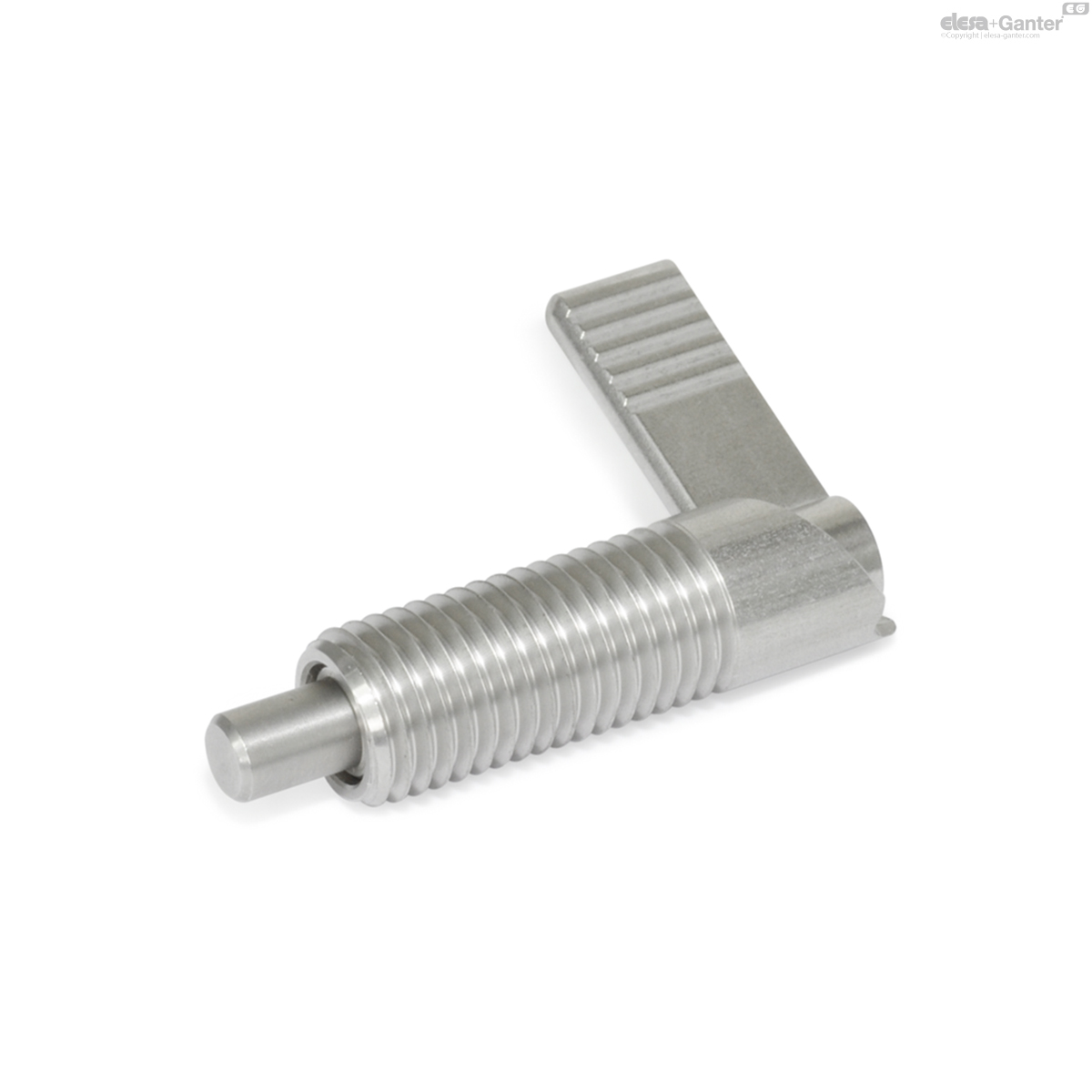

Right-hand lock
GN 721.6-RA
Right-hand lock

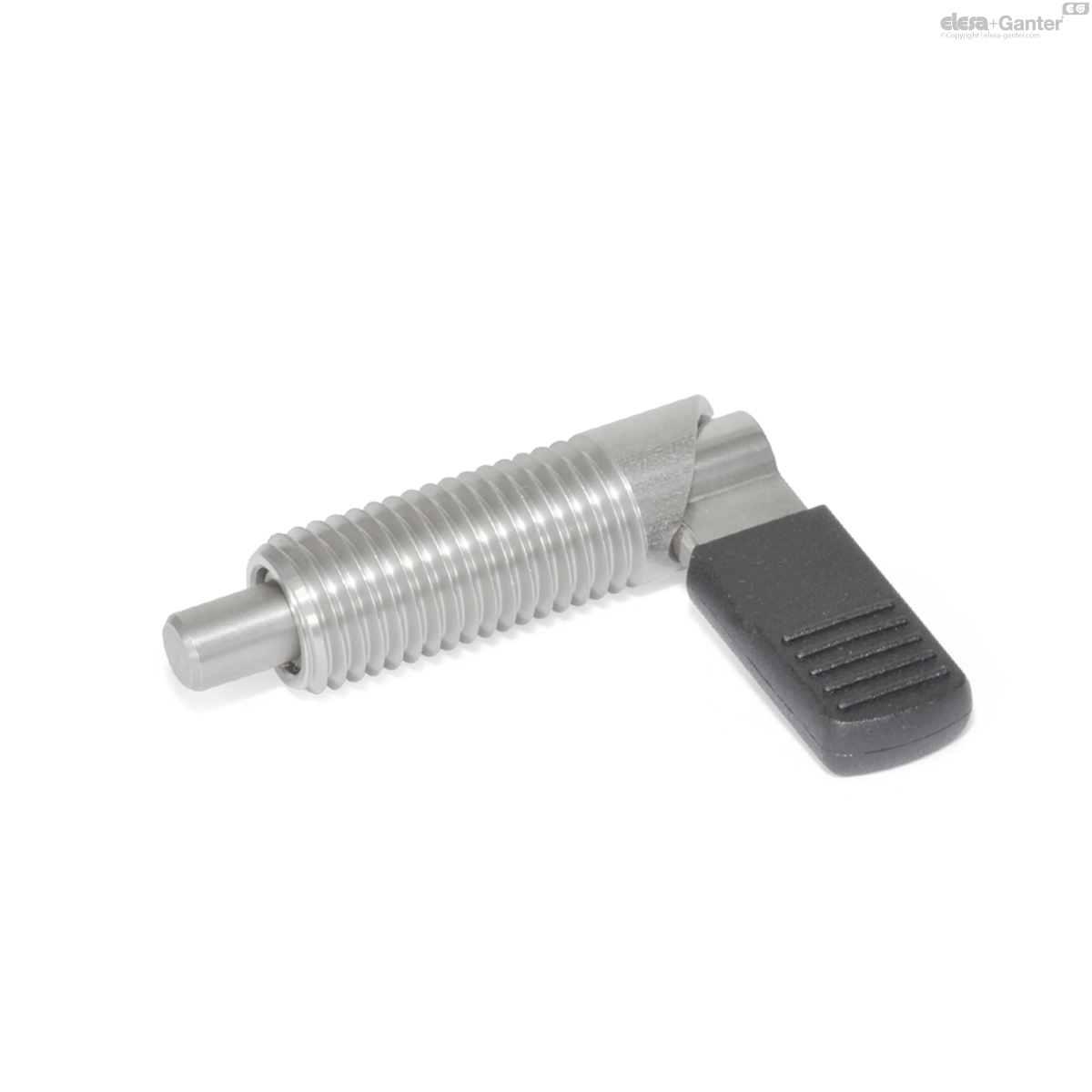

Left-hand lock, with plastic cap
GN 721.6-LB
Left-hand lock, with plastic cap

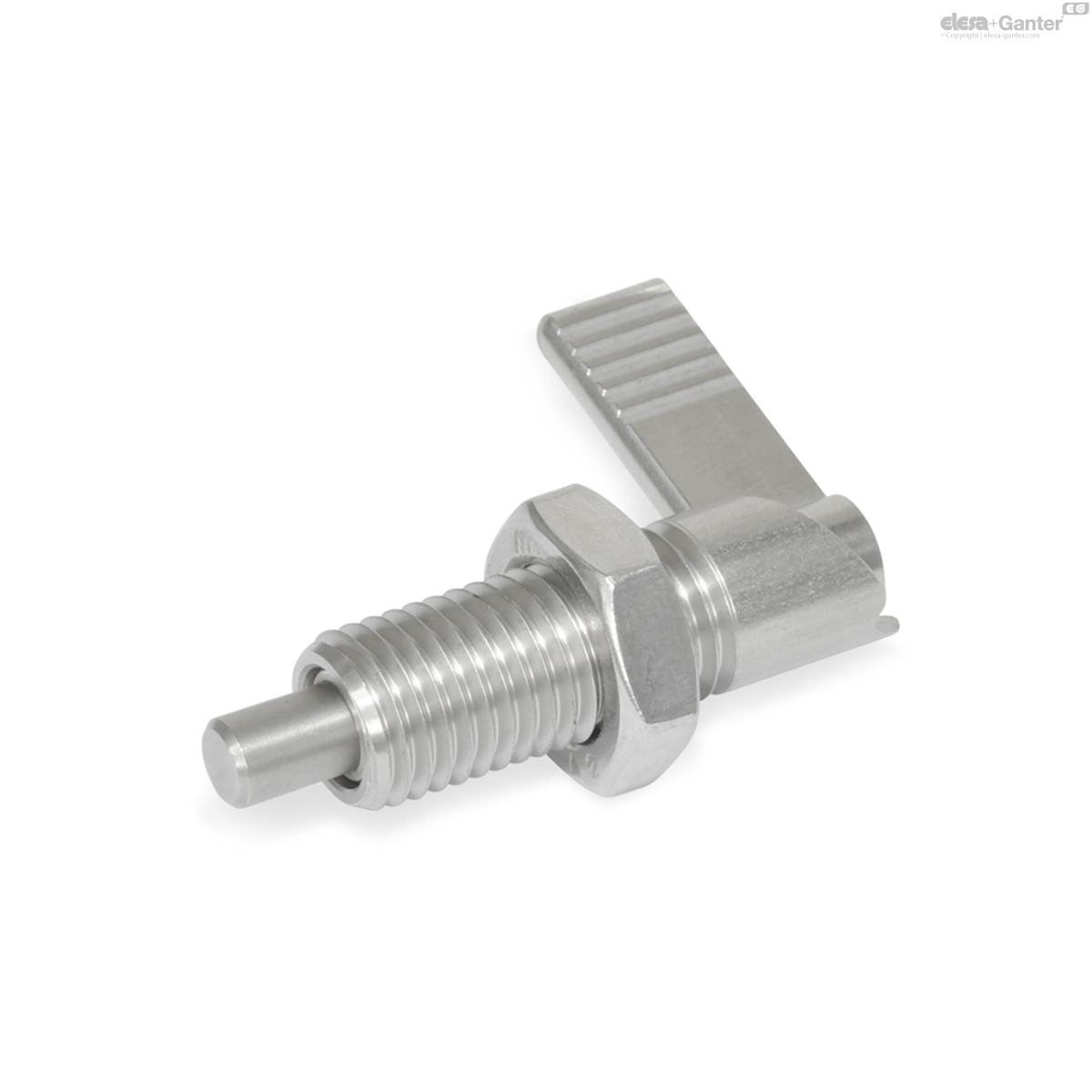

Right-hand lock, with lock nut
GN 721.6-RAK
Right-hand lock, with lock nut

GN 721.6-LA

Reset
Catalogue

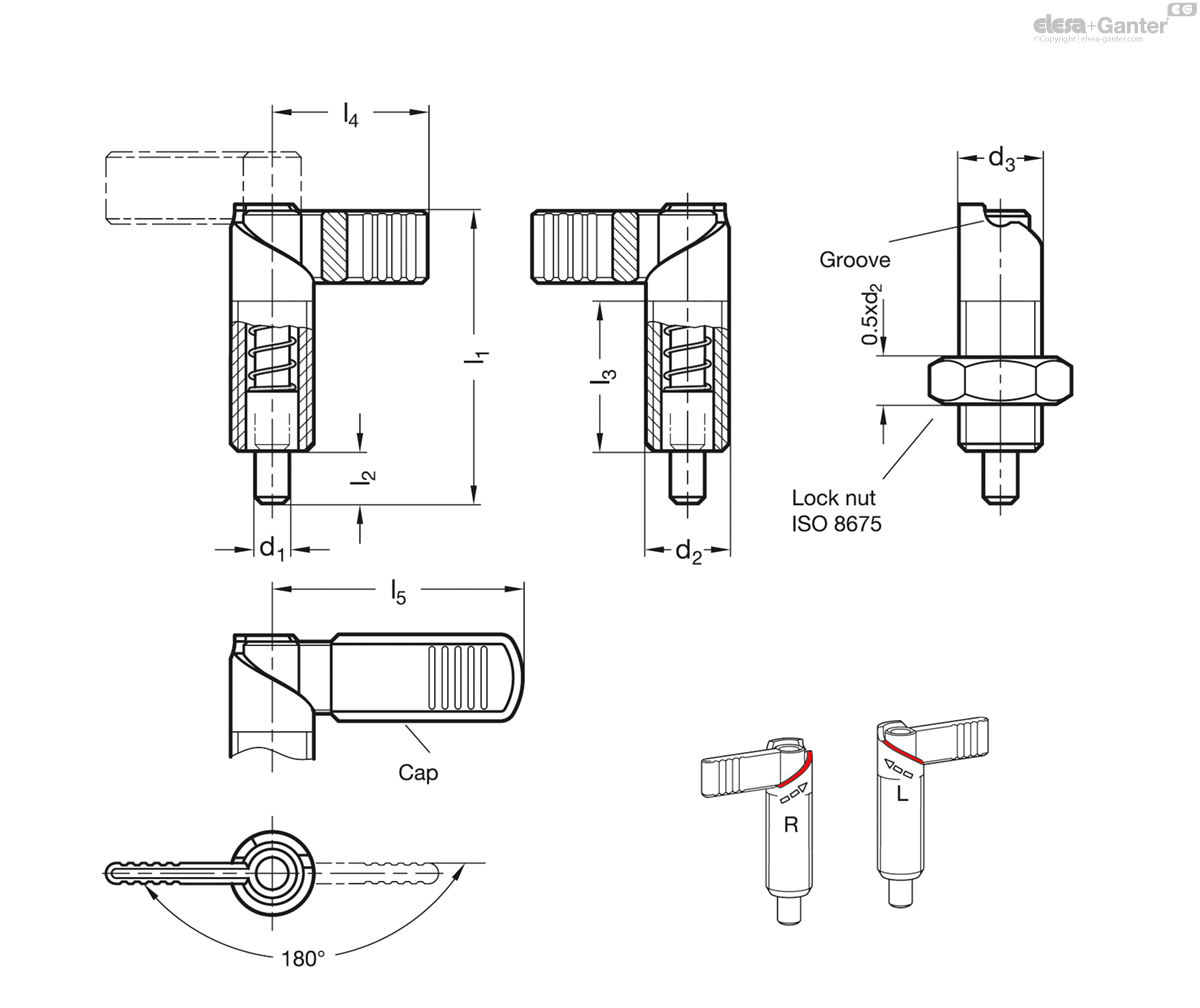

d1 Pin -0.05/-0.08
Bore
H7
d2
d3
l1
l2
l3 +1.5
l4
l5
Spring load
in N ≈
initial
Spring load
in N ≈
end
GN 721.6-5-M10x1-LA
5
M 10 x 1
10
37.5
6
19
21
-
7
20
18
GN 721.6-6-M12x1,5-LA
6
M 12 x 1.5
12
47
8
26
26
32
8
18
30
GN 721.6-8-M16x1,5-LA
8
M 16 x 1.5
16
56
10
30
32
42
11
29
66
GN 721.6-10-M20x1,5-LA
10
M 20 x 1.5
20
69
12
37
37
52
21
57
129

Types

  • Type RA: Right-hand lock
  • Type RB: Right-hand lock, with plastic cap
  • Type RAK: Right-hand lock, with lock nut
  • Type RBK: Right-hand lock, with plastic cap, with lock nut
  • Type LA: Left-hand lock
  • Type LB: Left-hand lock, with plastic cap
  • Type LAK: Left-hand lock, with lock nut
  • Type LBK: Left-hand lock, with plastic cap, with lock nut

Guide / Plunger pin / Latch arm

Stainless steel AISI 303

Cap for type RB / RBK / LB / LBK

Plastic, Polyamide (PA)

Black, matte finish

Pressure spring

Stainless steel AISI 301

Lock nut ISO 8675

Stainless steel

The groove on cam action indexing plungers GN 721.6 ensures that the locking pin remains in its withdrawn position.

For opposing cam action indexing plungers the left or right-handed types allow practical use, that is the same setting of the lock.
