GN 7062.10Sensor Holders

Sensor Holders

for Shaft Collars GN 7062.1 / GN 7072.1, Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Sensor Holders
Sensor Holders

GN 7062.10

Catalogue

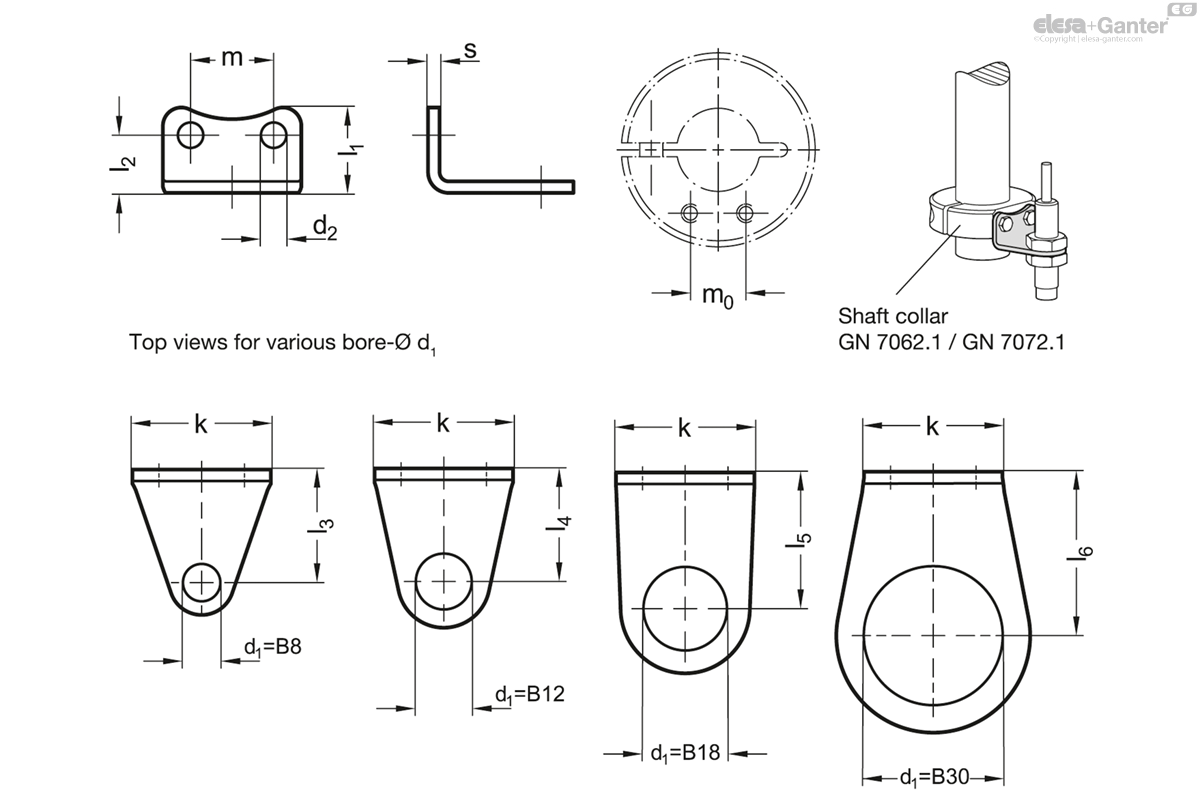

m0
d1 +0.1
k
d2
l1
l2
l3
l4
l5
l6
m
s
8
B 8
14
3.5
13
9.5
15
-
-
-
8
2
8
B 12
14
3.5
13
9.5
-
19
-
-
8
2
10
B 8
18
4.5
14.5
10.5
19
-
-
-
10
2
10
B 12
18
4.5
14.5
10.5
-
24.5
-
-
10
2
10
B 18
18
4.5
14.5
10.5
-
-
29.5
-
10
2
12
B 8
23
4.5
17
12.5
19
-
-
-
12
2.5
12
B 12
23
4.5
17
12.5
-
24.5
-
-
12
2.5
12
B 18
23
4.5
17
12.5
-
-
29.5
-
12
2.5
12
B 30
23
4.5
17
12.5
-
-
-
35.5
12
2.5
18
B 8
30
5.5
18.5
12.5
24.5
-
-
-
18
2.5
18
B 12
30
5.5
18.5
12.5
-
24.5
-
-
18
2.5
18
B 18
30
5.5
18.5
12.5
-
-
29.5
-
18
2.5
18
B 30
30
5.5
18.5
12.5
-
-
-
35.5
18
2.5

Type

  • Type L: Angled

Stainless steel AISI 304

Matte shot-blasted

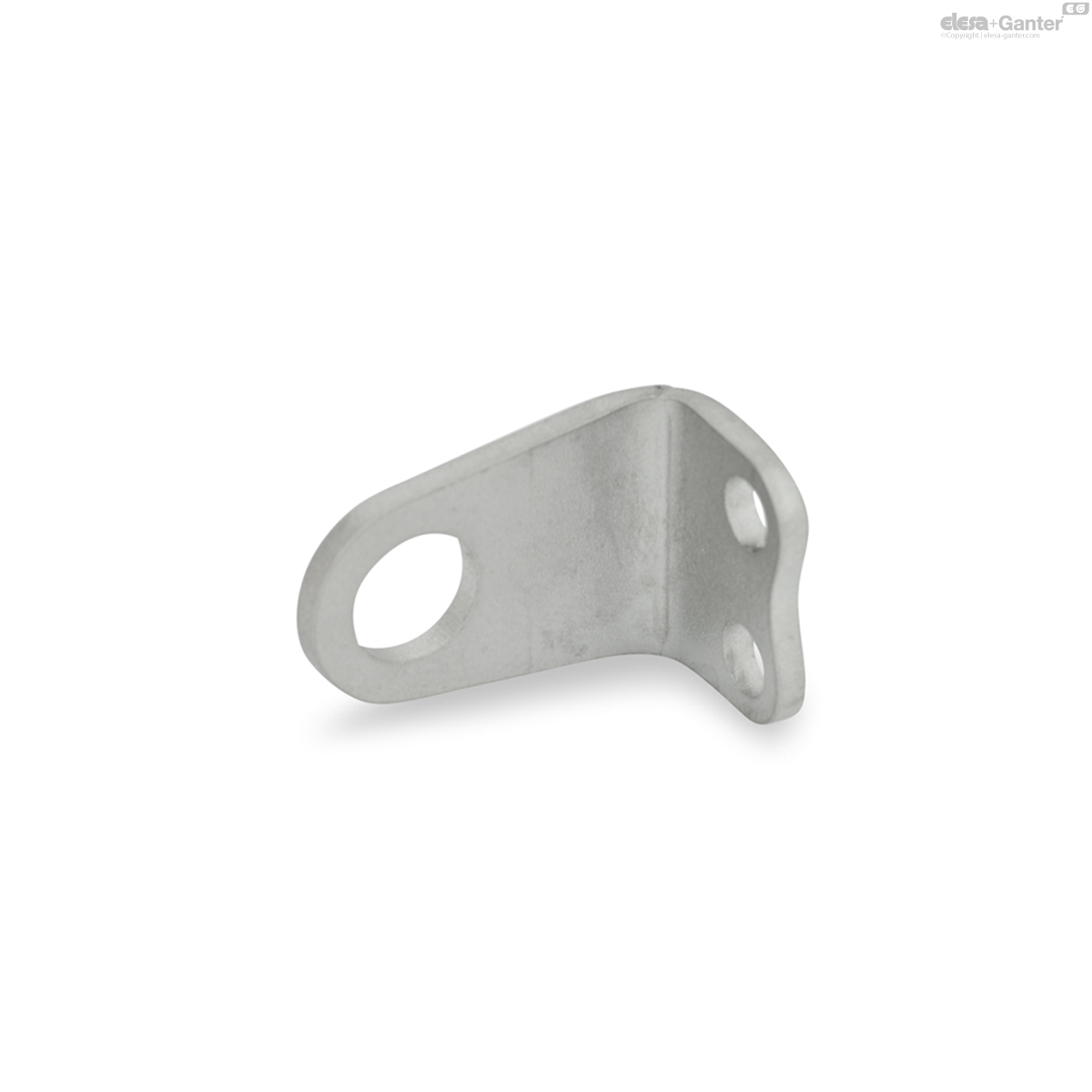

The sensor holders GN 7062.10 are designed for holding sensors attached with two lock nuts.

The holes d2 match the extension-tapped holes of the shaft collars GN 7062.1  / GN 7072.1 in measurement and facilitate axial or radial positioning of sensors.
