7062.10-B30-30-L GN 7062.10 Sensor Holders

7062.10-B30-30-L

GN 7062.10 Sensor Holders

for Shaft Collars GN 7062.1 / GN 7072.1, Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 7062.10

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 7062.10-B30-30-L
m0
18
d1 +0.1
B 30
k
30
d2
5.5
l1
18.5
l2
12.5
l6
35.5
m
18
s
2.5
31

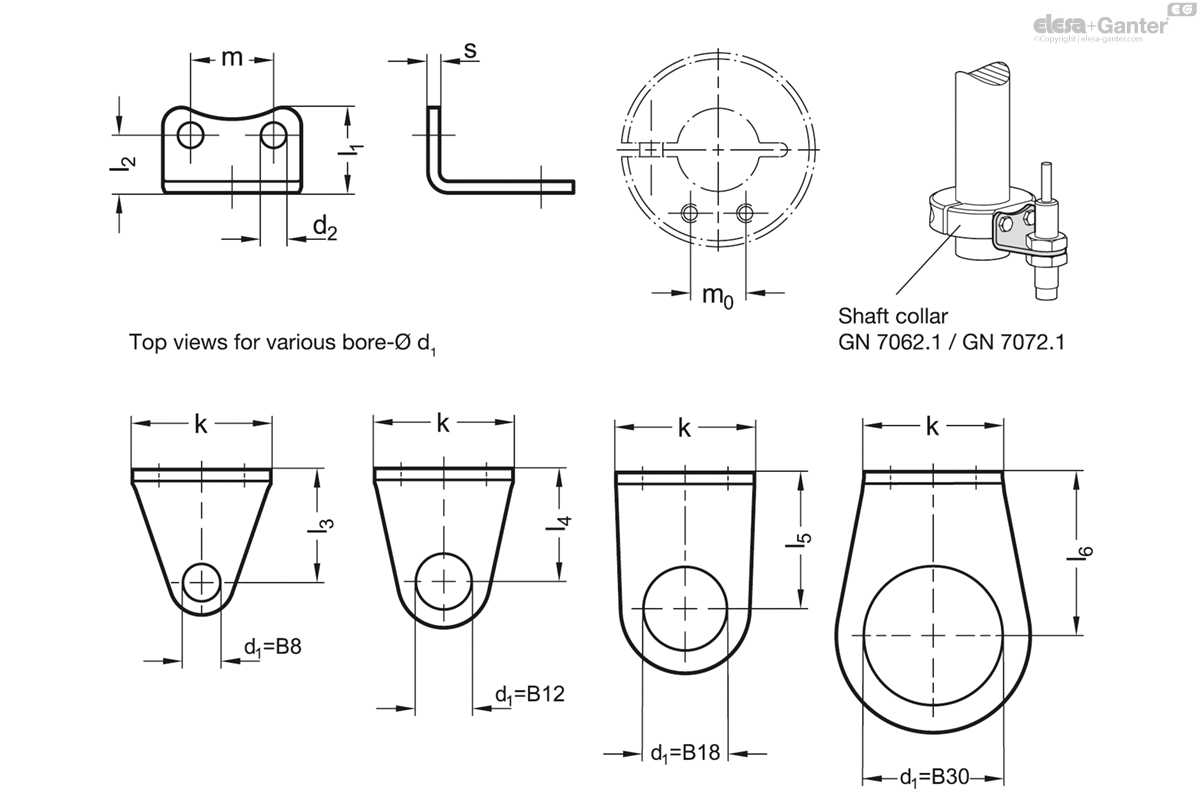

7062.10-B30-30-L drawing

Type

  • Type L: Angled

Stainless steel AISI 304

Matte shot-blasted

The sensor holders GN 7062.10 are designed for holding sensors attached with two lock nuts.

The holes d2 match the extension-tapped holes of the shaft collars GN 7062.1  / GN 7072.1 in measurement and facilitate axial or radial positioning of sensors.
