GN 6343Washers / Levelling disks

Washers / Levelling disks

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Washers / Levelling disks
Washers / Levelling disks

GN 6343

Catalogue

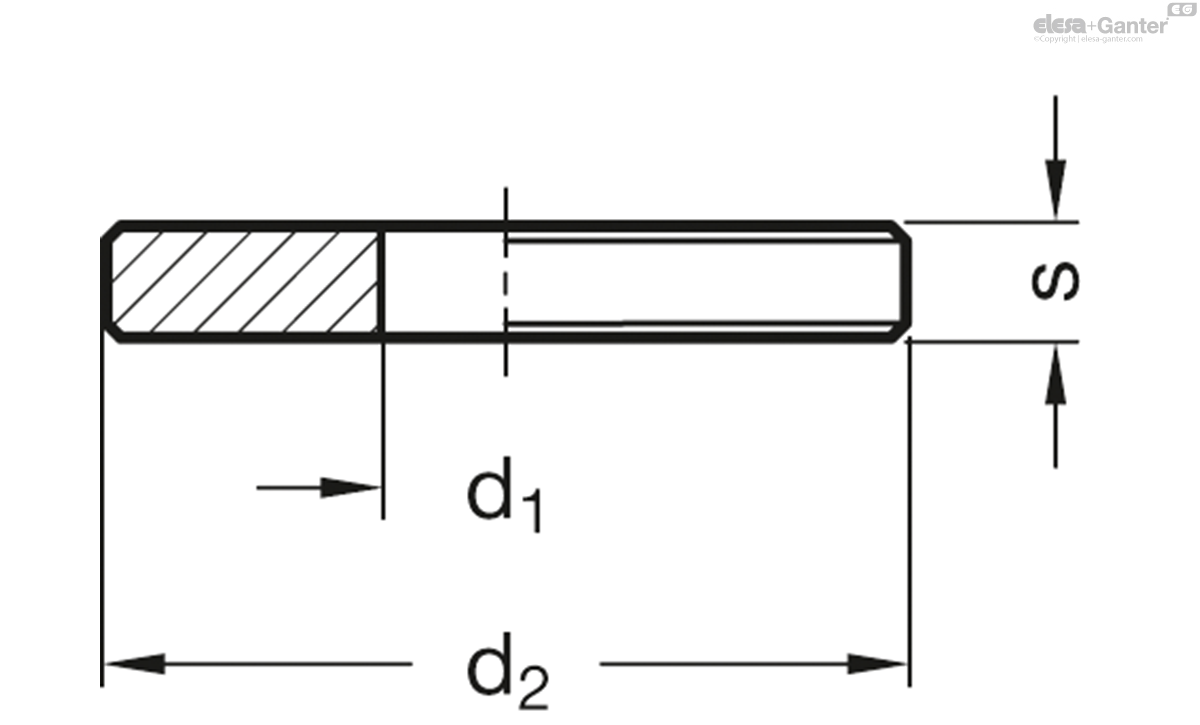

d1 +0.1/+0.3
d2 -0.2
s ±0.1
4
8
1
3
4
8
2
4
4
12
1
8
4
12
2
16
4
12
3
3
5
10
1
5
5
10
2
1
5
10
3
2
5
15
2
3
5
15
3
4
6
12
1
1
6
12
2
1
6
12
3
2
6
20
2
5
6
20
3
7
6
20
5
11
8
16
2
3
8
16
3
4
8
16
5
6
8
25
2
6
8
25
3
10
8
25
5
17
10
20
2
4
10
20
3
6
10
20
5
10
10
30
3
15
10
30
5
25
12
20
2
3
12
20
3
3
12
20
5
8
12
30
3
14
12
30
5
23
16
20
2
18
16
20
3
27
16
20
5
14
16
30
3
12
16
30
5
20

Stainless Steel NI

  • AISI 304
  • turned, blank

Washers / Levelling disks GN 6343 are used mainly in mechanical engineering and jigmaking is required for levelling.

  • other dimensions
  • chemically blackened surface
