Technical datasheet

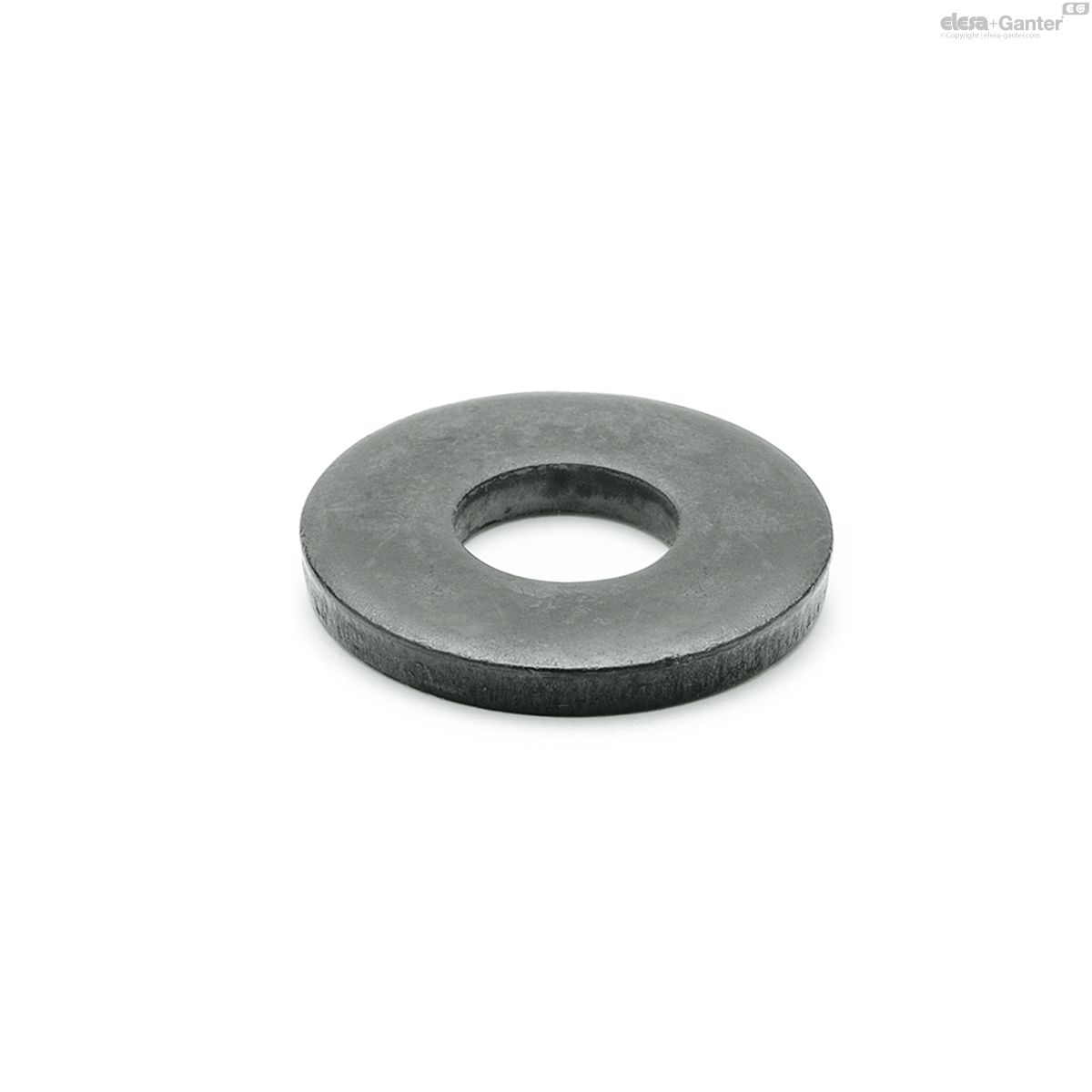

DIN 6340Washers
Washers
DIN 6340
|
Catalogue
|

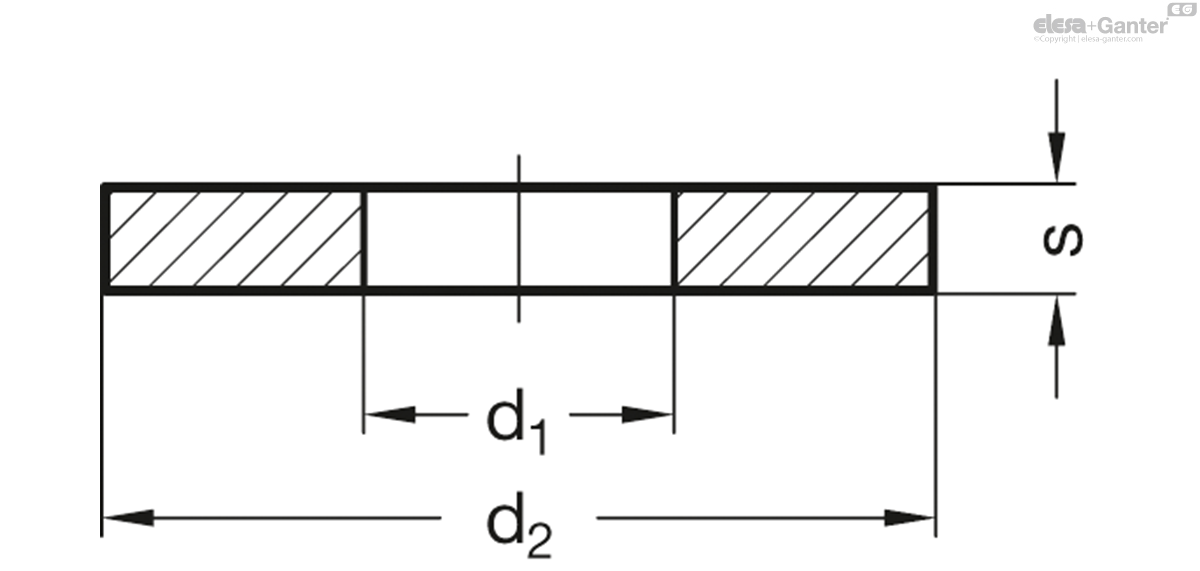

d1
|
d2
|
s
|
For threaded bolts
|
|
|
|---|---|---|---|---|---|---|
|
6.4
|
17
|
3
|
M 6
|
4
| ||
|
8.4
|
23
|
4
|
M 8
|
10
| ||
|
10.5
|
28
|
4
|
M 10
|
16
| ||
|
13
|
35
|
5
|
M 12
|
27
| ||
|
15
|
40
|
5
|
M 14
|
36
| ||
|
17
|
45
|
6
|
M 16
|
56
| ||
|
21
|
50
|
6
|
M 20
|
60
| ||
|
25
|
60
|
8
|
M 24
|
128
| ||
|
31
|
68
|
10
|
M 30
|
205
|
Heat-treated steel
- tempered hardness (350 + 80) HV 30
- phosphate-threated
- blanked not deburred
Washers DIN 6340 are mainly used for elongated holes.
Related products
DIN 6319
Spherical / Dished Washers
Steel / Stainless Steel
GN 184

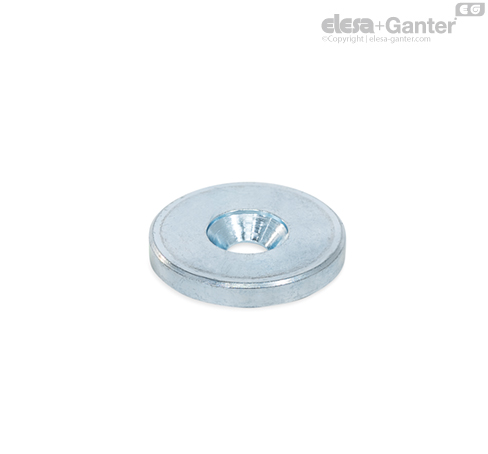

Countersunk Washers
Steel
GN 6339

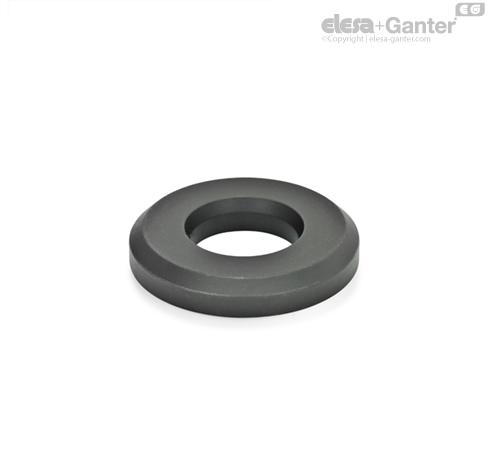

Heavy duty washers
Low type, High type
GN 6341-ST-A
Washers
Steel / Stainless Steel

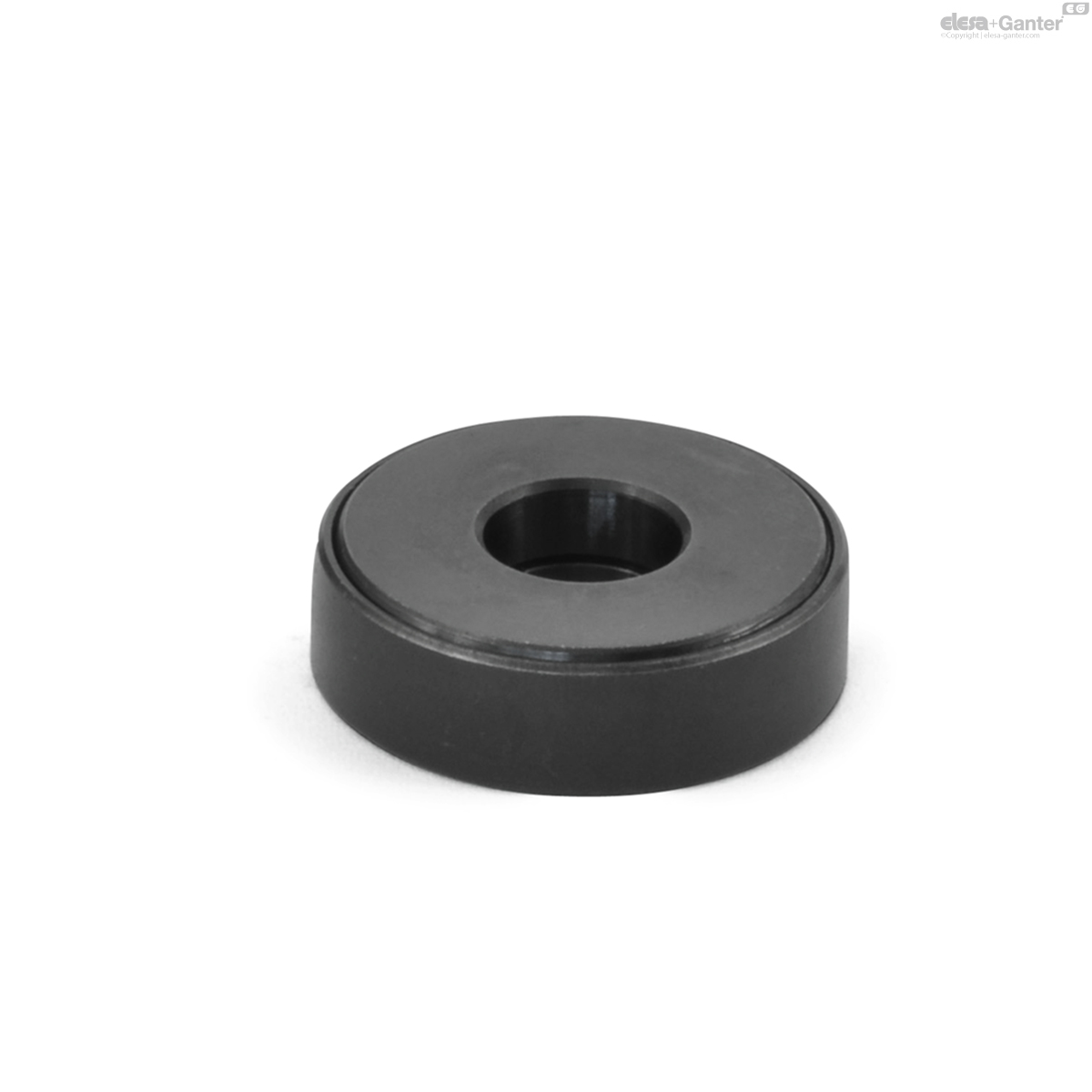

GN 6342
