GN 6335.4Hand knobs

Hand Knobs

Cast iron / Threaded bolt, Steel

  • Icons/__logo__RoHS__.png

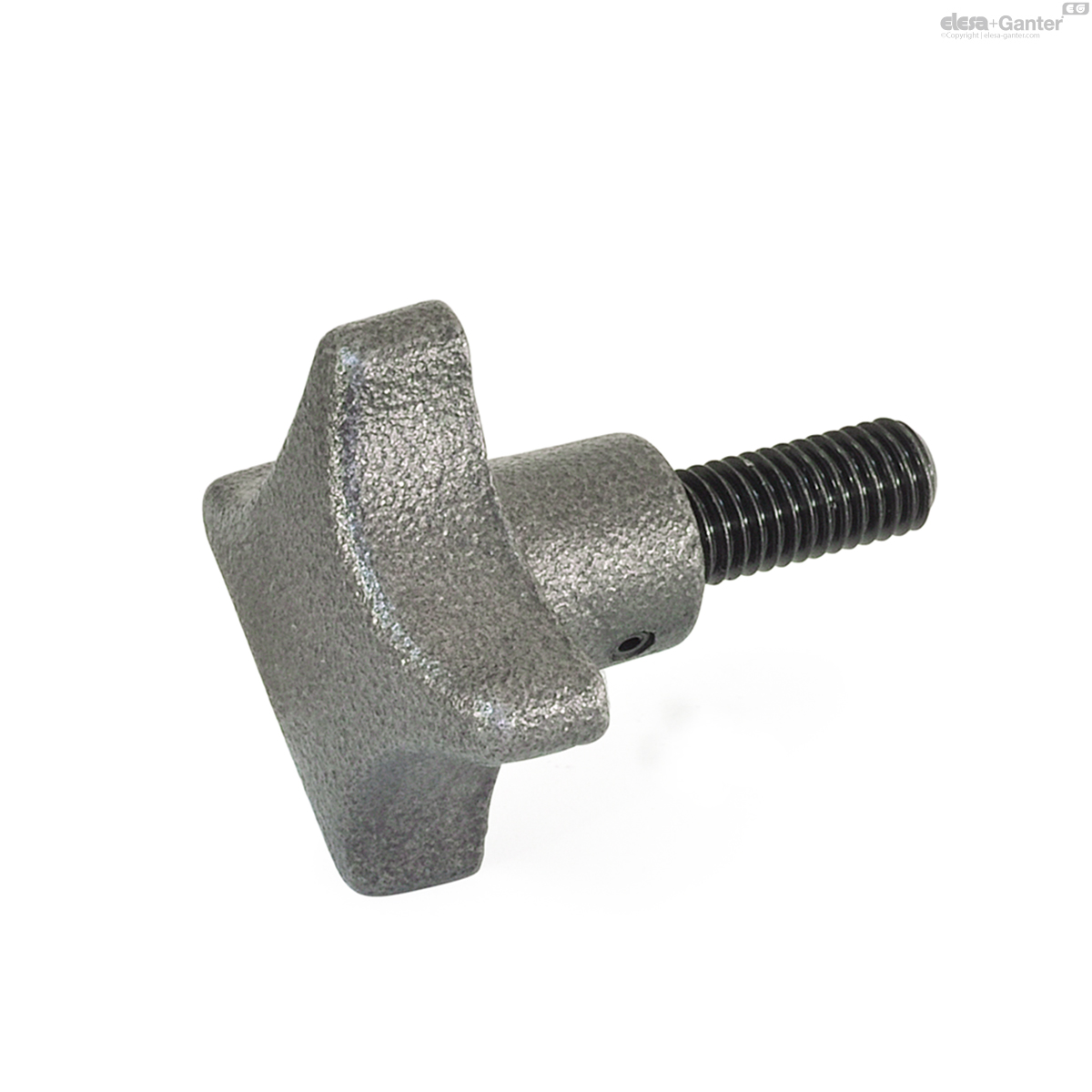

Hand knobs
Hand knobs

GN 6335.4

Catalogue

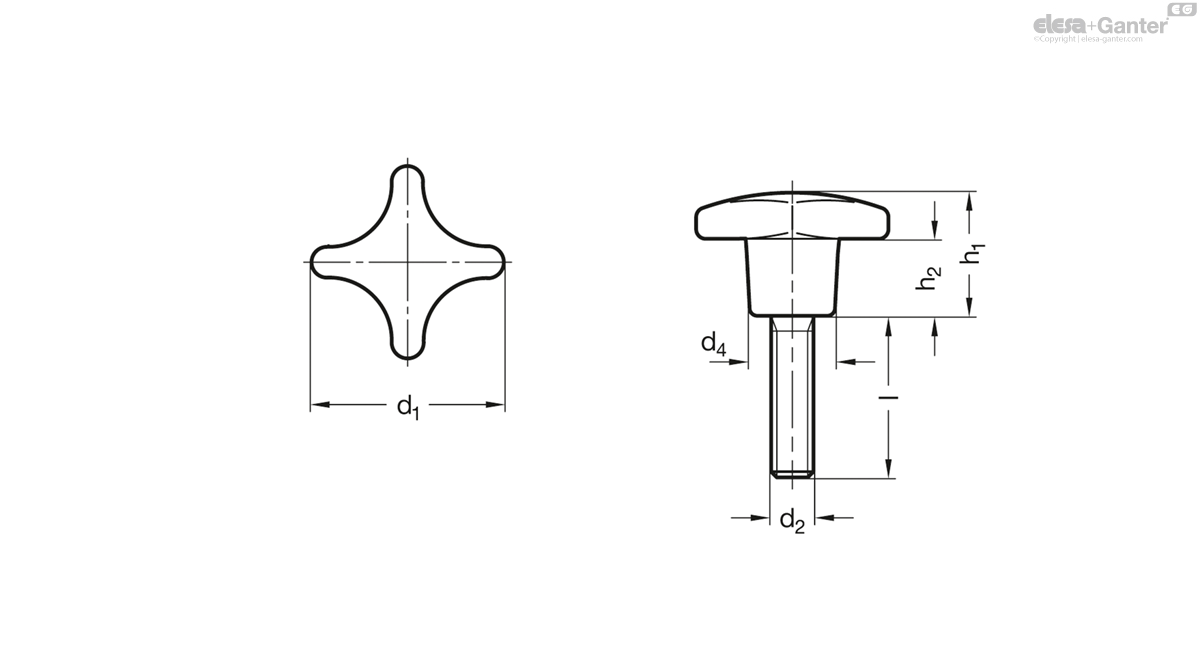

d1
d2
l ≈
d4
h1
h2
32
M 6
16
12
20
9
34
32
M 6
20
12
20
9
35
32
M 6
25
12
20
9
36
32
M 6
30
12
20
9
37
32
M 6
35
12
20
9
38
32
M 6
45
12
20
9
46
40
M 8
15
14
25
13
58
40
M 8
20
14
25
13
60
40
M 8
25
14
25
13
61
40
M 8
30
14
25
13
63
40
M 8
40
14
25
13
66
40
M 8
55
14
25
13
70
50
M 10
25
18
32
18
124
50
M 10
30
18
32
18
130
50
M 10
35
18
32
18
129
50
M 10
45
18
32
18
134
50
M 10
55
18
32
18
139
63
M 12
30
20
40
23
220
63
M 12
35
20
40
23
208
63
M 12
40
20
40
23
211
63
M 12
50
20
40
23
250
63
M 12
60
20
40
23
225
80
M 16
30
25
50
28
410
80
M 16
40
25
50
28
430
80
M 16
50
25
50
28
452
80
M 16
60
25
50
28
452
80
M 16
70
25
50
28
478

Type

Type SG: Star knob DIN 6335 cast iron (GG)

The threaded bolt is screwed in and secured by a cross-dowel.

Should clamping with the bush face be necessary, then it is recommendable to use this hand knobs.

Related products
Aluminum, Matte finish (tumbled)

GN 6335.5-AM

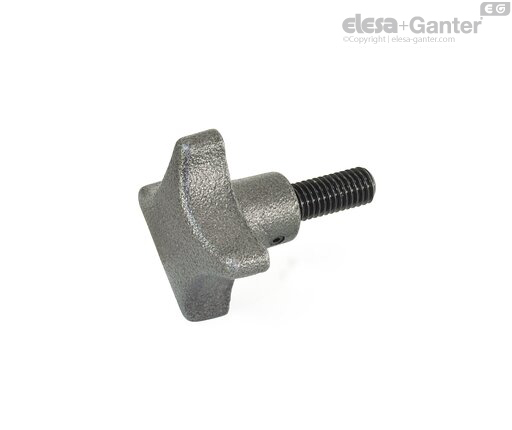

Hand Knobs Knob Cast Iron / Stainless Steel / Aluminum, Threaded Stud Stainless Steel

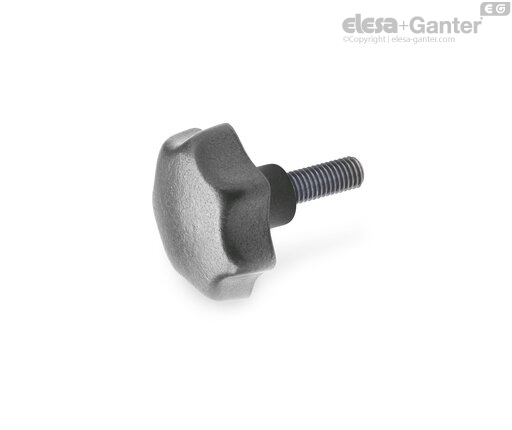

Star Knobs

GN 6336.4

Star Knobs Cast Iron, Threaded Stud Steel

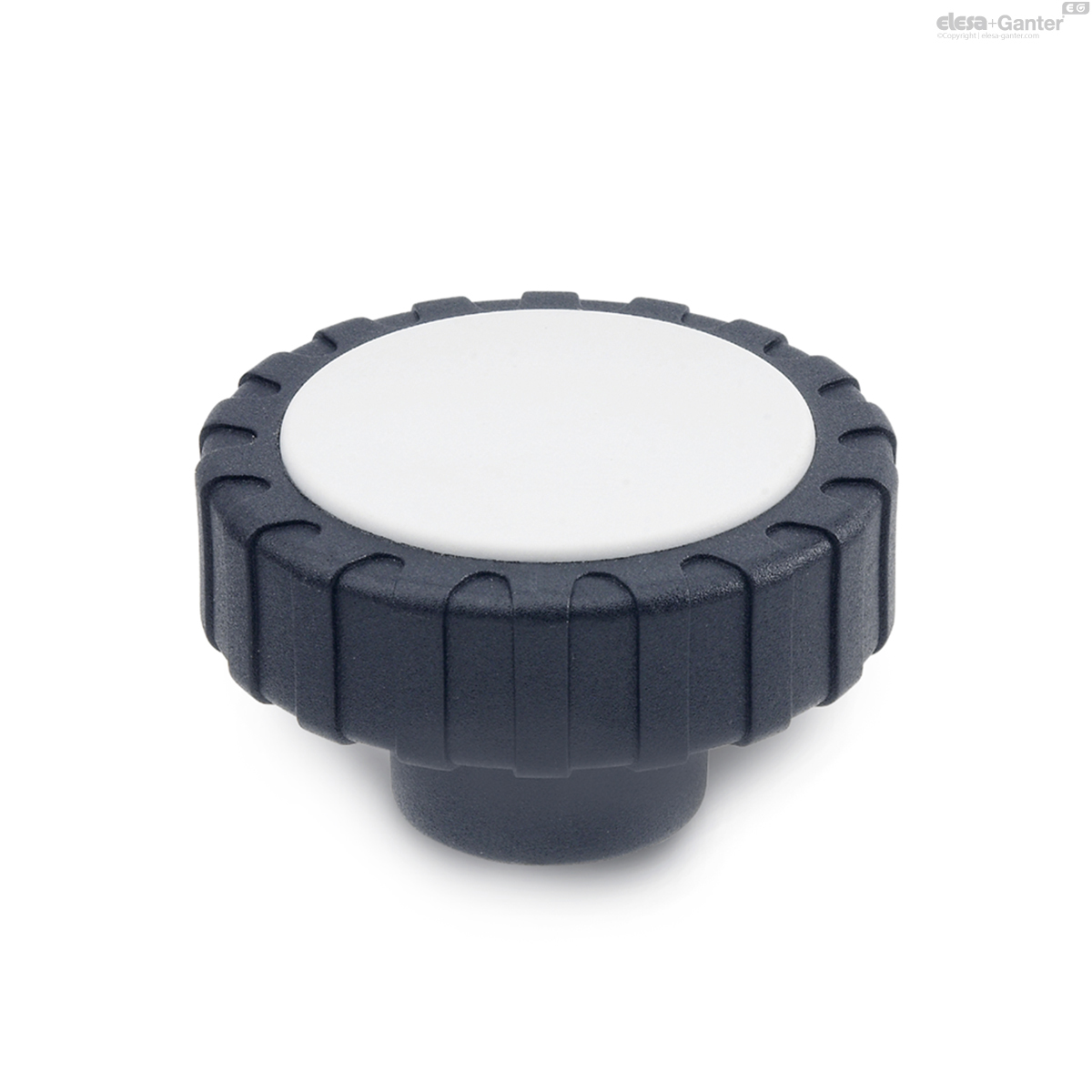

with female thread, Steel

GN 7336-ST

Knurled knobs / Knurled screws
Black-oxide steel boss, plain hole

VC.192-A

Lobe knobs Duroplast, easy cleaning

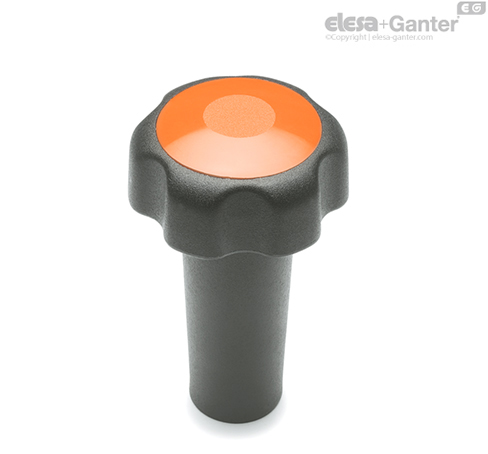

Brass boss, threaded hole
