Technical datasheet

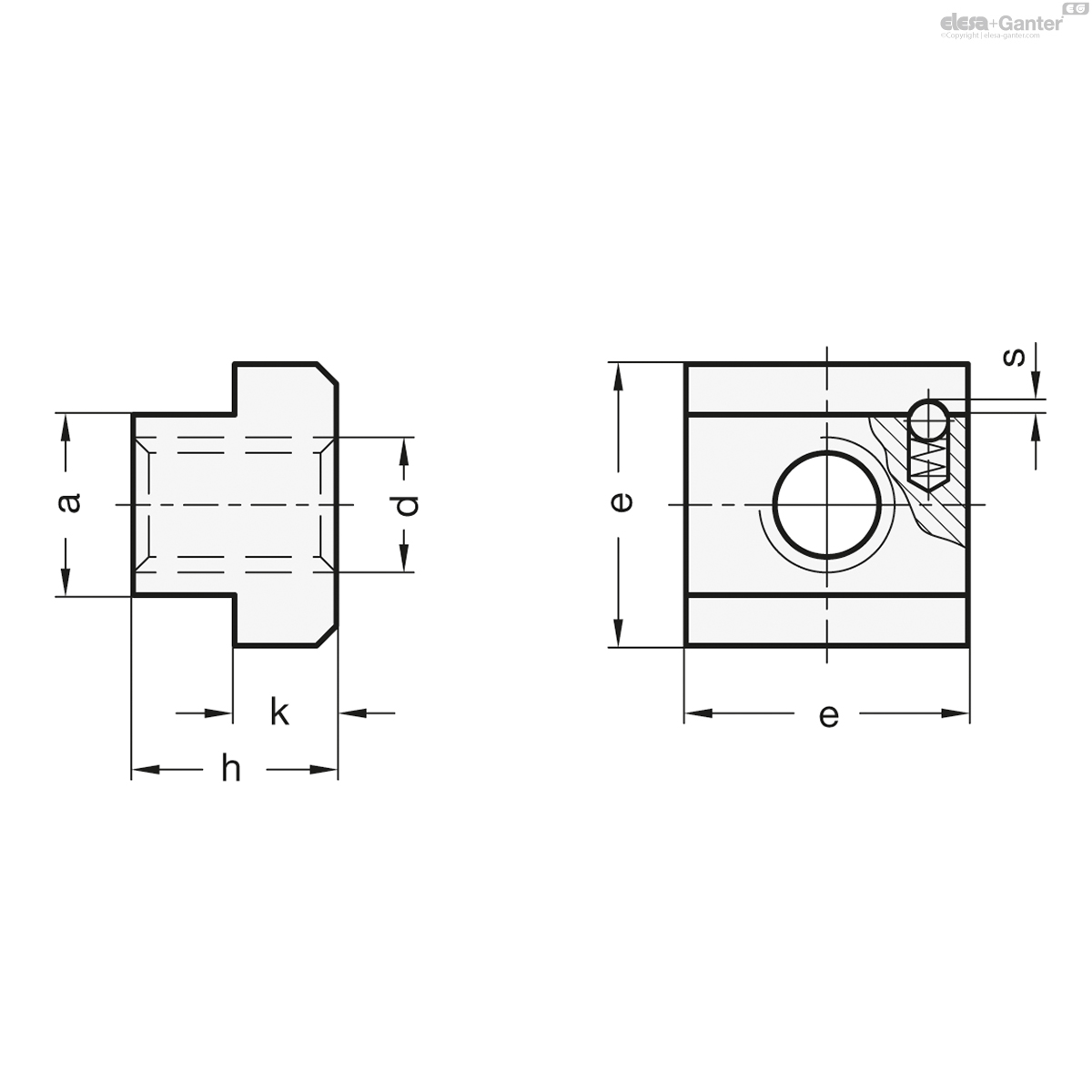

GN 508.2T-Nuts
T-Nuts
with slip proof
GN 508.2
|
Catalogue
|
a -0.3/-0.5
|
d
|
e
|
h
|
k
|
s
|
T-Slot width DIN 650
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
10
|
M 8
|
15
|
12
|
6
|
0.65
|
10
|
14
| ||
|
10
|
M 8
|
15
|
12
|
6
|
0.65
|
10
|
14
| ||
|
12
|
M 10
|
18
|
14
|
7
|
0.65
|
12
|
22
| ||
|
12
|
M 10
|
18
|
14
|
7
|
0.65
|
12
|
22
| ||
|
14
|
M 12
|
22
|
16
|
8
|
1
|
14
|
34
| ||
|
14
|
M 12
|
22
|
16
|
8
|
1
|
14
|
34
| ||
|
18
|
M 16
|
28
|
20
|
10
|
1
|
18
|
68
| ||
|
18
|
M 16
|
28
|
20
|
10
|
1
|
18
|
68
| ||
|
22
|
M 20
|
35
|
28
|
14
|
1.6
|
22
|
155
| ||
|
22
|
M 20
|
35
|
28
|
14
|
1.6
|
22
|
150
|
Heat-treated steel
Tensile strength class 8
zinc plated, blue passivated
Tensile strength class 10
blackened
T-nuts GN 508.2 are dimensionally indetical to DIN 508 -.
They are, however, fitted on the side with a spring loaded ball. This will prevent an unwanted movement of the nut, especially in a vertically mounted T-slot bed.
