508.2-18-M16-8
GN 508.2 T-Nuts
with slip proof
Eta: 1-2 weeks All sizes and variants of GN 508.2
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

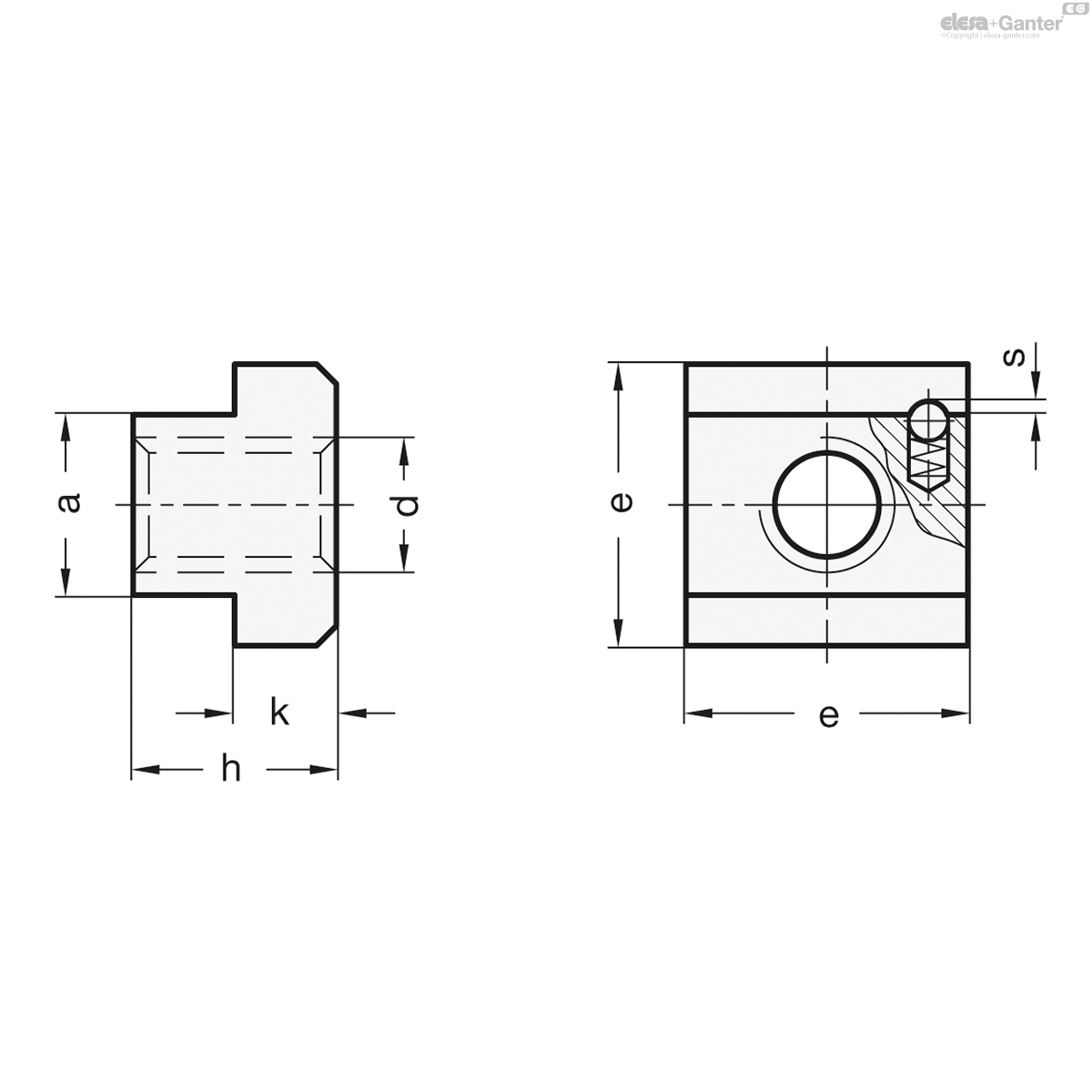

Technical data
- Catalogue
- GN 508.2-18-M16-8
- a -0.3/-0.5
- 18
- d
- M 16
- e
- 28
- h
- 20
- k
- 10
- s
- 1
- T-Slot width DIN 650
- 18
- 68
Heat-treated steel
Tensile strength class 8
zinc plated, blue passivated
Tensile strength class 10
blackened
T-nuts GN 508.2 are dimensionally indetical to DIN 508 -.
They are, however, fitted on the side with a spring loaded ball. This will prevent an unwanted movement of the nut, especially in a vertically mounted T-slot bed.
