GN 480.3Stainless Steel-Retaining rods

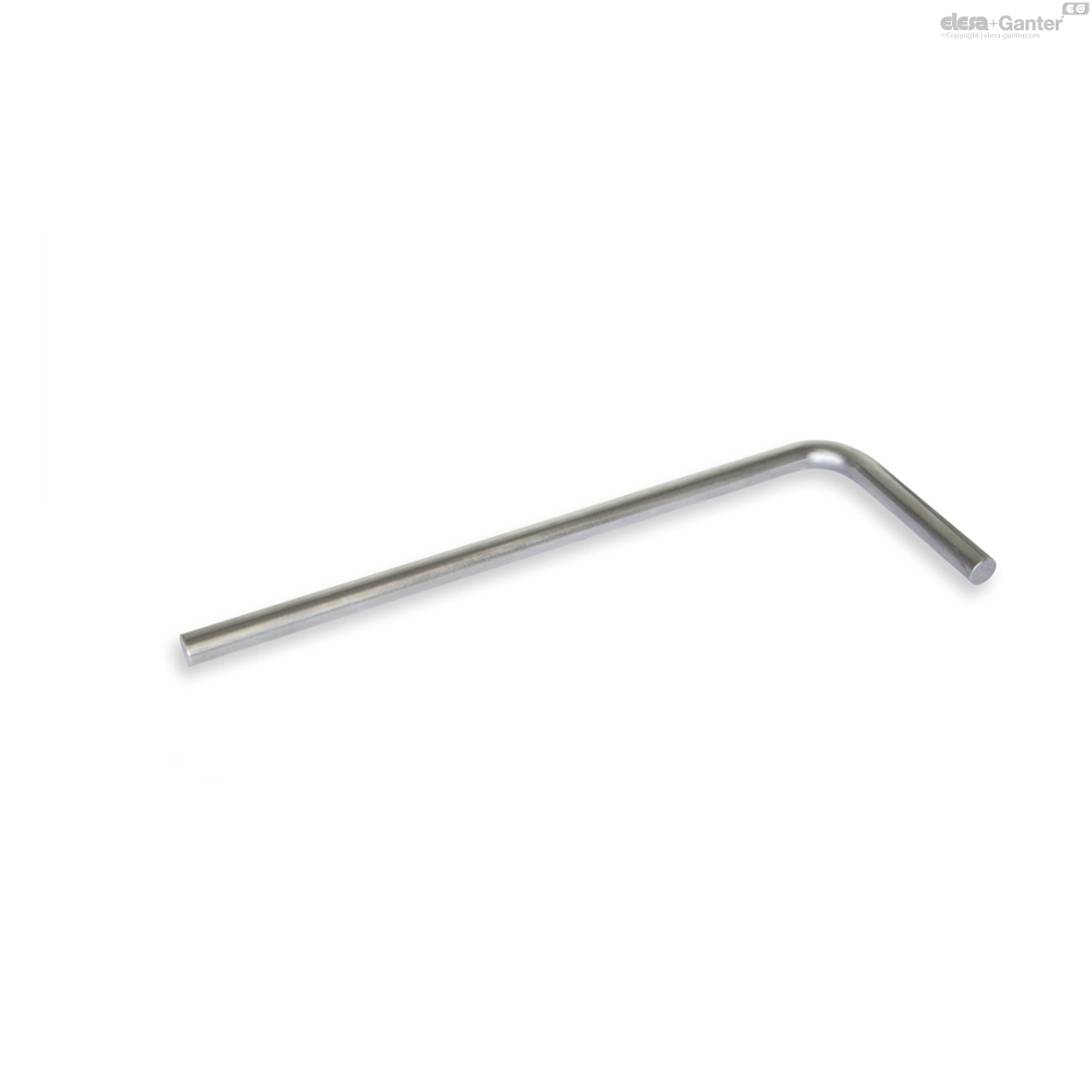

Stainless Steel-Retaining rods
for clamp mountings, angled
GN 480.3
|
Catalogue
|

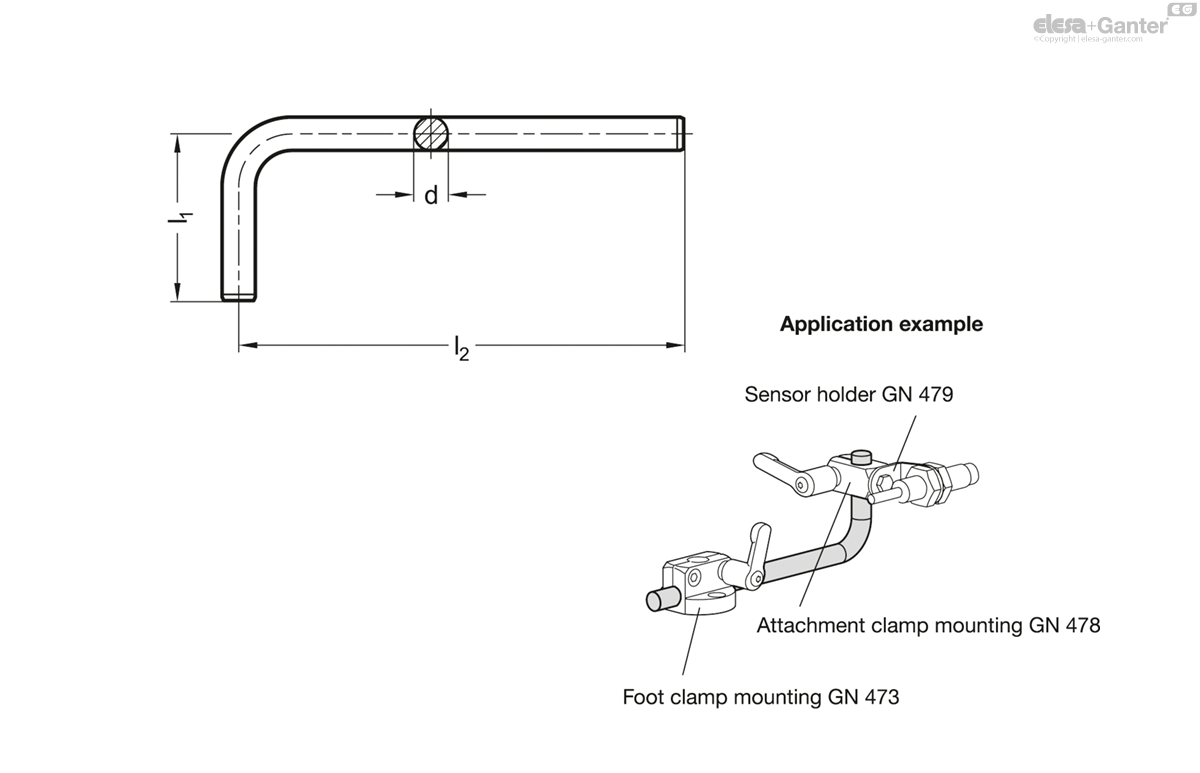

d
|
l1
|
l2
|
|
|
|---|---|---|---|---|---|
|
D 8
|
30
|
90
|
45
| ||
|
D 8
|
50
|
150
|
77
| ||
|
D 8
|
80
|
240
|
125
| ||
|
D 10
|
50
|
150
|
118
| ||
|
D 10
|
70
|
210
|
170
| ||
|
D 10
|
100
|
300
|
240
|
Stainless Steel NI
AISI 304
blank
The dimensions of GN 480.3 Stainless Steel-Retaining rods are tailored for use with clamp mountings.
The angled Stainless Steel-Retaining rods make it possible to create compact and space-saving clamp mounting structures efficiently and cost-effectively with few components.
- other dimensions for l1 and l2
