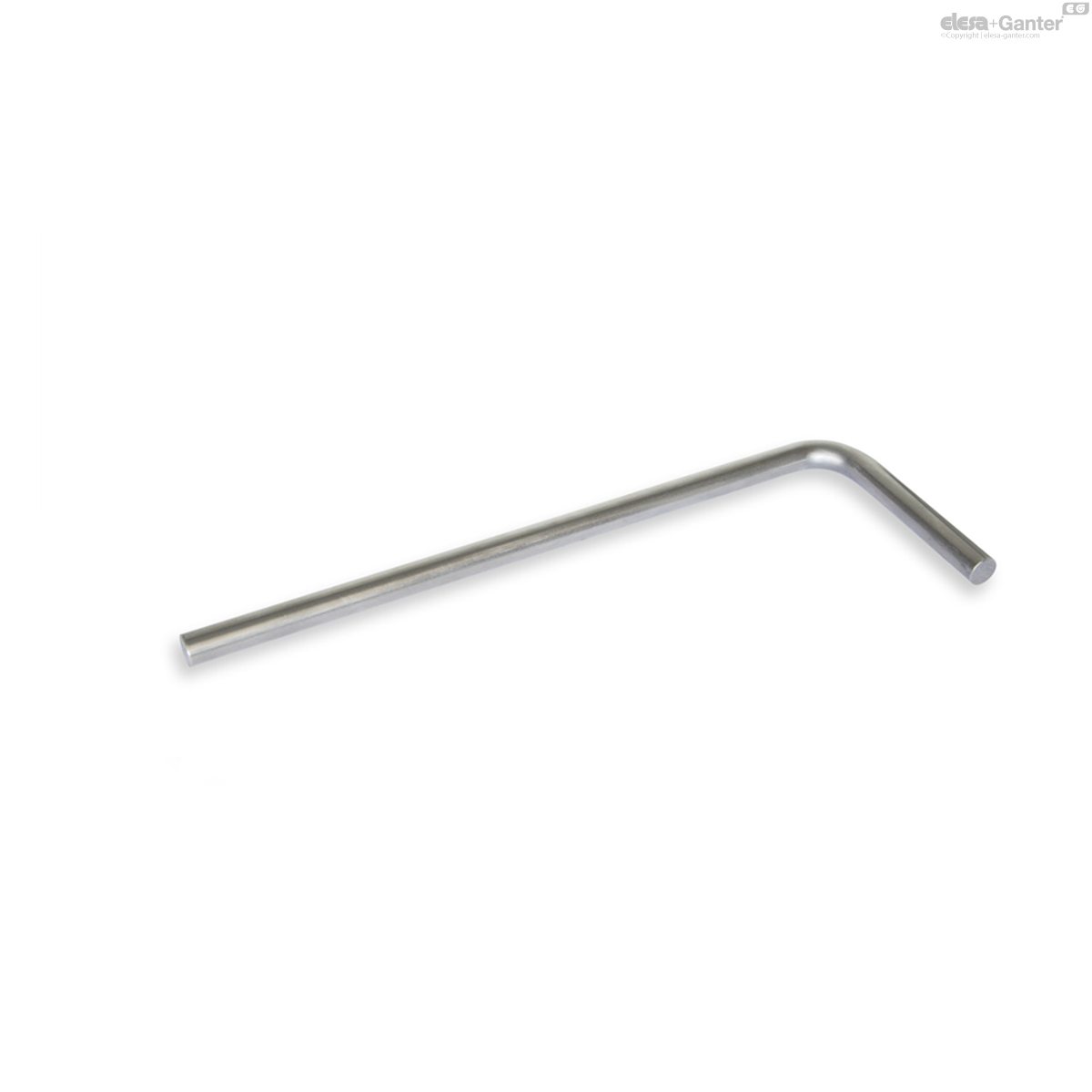

480.3-D8-50-150-NI GN 480.3 Stainless Steel-Retaining rods

480.3-D8-50-150-NI

GN 480.3 Stainless Steel-Retaining rods

for clamp mountings, angled
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 480.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 480.3-D8-50-150-NI
d
D 8
l1
50
l2
150
77

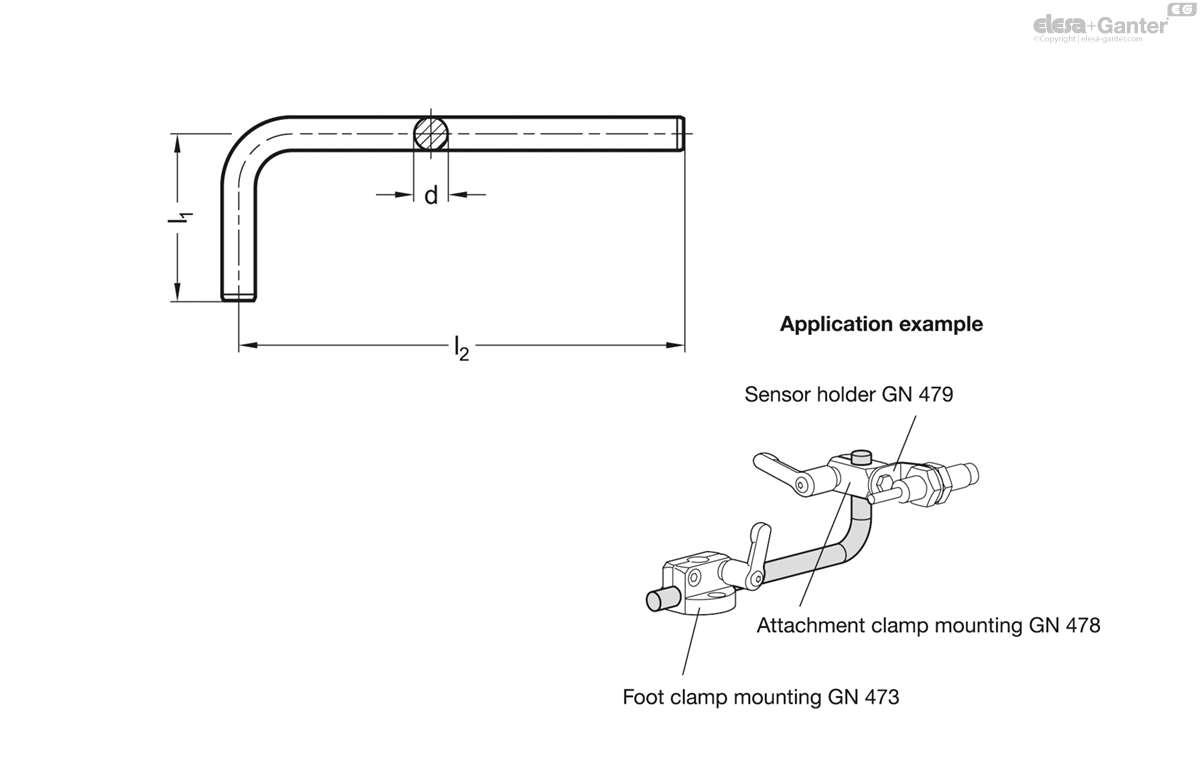

480.3-D8-50-150-NI drawing

Stainless Steel NI

AISI 304

blank

The dimensions of GN 480.3 Stainless Steel-Retaining rods are tailored for use with clamp mountings.

The angled Stainless Steel-Retaining rods make it possible to create compact and space-saving clamp mounting structures efficiently and cost-effectively with few components.

  • other dimensions for l1 and l2
