Technical datasheet

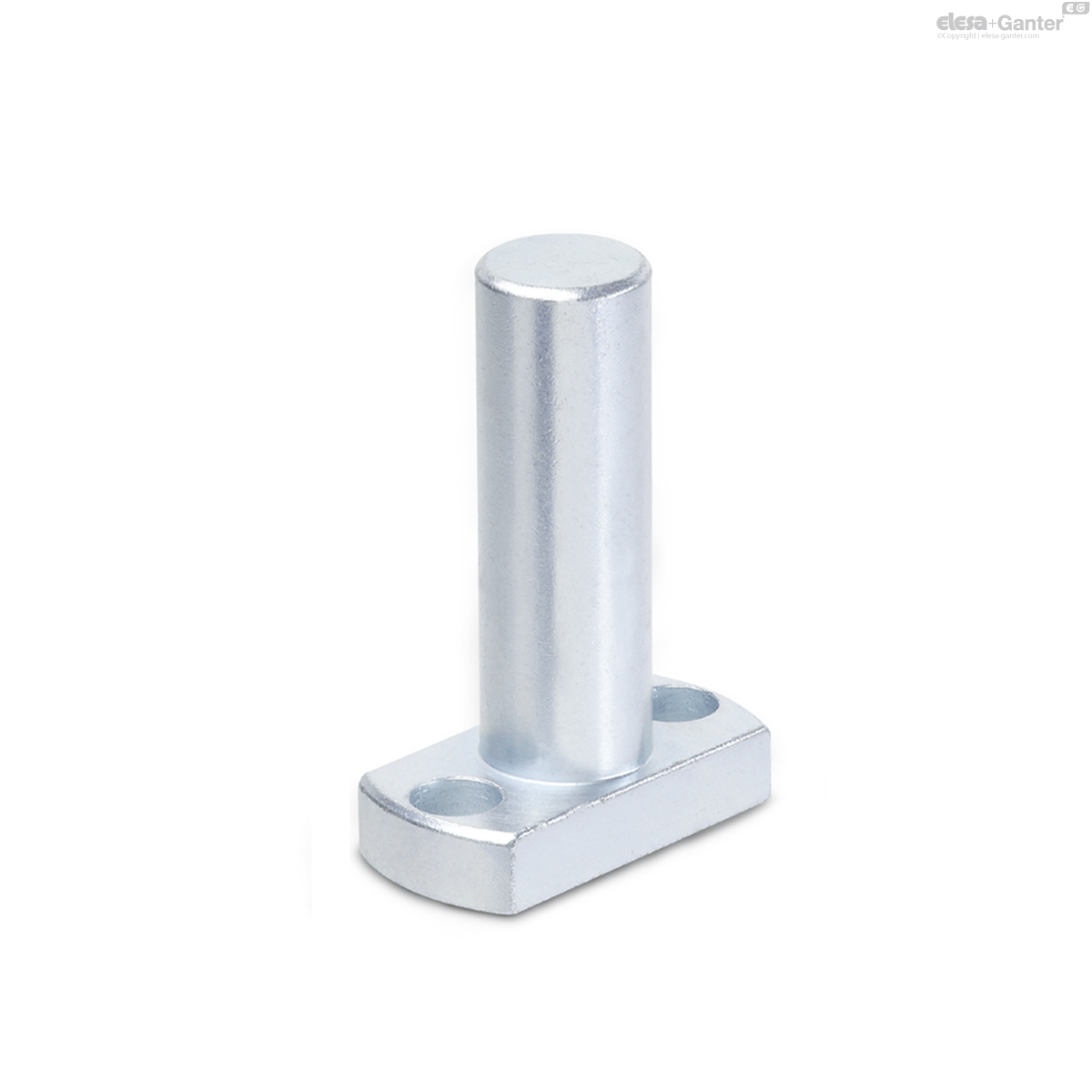

GN 480Flanged bolts
Flanged bolts
for clamp mountings
GN 480
|
Catalogue
|
d1 h9
|
l1
|
b
|
d2
|
d3
|
l2
|
l3
|
m
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
8
|
18
|
14
|
31.5
|
M 4
|
6
|
2
|
22
|
23
| ||
|
8
|
32
|
14
|
31.5
|
M 4
|
6
|
2
|
22
|
40
| ||
|
10
|
21
|
16
|
38
|
M 5
|
8
|
2.5
|
27
|
43
| ||
|
10
|
37
|
16
|
38
|
M 5
|
8
|
2.5
|
27
|
52
| ||
|
12
|
22
|
16
|
38
|
M 5
|
8
|
2.5
|
27
|
49
| ||
|
12
|
39
|
16
|
38
|
M 5
|
8
|
2.5
|
27
|
64
| ||
|
15
|
27.5
|
20
|
45
|
M 6
|
10
|
4
|
32
|
94
| ||
|
15
|
47.5
|
20
|
45
|
M 6
|
10
|
4
|
32
|
122
| ||
|
16
|
28
|
20
|
45
|
M 6
|
10
|
4
|
32
|
100
| ||
|
16
|
49
|
20
|
45
|
M 6
|
10
|
4
|
32
|
133
| ||
|
20
|
35
|
25
|
50
|
M 6
|
10
|
4
|
36
|
166
| ||
|
20
|
60
|
25
|
50
|
M 6
|
10
|
4
|
36
|
220
|
Steel zinc plated, blue passivated
GN 480 Flanged bolts are used in connection with clamp mountings, as foot or as connecting element, e.g. for adjustments in width or height.
With their low flange height, they provide an alternative for the foot clamp mounting GN 473 in applications where clamping is required at low height above the clamping surface.
The bore distance m of the flanged bolts GN 480 is matched with the clamp mountings GN 473and GN 477 as well as with retaining magnets GN 51.6.
