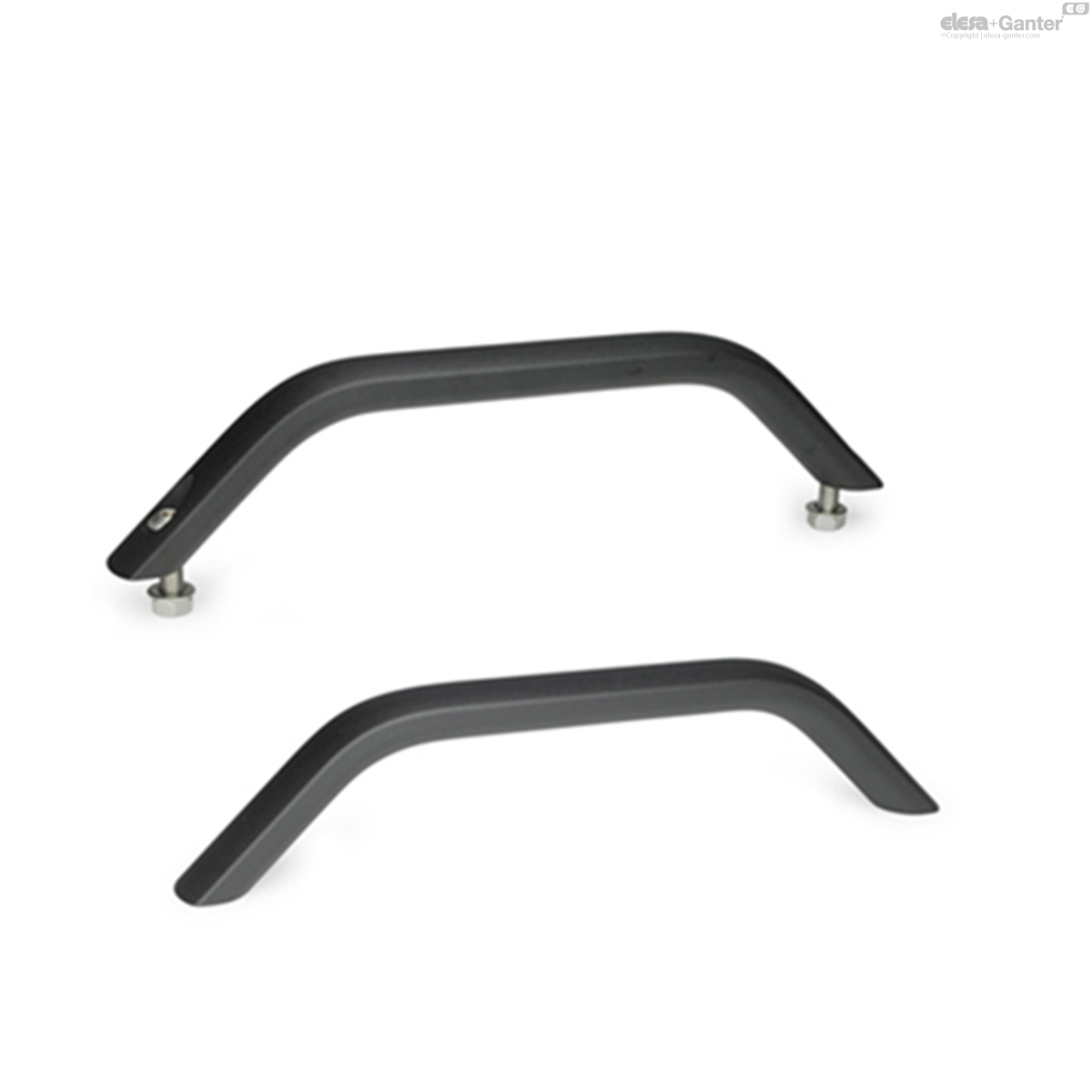

GN 428Cabinet U-Handles

Cabinet U-Handles — SW - Black

Aluminum

  • Icons/__logo__RoHS__.png
Cabinet U-Handles
Cabinet U-Handles
SW - RAL 9004
EL - Anodized, natural color
SR - RAL 9006

GN 428

Catalogue
b
l1
a
d
h1
h2
l2
l3
l4
t
28
200
18
M 8
63
-
240
-
-
10
340
28
250
18
M 8
63
-
290
-
-
10
360
28
300
18
M 8
63
-
340
-
-
10
400
28
400
18
M 8
63
-
440
-
-
10
500
36
300
26
M 10
71
-
355
-
-
14
750
36
400
26
M 10
71
-
455
-
-
14
940
36
500
26
M 10
71
-
555
-
-
14
1200
36
600
26
M 10
71
-
655
-
-
14
1450
36
800
26
M 10
71
-
855
-
-
14
1900
28
200
18
M 8
63
11.8
240
30
10
-
345
28
250
18
M 8
63
11.8
290
30
10
-
365
28
300
18
M 8
63
11.8
340
30
10
-
410
28
400
18
M 8
63
11.8
440
30
10
-
520
36
300
26
M 10
71
16.6
355
40
13
-
770
36
400
26
M 10
71
16.6
455
40
13
-
960
36
500
26
M 10
71
16.6
555
40
13
-
1230
36
600
26
M 10
71
16.6
655
40
13
-
1480
36
800
26
M 10
71
16.6
855
40
13
-
1930
  • Icons/__logo__IF2018__.png
  • Icons/__logo__reddot__.png
  • Icons/__logo__GermanDesignAward__.png

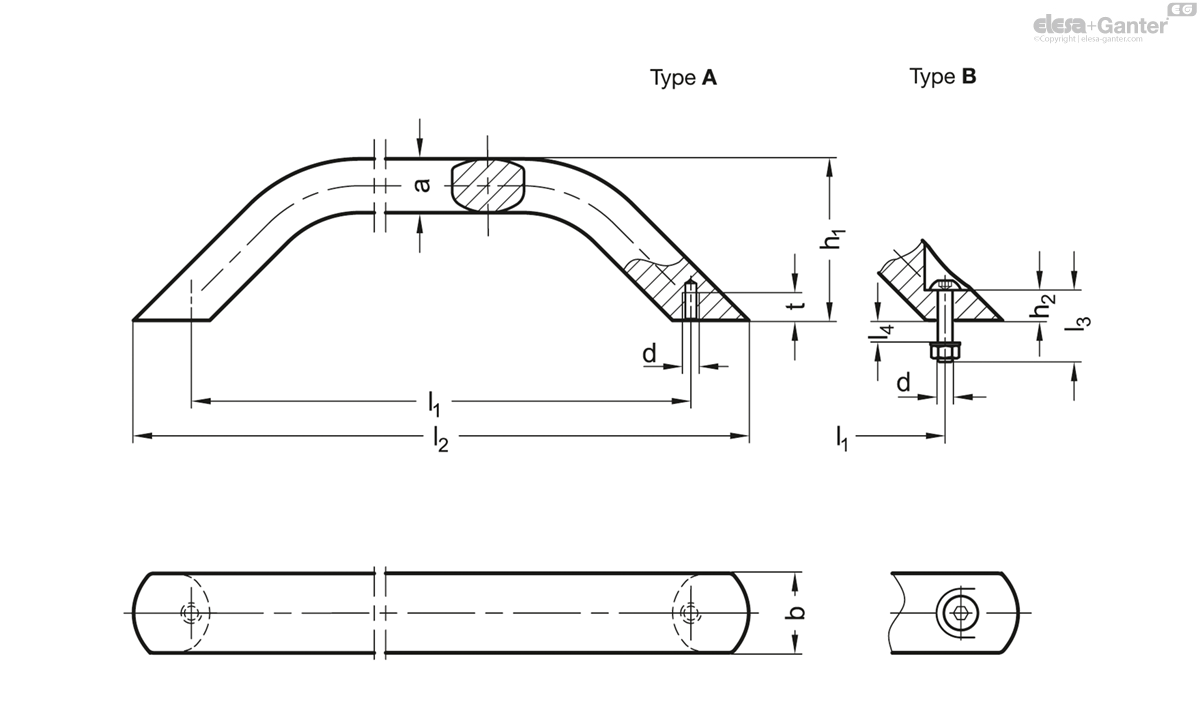

Types

  • Type A: Mounting from the back (threaded blind bore)
  • Type B: Mounting from the operator's side

Aluminium AL

  • plastic coated, black RAL 9005, textured finish SW
  • plastic coated, silver RAL 9006, textured finish SR
  • anodized, natural colour EL

Type B

  • Lens screws ISO 7380
  • Hexagon nuts ISO 4032
  • Washers DIN 125

Stainless Steel AISI 304

Cabinet 'U' handles GN 428 are produced from profiled aluminum extrusions.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

In type B lens screws, hexagon nuts and washers are included parts of the order.

  • other finishes
Related products

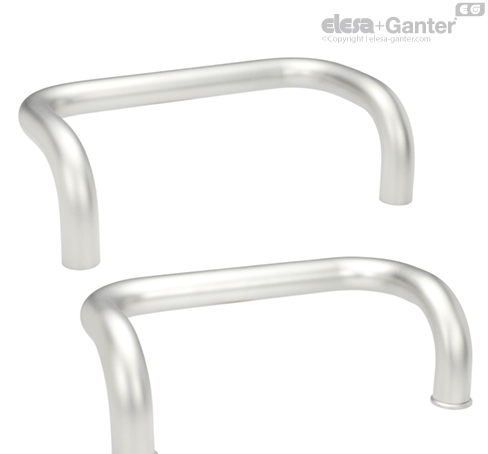

Mounting from the back (threaded blind bore)
