GN 374Flat Springs

Flat Springs

Steel, Accessories for Scaling Sets

  • Icons/__logo__RoHS__.png
pdf Other documents
Flat Springs
Flat Springs

GN 374

Catalogue

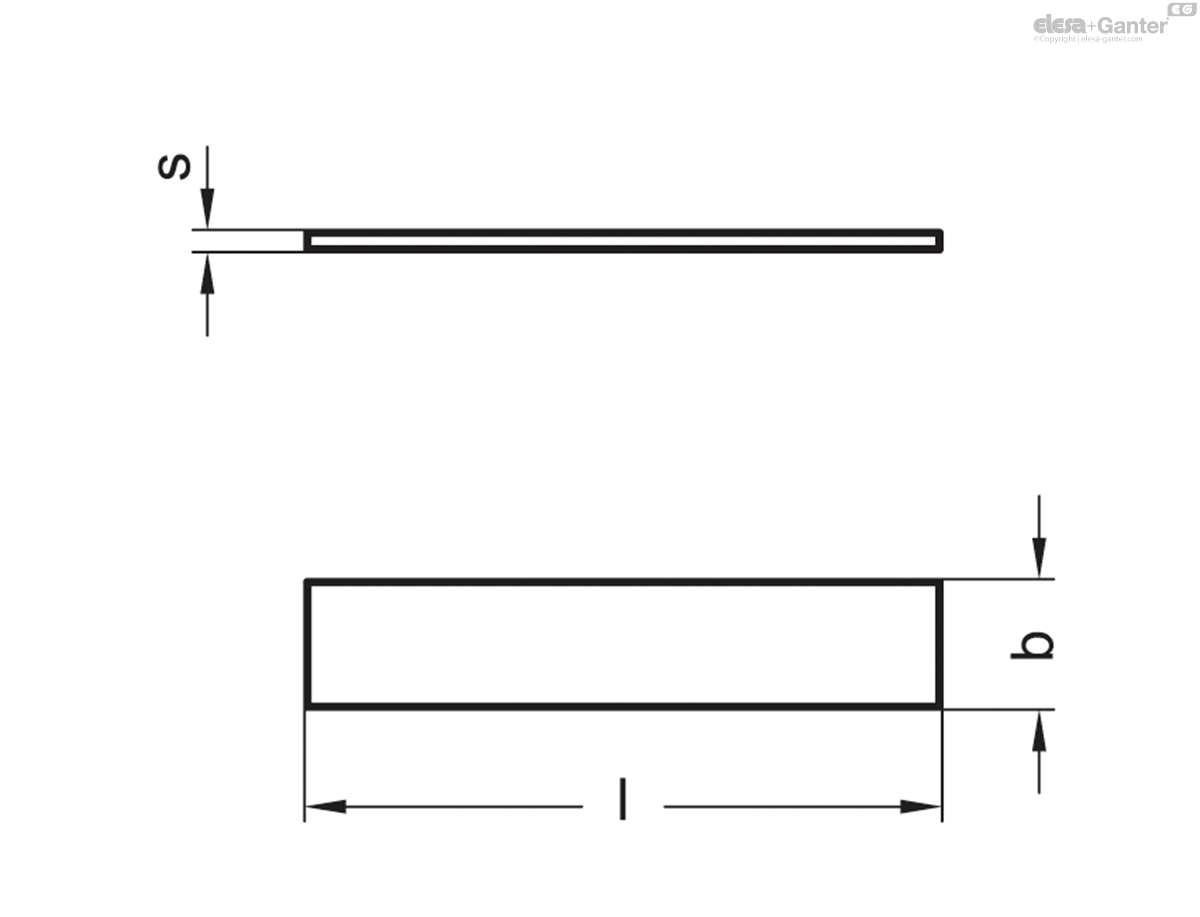

s
b
l
0.3
10
21
1
0.4
10
29
1
0.6
10
45
2
0.8
10
60
4

Steel

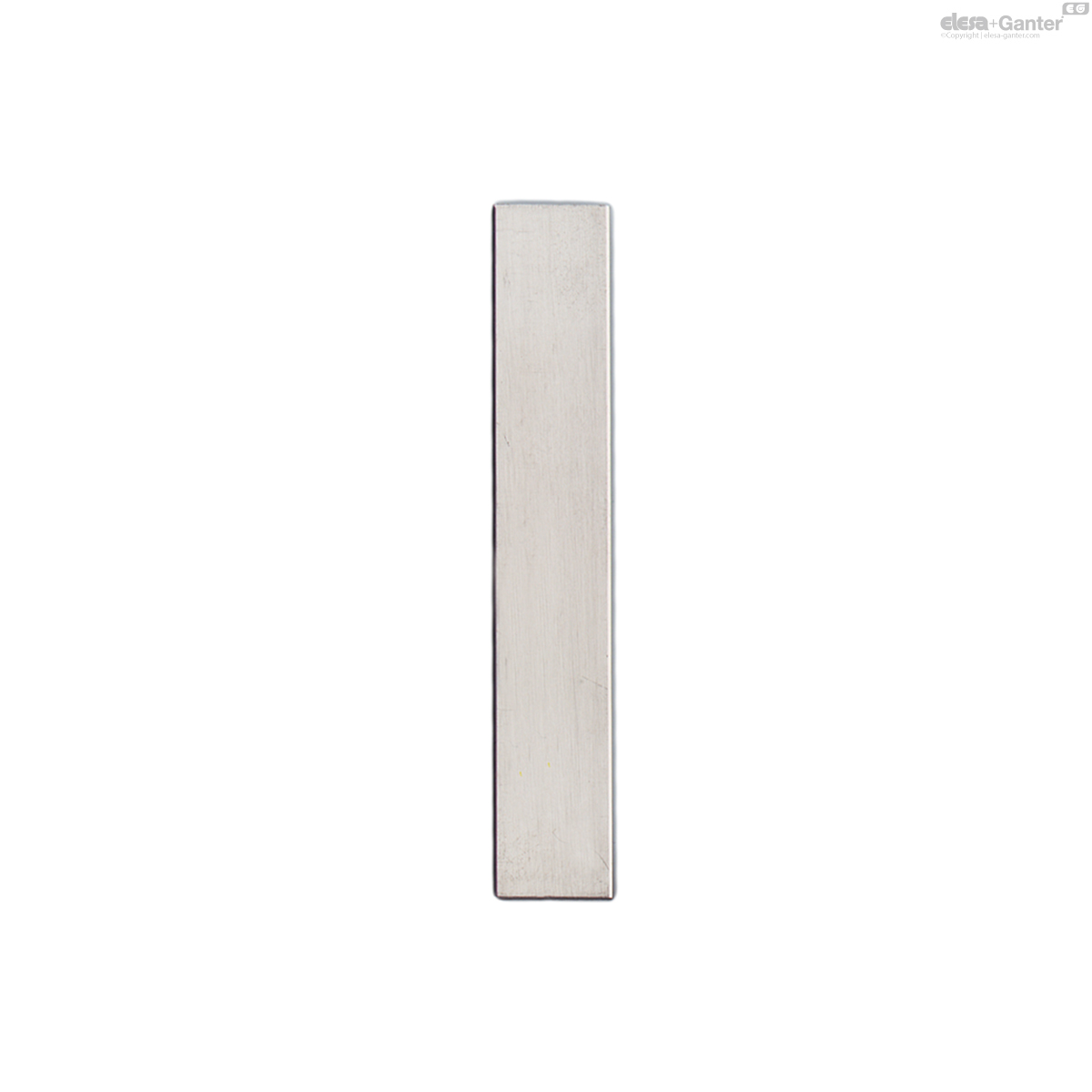

The flat springs GN 374 are a perfect and virtually non-wearing connecting link between scale ring GN 264 and spindle or collar bushing GN 268. When adjusting the spindle, they ensure that the scale ring is safely driven without impairing the setting options of the ring when the shaft is at rest.

Related products
Plain

F.N

Flanges for graduations for IZN.381 control knobs

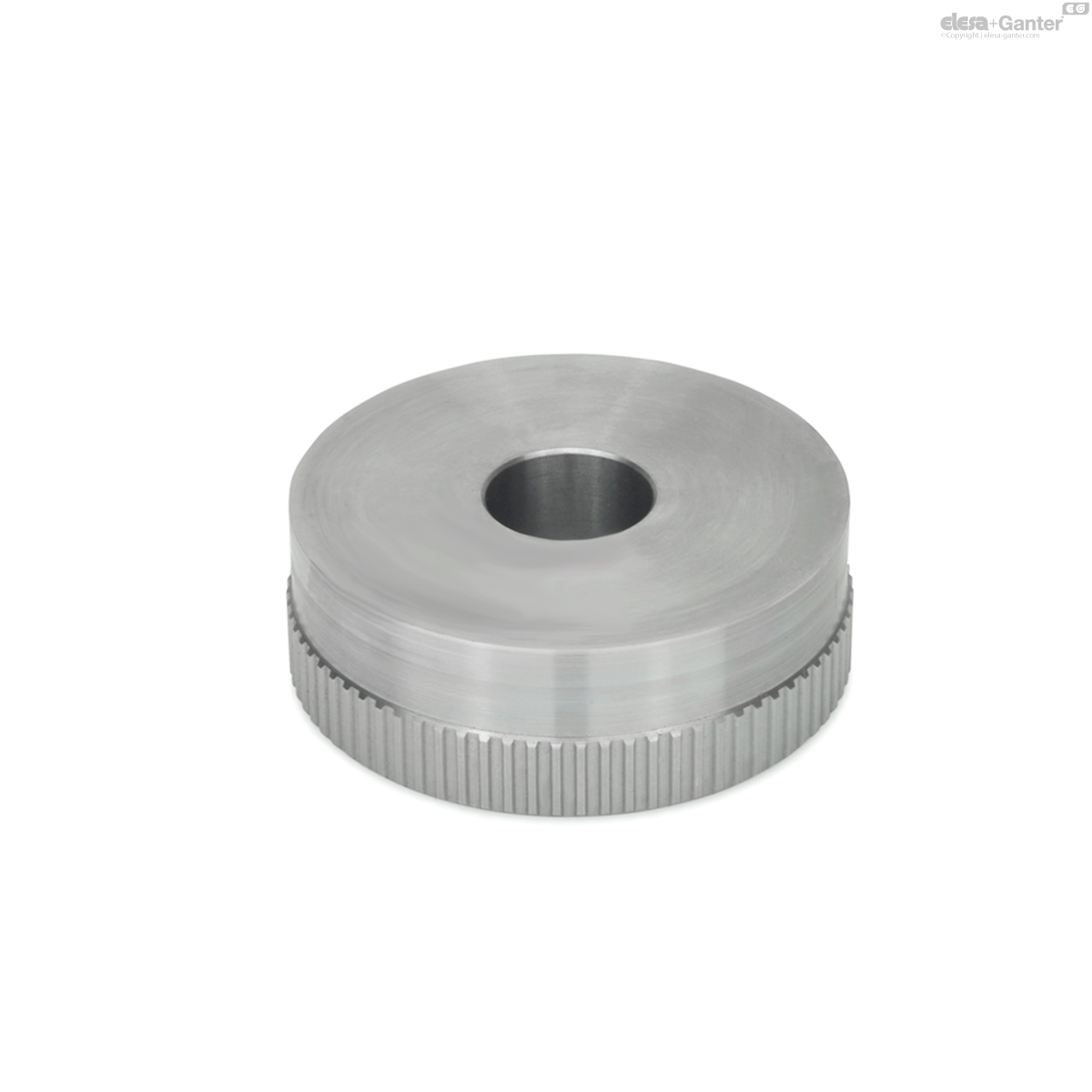

Plain

GN 164

Scale Rings Steel
Scale Rings

GN 264

Scale Rings Steel, Matte Chrome Plated, Accessories for Scaling Sets

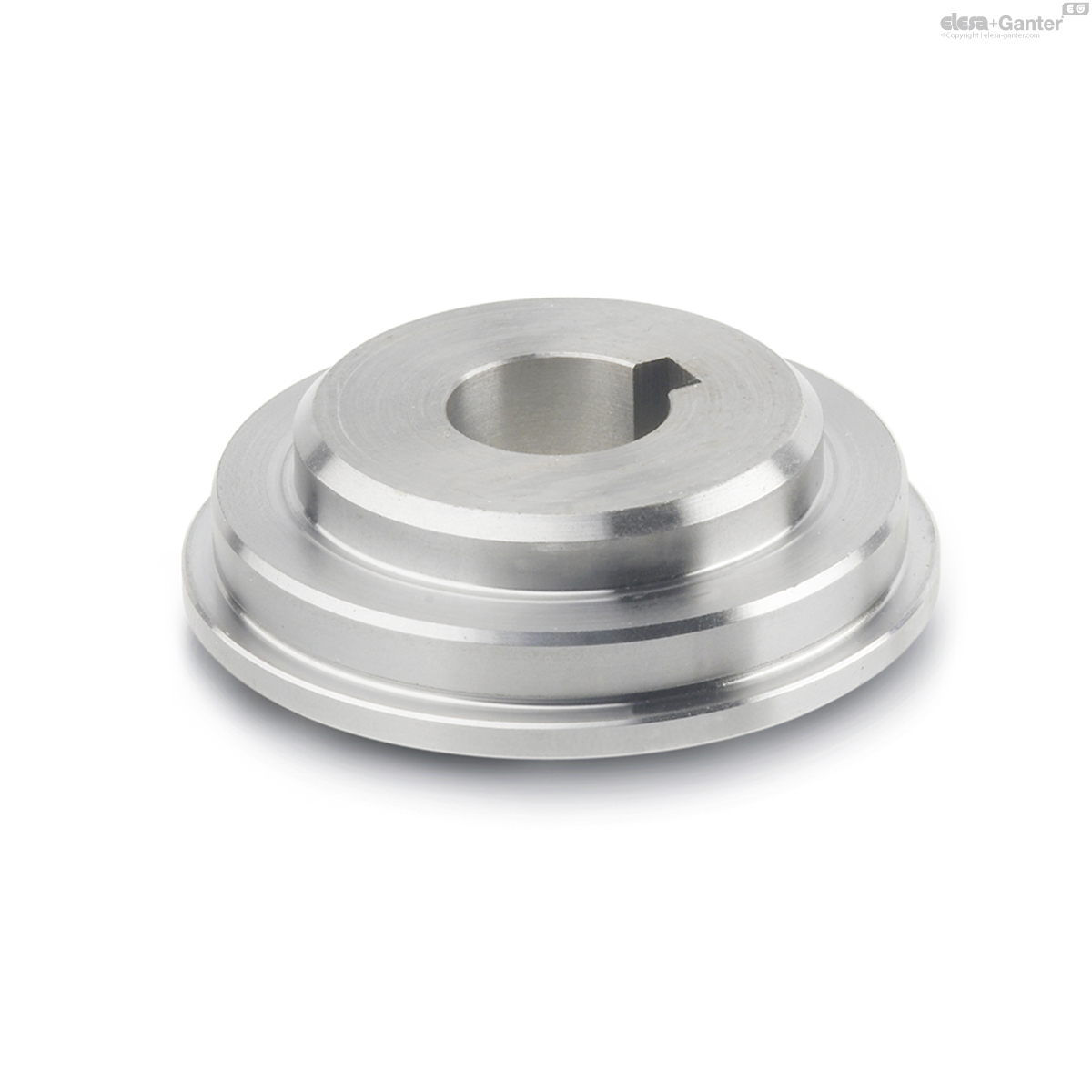

Collar Bushings

GN 268

Collar Bushings Steel, Accessories for Scaling Sets

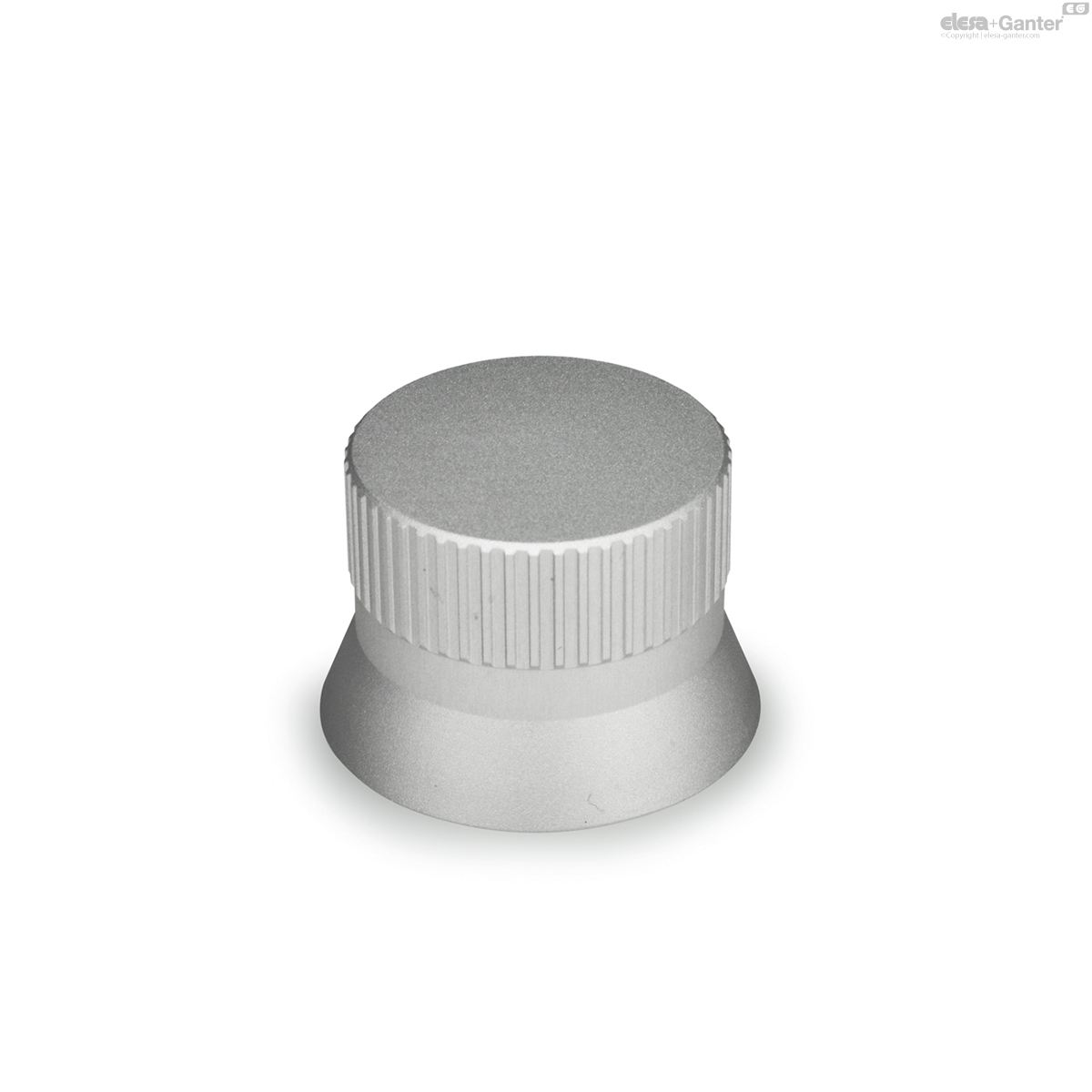

Neutral

GN 723.4-N

Control Knobs Aluminum

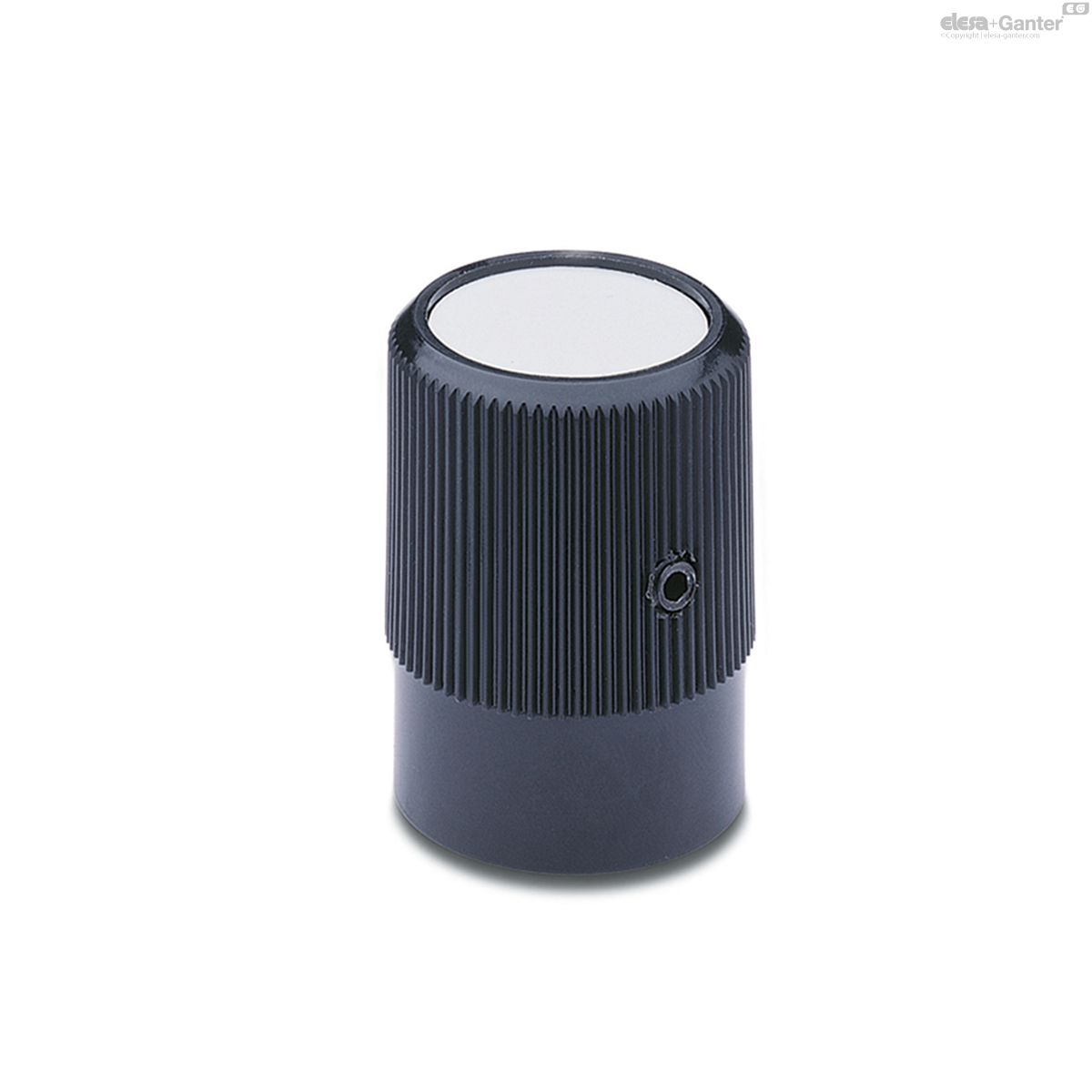

Plain

IZP.

Knurled control knobs Technopolymer

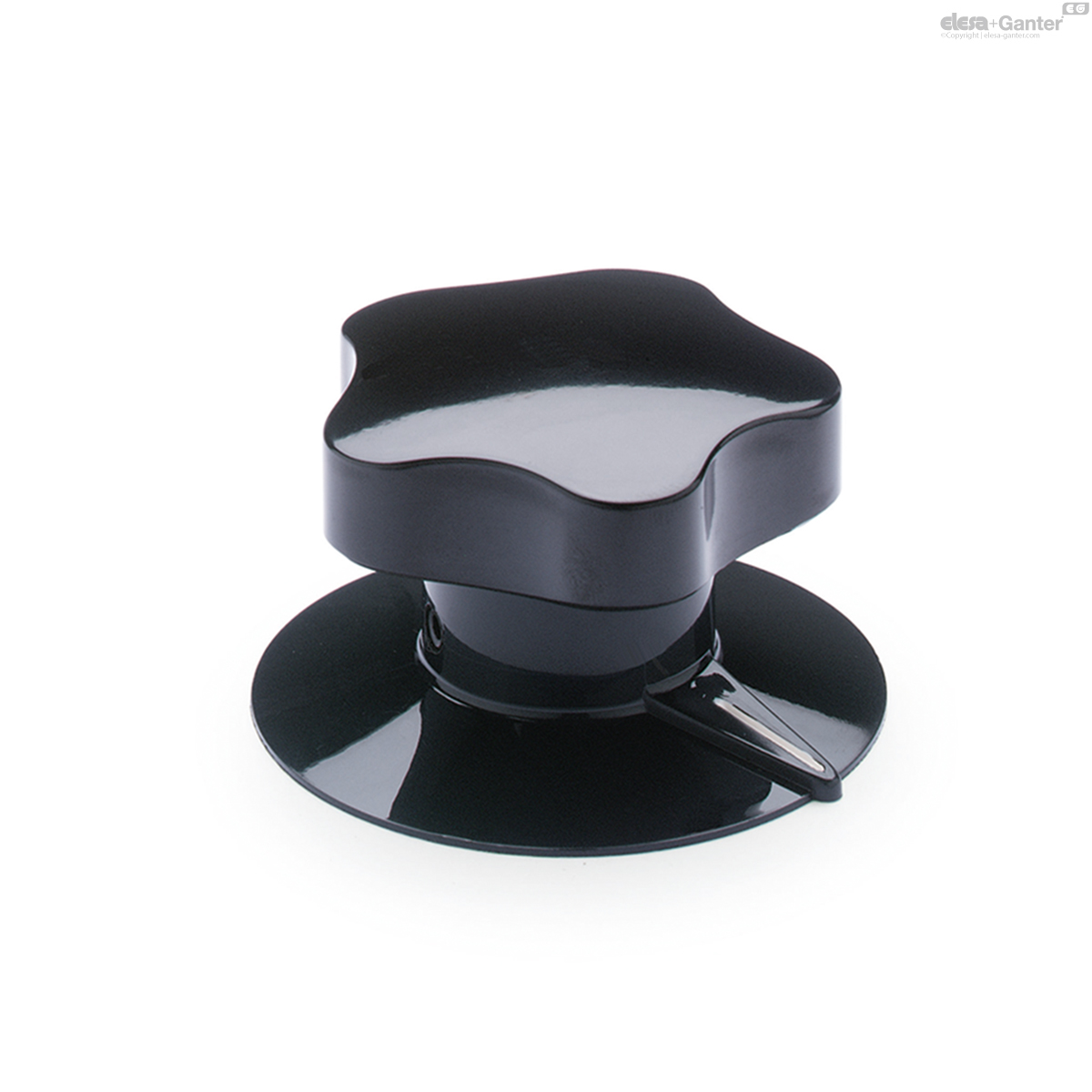

Brass boss, plain blind hole
