374-0,8-10 GN 374 Flat Springs

374-0,8-10

GN 374 Flat Springs

Steel, Accessories for Scaling Sets
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 374

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 374-0,8-10
s
0.8
b
10
l
60
4

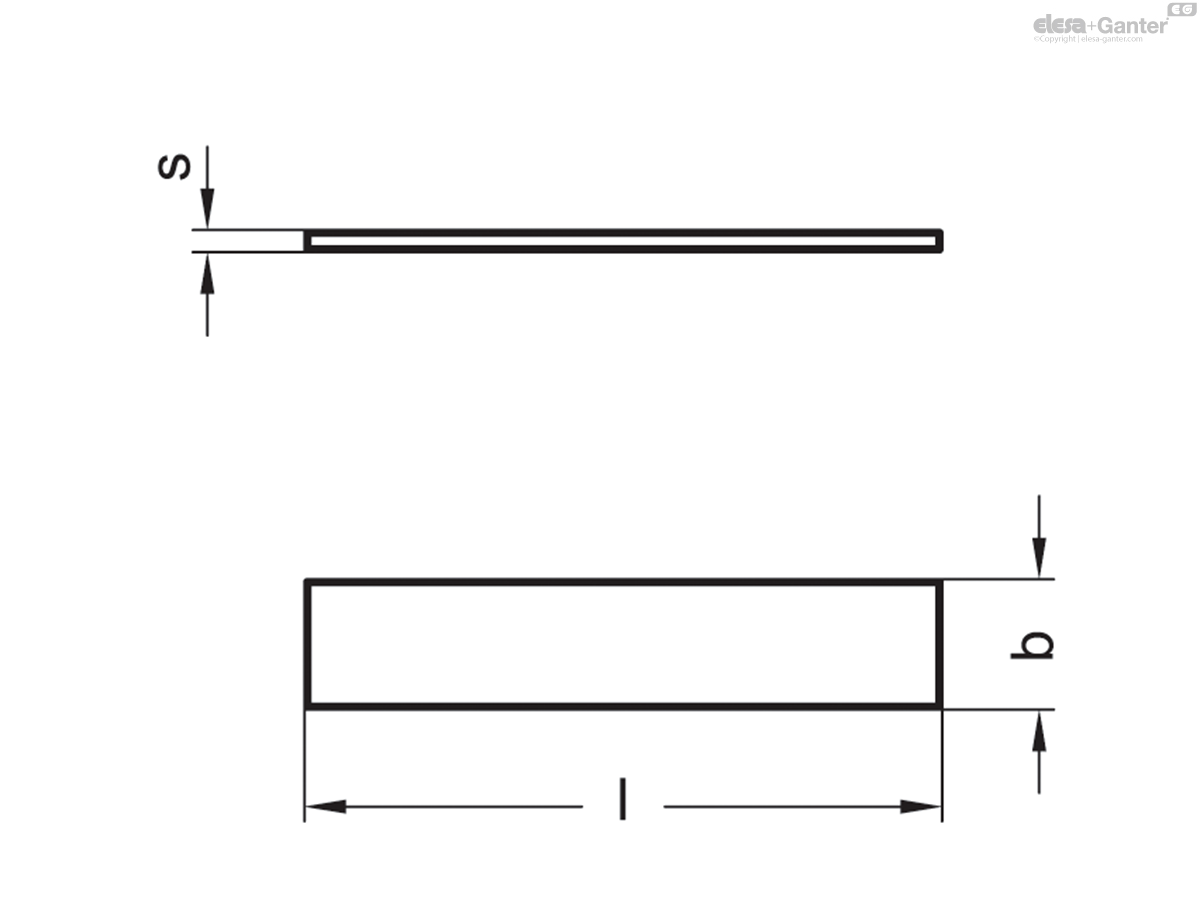

374-0,8-10 drawing

Steel

The flat springs GN 374 are a perfect and virtually non-wearing connecting link between scale ring GN 264 and spindle or collar bushing GN 268. When adjusting the spindle, they ensure that the scale ring is safely driven without impairing the setting options of the ring when the shaft is at rest.
