Technical datasheet

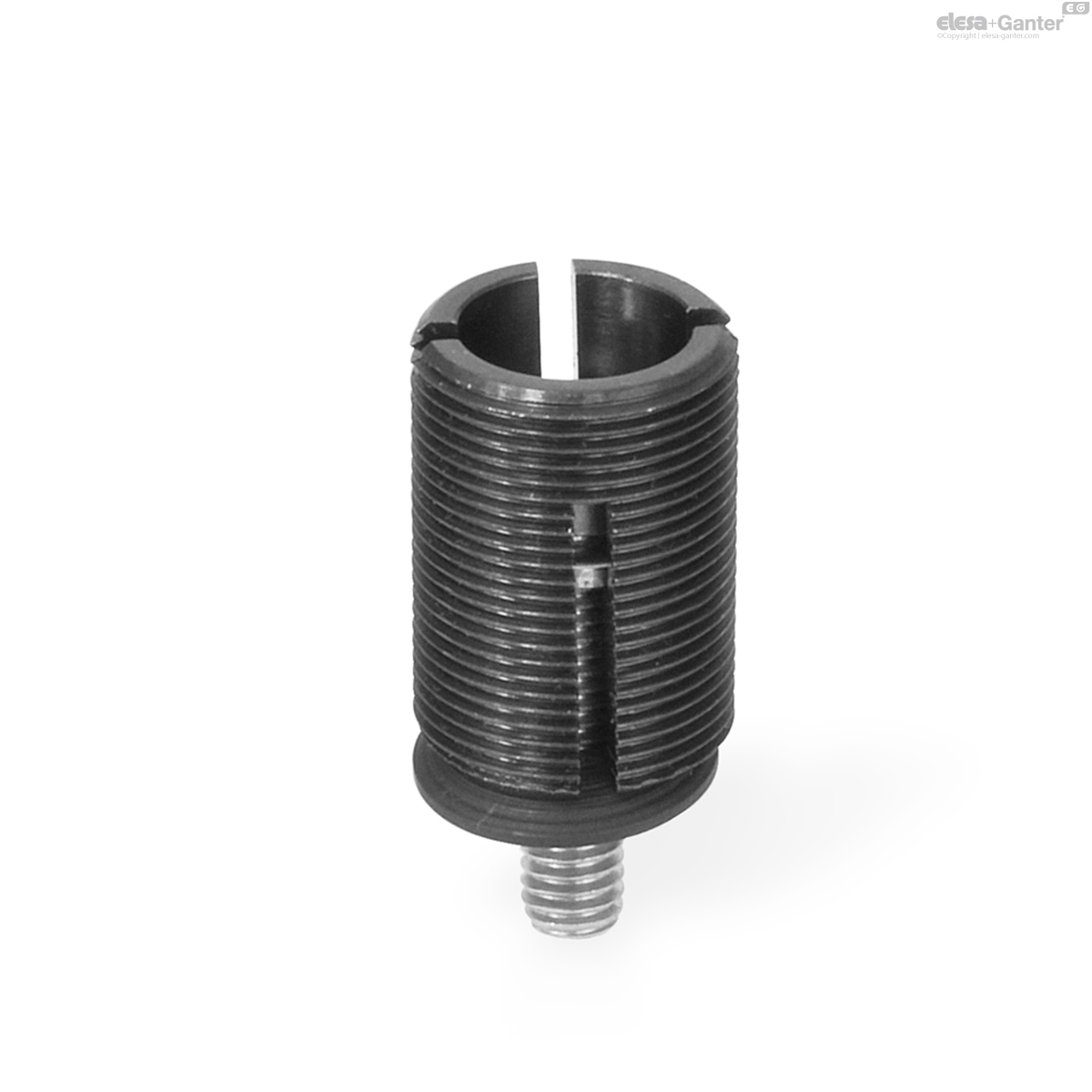

GN 350.2-STLeveling Sets
Steel
Steel / Stainless Steel, with Spherical Washer, without Locknut
GN 350.2
|
Catalogue
|
d1
|
d2
|
h1
|
d3
|
h2
|
h3 Adjustable range
|
For screw
|
Static load F
in kN F1 |
Static load F
in kN F2 |
Code no. for
C-Spanner |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 350.2-25-6,6-22-ST
|
25
|
6.6
|
22
|
M 15 x 1
|
26
|
4
|
M 6
|
40
|
DIN 1810-A25-28
|
DIN 1810-A25-28
|
60
|
|
GN 350.2-25-6,6-35-ST
|
25
|
6.6
|
35
|
M 15 x 1
|
50
|
15
|
M 6
|
40
|
DIN 1810-A25-28
|
DIN 1810-A25-28
|
100
|
|
GN 350.2-32-6,6-26-ST
|
32
|
6.6
|
26
|
M 20 x 1
|
31
|
5
|
M 6
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
132
|
|
GN 350.2-32-6,6-43-ST
|
32
|
6.6
|
43
|
M 20 x 1
|
63
|
20
|
M 6
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
216
|
|
GN 350.2-32-9-26-ST
|
32
|
9
|
26
|
M 20 x 1
|
31
|
5
|
M 8
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
126
|
|
GN 350.2-32-9-43-ST
|
32
|
9
|
43
|
M 20 x 1
|
63
|
20
|
M 8
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
200
|
|
GN 350.2-32-11-26-ST
|
32
|
11
|
26
|
M 20 x 1
|
31
|
5
|
M 10
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
120
|
|
GN 350.2-32-11-43-ST
|
32
|
11
|
43
|
M 20 x 1
|
63
|
20
|
M 10
|
65
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
179
|
|
GN 350.2-45-11-34-ST
|
45
|
11
|
34
|
M 30 x 1.5
|
41
|
7
|
M 10
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
355
|
|
GN 350.2-45-11-54-ST
|
45
|
11
|
54
|
M 30 x 1.5
|
79
|
25
|
M 10
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
553
|
|
GN 350.2-45-13,5-34-ST
|
45
|
13.5
|
34
|
M 30 x 1.5
|
41
|
7
|
M 12
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
307
|
|
GN 350.2-45-13,5-54-ST
|
45
|
13.5
|
54
|
M 30 x 1.5
|
79
|
25
|
M 12
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
547
|
|
GN 350.2-45-17,5-34-ST
|
45
|
17.5
|
34
|
M 30 x 1.5
|
41
|
7
|
M 16
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
280
|
|
GN 350.2-45-17,5-54-ST
|
45
|
17.5
|
54
|
M 30 x 1.5
|
79
|
25
|
M 16
|
120
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
513
|
|
GN 350.2-58-17,5-44-ST
|
58
|
17.5
|
44
|
M 40 x 1.5
|
53
|
9
|
M 16
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
665
|
|
GN 350.2-58-17,5-70-ST
|
58
|
17.5
|
70
|
M 40 x 1.5
|
102
|
32
|
M 16
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
904
|
|
GN 350.2-58-22-44-ST
|
58
|
22
|
44
|
M 40 x 1.5
|
53
|
9
|
M 20
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
610
|
|
GN 350.2-58-22-70-ST
|
58
|
22
|
70
|
M 40 x 1.5
|
102
|
32
|
M 20
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
1030
|
|
GN 350.2-58-26-44-ST
|
58
|
26
|
44
|
M 40 x 1.5
|
53
|
9
|
M 24
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
560
|
|
GN 350.2-58-26-70-ST
|
58
|
26
|
70
|
M 40 x 1.5
|
102
|
32
|
M 24
|
210
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
975
|
|
GN 350.2-70-22-50-ST
|
70
|
22
|
50
|
M 50
|
60
|
10
|
M 20
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
1300
|
|
GN 350.2-70-22-83-ST
|
70
|
22
|
83
|
M 50
|
123
|
40
|
M 20
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
1800
|
|
GN 350.2-70-26-50-ST
|
70
|
26
|
50
|
M 50
|
60
|
10
|
M 24
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
940
|
|
GN 350.2-70-26-83-ST
|
70
|
26
|
83
|
M 50
|
123
|
40
|
M 24
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
1823
|
|
GN 350.2-70-33-50-ST
|
70
|
33
|
50
|
M 50
|
60
|
10
|
M 30
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
815
|
|
GN 350.2-70-33-83-ST
|
70
|
33
|
83
|
M 50
|
123
|
40
|
M 30
|
330
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
1618
|
|
GN 350.2-80-26-56-ST
|
80
|
26
|
56
|
M 60
|
68
|
12
|
M 24
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
1600
|
|
GN 350.2-80-26-94-ST
|
80
|
26
|
94
|
M 60
|
144
|
50
|
M 24
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
2888
|
|
GN 350.2-80-33-56-ST
|
80
|
33
|
56
|
M 60
|
68
|
12
|
M 30
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
1580
|
|
GN 350.2-80-33-94-ST
|
80
|
33
|
94
|
M 60
|
144
|
50
|
M 30
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
2560
|
|
GN 350.2-80-39-56-ST
|
80
|
39
|
56
|
M 60
|
68
|
12
|
M 36
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
1440
|
|
GN 350.2-80-39-94-ST
|
80
|
39
|
94
|
M 60
|
144
|
50
|
M 36
|
495
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
2252
|
* max. total load** max. load after deduction of the max. preload, for ST for screws 8.8 (μ = 0,125), for NI for screws 6.8 (μ = 0,14)
Steel 1.7225 (42 CrMo 4 V) ST
Zinc plated, blue passivated
Stainless steel AISI 303 (X 10 CrNiS 18-9) NI
Leveling sets GN 350.2 are used for leveling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.
They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
- DIN 1810 C-Spanner (Code no. see table)
