GN 350.1-NILevelling sets

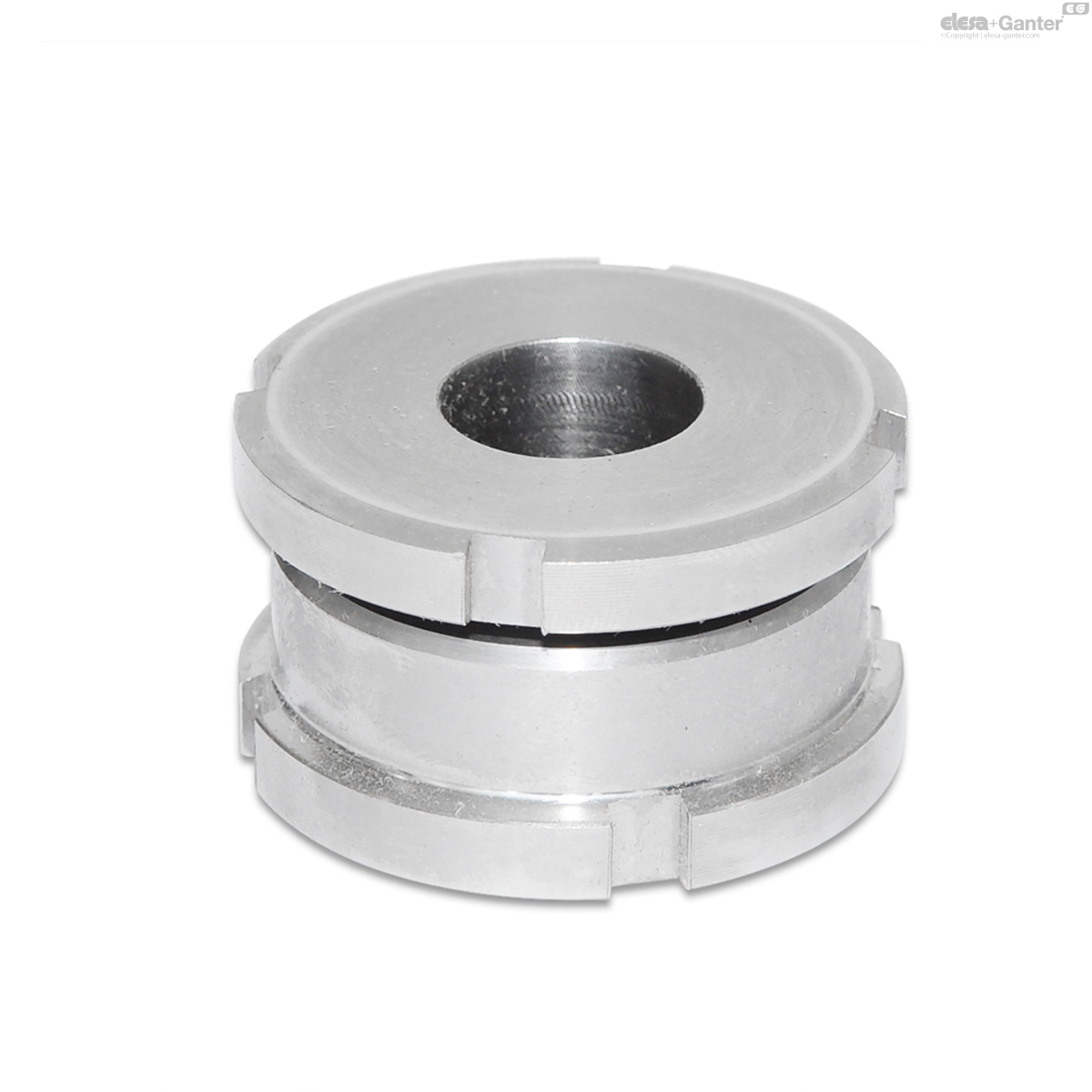

Levelling sets, Stainless Steel
Steel / Stainless Steel, short version
GN 350.1-NI
|
Catalogue
|

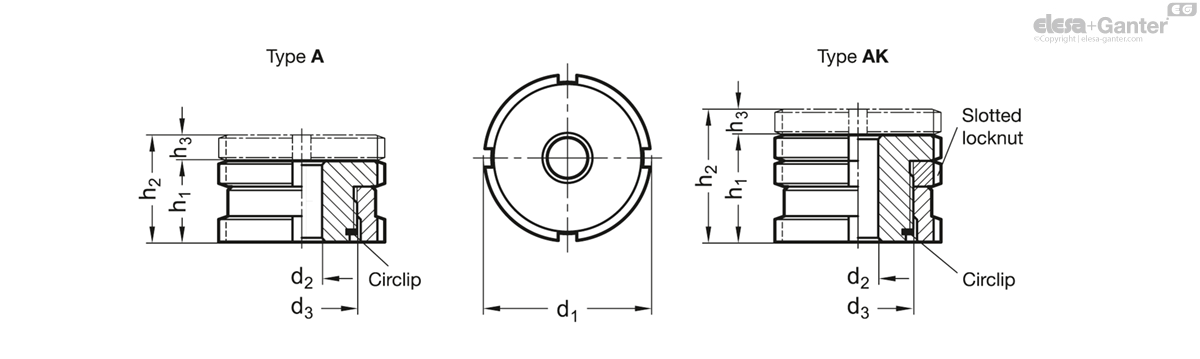

d1
|
d2
|
d3
|
h1
|
h2
|
h3
|
For screw
|
r
|
Static load F
in kN |
Static load F
in kN F1 |
Code no. for
C-Spanner |
Static load F
in kN F2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GN 350.1-25-6,6-A-NI
|
25
|
6.6
|
M 15 x 1
|
15
|
19
|
4
|
M 6
|
M 6
|
27.1
|
20.2
|
DIN 1810-A25-28
|
DIN 1810-A25-28
|
|
GN 350.1-32-6,6-A-NI
|
32
|
6.6
|
M 20 x 1
|
18
|
23
|
5
|
M 6
|
M 6
|
43.4
|
36.5
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-32-9-A-NI
|
32
|
9
|
M 20 x 1
|
18
|
23
|
5
|
M 8
|
M 8
|
43.4
|
30.8
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-32-11-A-NI
|
32
|
11
|
M 20 x 1
|
18
|
23
|
5
|
M 10
|
M 10
|
43.4
|
23.4
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-45-11-A-NI
|
45
|
11
|
M 30 x 1.5
|
22
|
29
|
7
|
M 10
|
M 10
|
84
|
64
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-45-13,5-A-NI
|
45
|
13.5
|
M 30 x 1.5
|
22
|
29
|
7
|
M 12
|
M 12
|
84
|
54.8
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-45-17,5-A-NI
|
45
|
17.5
|
M 30 x 1.5
|
22
|
29
|
7
|
M 16
|
M 16
|
84
|
28.9
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-58-17,5-A-NI
|
58
|
17.5
|
M 40 x 1.5
|
28
|
37
|
9
|
M 16
|
M 16
|
148
|
92.9
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-58-22-A-NI
|
58
|
22
|
M 40 x 1.5
|
28
|
37
|
9
|
M 20
|
M 20
|
148
|
59
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-58-26-A-NI
|
58
|
26
|
M 40 x 1.5
|
28
|
37
|
9
|
M 24
|
M 24
|
148
|
20.3
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-70-22-A-NI
|
70
|
22
|
M 50 x 1.5
|
33
|
43
|
10
|
M 20
|
M 20
|
225
|
136
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-70-26-A-NI
|
70
|
26
|
M 50 x 1.5
|
33
|
43
|
10
|
M 24
|
M 24
|
225
|
97.3
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-70-33-A-NI
|
70
|
33
|
M 50 x 1.5
|
33
|
43
|
10
|
M 30
|
M 30
|
225
|
20.6
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-80-26-A-NI
|
80
|
26
|
M 60 x 2
|
38
|
50
|
12
|
M 24
|
M 24
|
323
|
195.3
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
|
GN 350.1-80-33-A-NI
|
80
|
33
|
M 60 x 2
|
38
|
50
|
12
|
M 30
|
M 30
|
323
|
118.6
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
|
GN 350.1-80-39-A-NI
|
80
|
39
|
M 60 x 2
|
38
|
50
|
12
|
M 36
|
M 36
|
323
|
38.2
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
|
GN 350.1-25-6,6-AK-NI
|
25
|
6.6
|
M 15 x 1
|
20
|
24
|
4
|
M 6
|
M 6
|
27.1
|
20.2
|
DIN 1810-A25-28
|
DIN 1810-A25-28
|
|
GN 350.1-32-6,6-AK-NI
|
32
|
6.6
|
M 20 x 1
|
24
|
29
|
5
|
M 6
|
M 6
|
43.4
|
36.5
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-32-9-AK-NI
|
32
|
9
|
M 20 x 1
|
24
|
29
|
5
|
M 8
|
M 8
|
43.4
|
30.8
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-32-11-AK-NI
|
32
|
11
|
M 20 x 1
|
24
|
29
|
5
|
M 10
|
M 10
|
43.4
|
23.4
|
DIN 1810-A30-32
|
DIN 1810-A30-32
|
|
GN 350.1-45-11-AK-NI
|
45
|
11
|
M 30 x 1.5
|
29
|
36
|
7
|
M 10
|
M 10
|
84
|
64
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-45-13,5-AK-NI
|
45
|
13.5
|
M 30 x 1.5
|
29
|
36
|
7
|
M 12
|
M 12
|
84
|
54.8
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-45-17,5-AK-NI
|
45
|
17.5
|
M 30 x 1.5
|
29
|
36
|
7
|
M 16
|
M 16
|
84
|
28.9
|
DIN 1810-A45-50
|
DIN 1810-A45-50
|
|
GN 350.1-58-17,5-AK-NI
|
58
|
17.5
|
M 40 x 1.5
|
37
|
46
|
9
|
M 16
|
M 16
|
148
|
92.9
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-58-22-AK-NI
|
58
|
22
|
M 40 x 1.5
|
37
|
46
|
9
|
M 20
|
M 20
|
148
|
59
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-58-26-AK-NI
|
58
|
26
|
M 40 x 1.5
|
37
|
46
|
9
|
M 24
|
M 24
|
148
|
20.3
|
DIN 1810-A58-62
|
DIN 1810-A58-62
|
|
GN 350.1-70-22-AK-NI
|
70
|
22
|
M 50 x 1.5
|
44
|
54
|
10
|
M 20
|
M 20
|
225
|
136
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-70-26-AK-NI
|
70
|
26
|
M 50 x 1.5
|
44
|
54
|
10
|
M 24
|
M 24
|
225
|
97.3
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-70-33-AK-NI
|
70
|
33
|
M 50 x 1.5
|
44
|
54
|
10
|
M 30
|
M 30
|
225
|
20.6
|
DIN 1810-A68-75
|
DIN 1810-A68-75
|
|
GN 350.1-80-26-AK-NI
|
80
|
26
|
M 60 x 2
|
49
|
61
|
12
|
M 24
|
M 24
|
323
|
195.3
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
|
GN 350.1-80-33-AK-NI
|
80
|
33
|
M 60 x 2
|
49
|
61
|
12
|
M 30
|
M 30
|
323
|
118.6
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
|
GN 350.1-80-39-AK-NI
|
80
|
39
|
M 60 x 2
|
49
|
61
|
12
|
M 36
|
M 36
|
323
|
38.2
|
DIN 1810-A80-90
|
DIN 1810-A80-90
|
Types
- Type A: without lock nut
- Type AK: with lock nut
Version in Steel
Steel, 1.7225 (42 CrMo 4V) ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 303 NI
(X 10 CrNiS 18-9)
F1: max. total load
F2: max. load after deduction of the max. preload
- for screws 8.8 µ = 0.125 (Steel version)
- for screws 6.8 µ = 0.14 (Stainless Steel version)
Levelling sets GN 350.1 are used for levelling, adjusting and linking operations if small dimensions are given.
They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.
- C-Spanner DIN 1810 (code no. see table)
