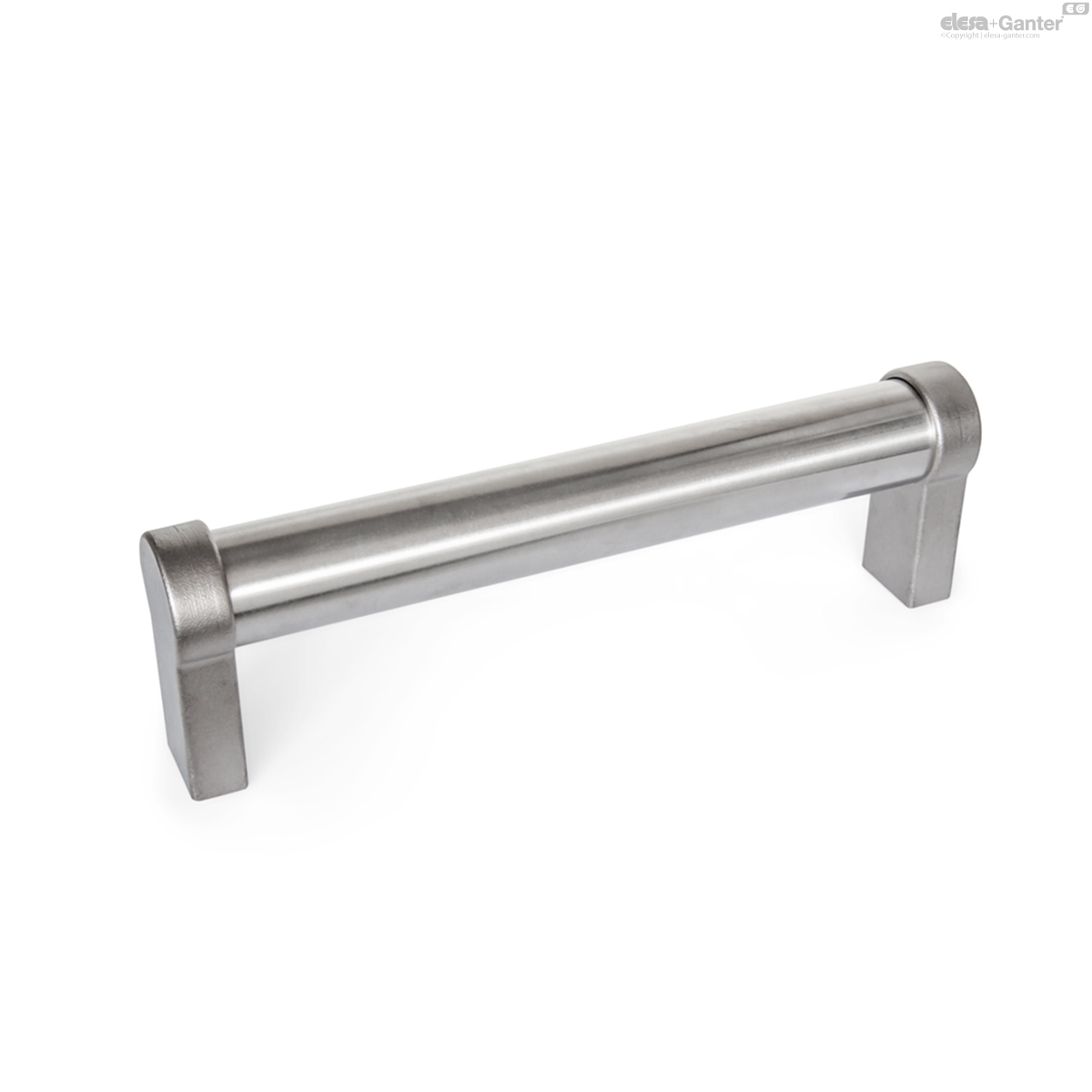

GN 333.7Tubular Handles

Tubular Handles

Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Tubular Handles
Tubular Handles

GN 333.7

Reset
Catalogue

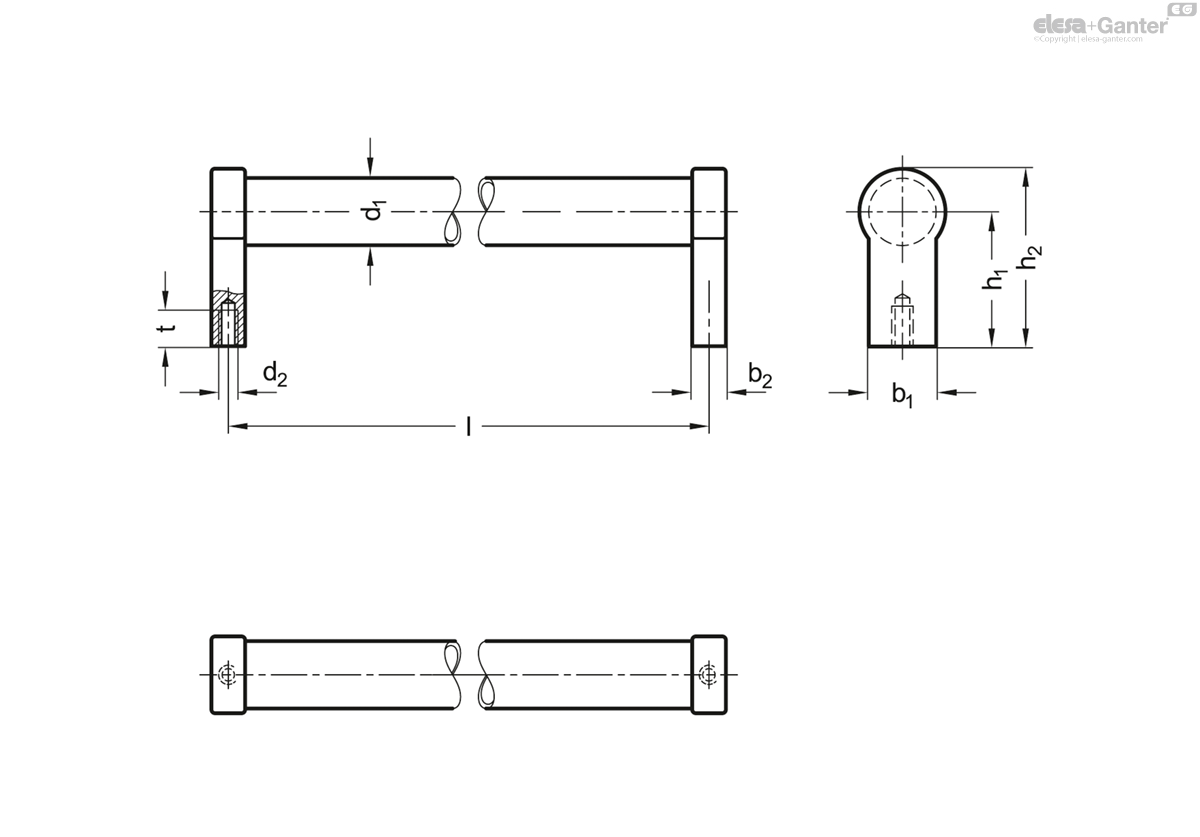

d1
l
b1
b2
d2
h1
h2
t min.
GN 333.7-28-200
28
200
25
14
M 8
50
66
15
514
GN 333.7-28-250
28
250
25
14
M 8
50
66
15
560
GN 333.7-28-300
28
300
25
14
M 8
50
66
15
626
GN 333.7-28-400
28
400
25
14
M 8
50
66
15
766
GN 333.7-28-500
28
500
25
14
M 8
50
66
15
881
GN 333.7-28-600
28
600
25
14
M 8
50
66
15
990

Handle tube

Stainless steel AISI 304, wall thickness 2 mm

Ground, matte shiny finish

Handle legs

Stainless steel precision casting AISI CF-8

Matte shot-blasted

With the tubular handles GN 333.7, the handle legs and the handle tube are pressed together.

Related products

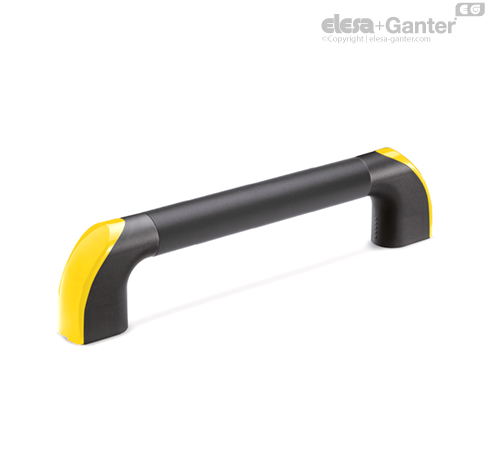

Aluminium tube with epoxy resin coating
