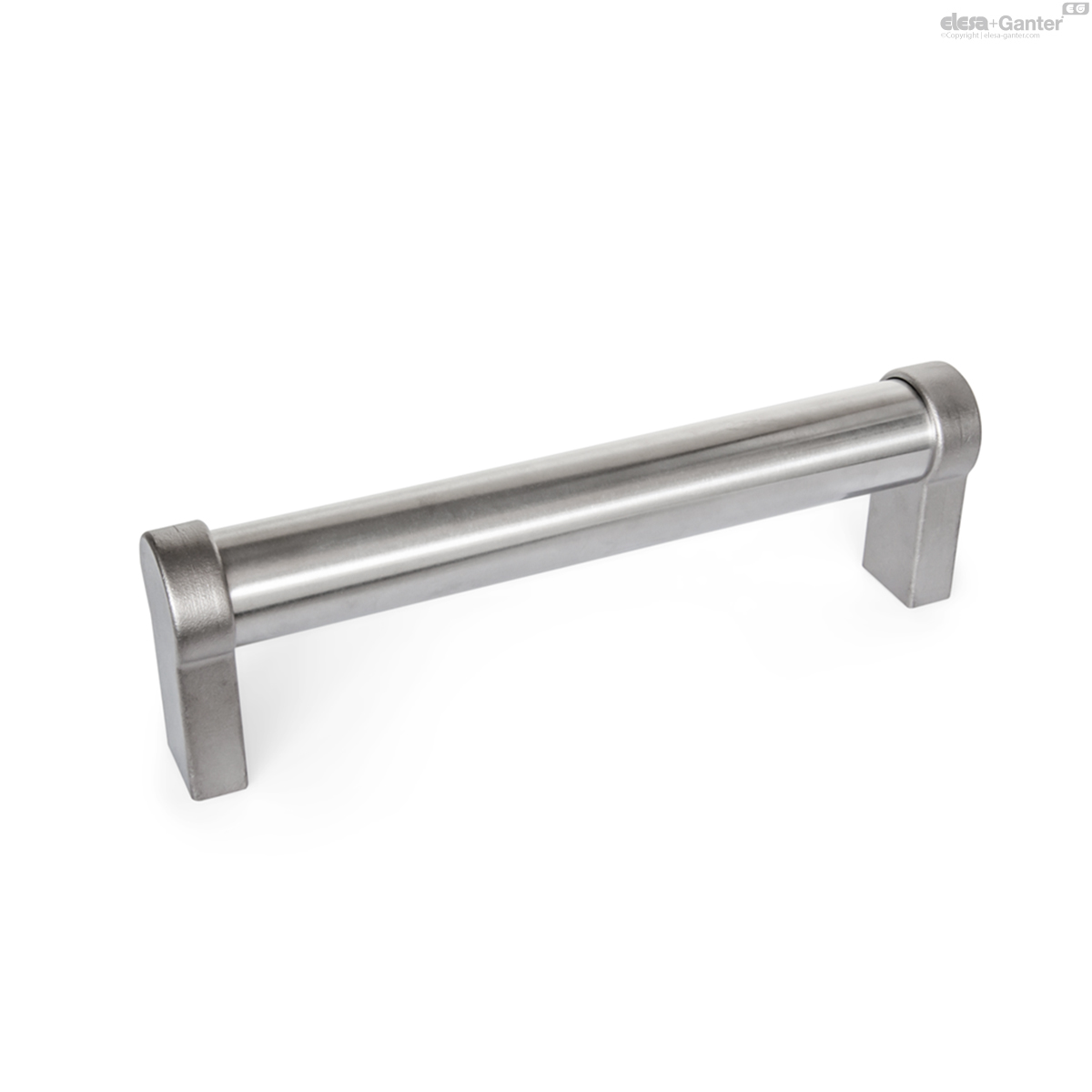

333.7-28-600 GN 333.7 Tubular Handles

333.7-28-600

GN 333.7 Tubular Handles

Stainless Steel
All sizes and variants
  • INOX
  • RoHS

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 333.7-28-600
d1
28
l
600
b1
25
b2
14
d2
M 8
h1
50
h2
66
t min.
15
weight
990

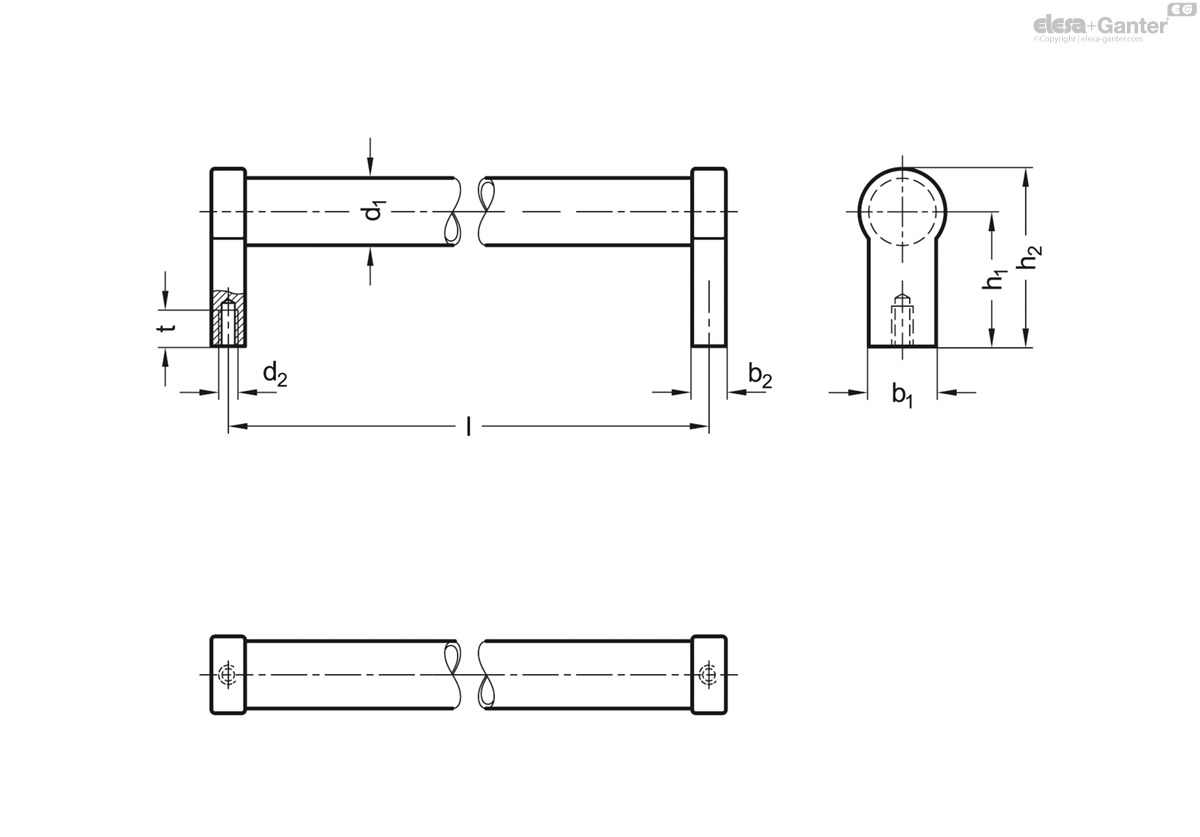

333.7-28-600 drawing

Handle tube

Stainless steel AISI 304, wall thickness 2 mm

Ground, matte shiny finish

Handle legs

Stainless steel precision casting AISI CF-8

Matte shot-blasted

With the tubular handles GN 333.7, the handle legs and the handle tube are pressed together.
