GN 268Collar Bushings

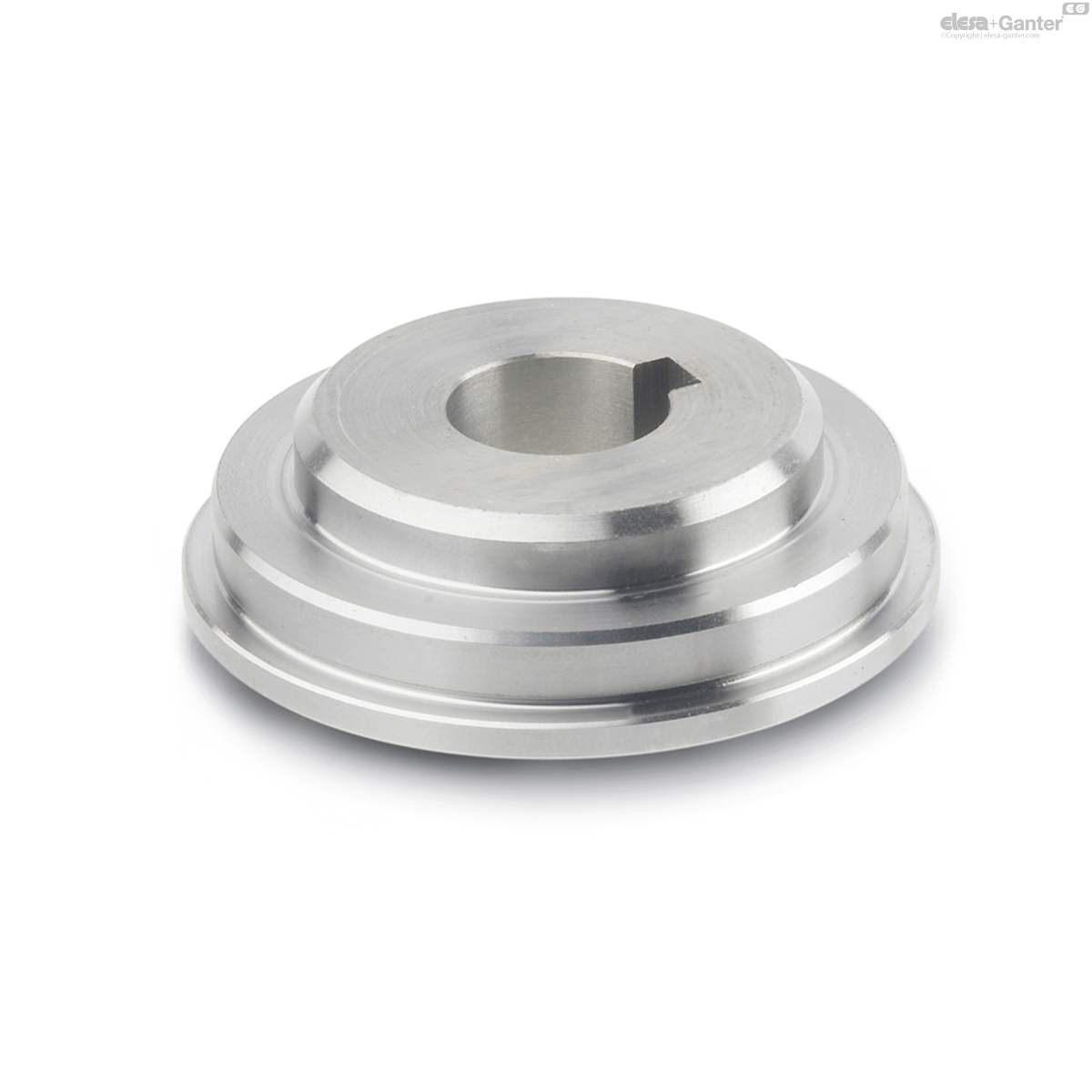

Collar Bushings

Steel, Accessories for Scaling Sets

  • Icons/__logo__RoHS__.png
pdf Other documents
Collar Bushings
Collar Bushings

GN 268

Reset
Catalogue

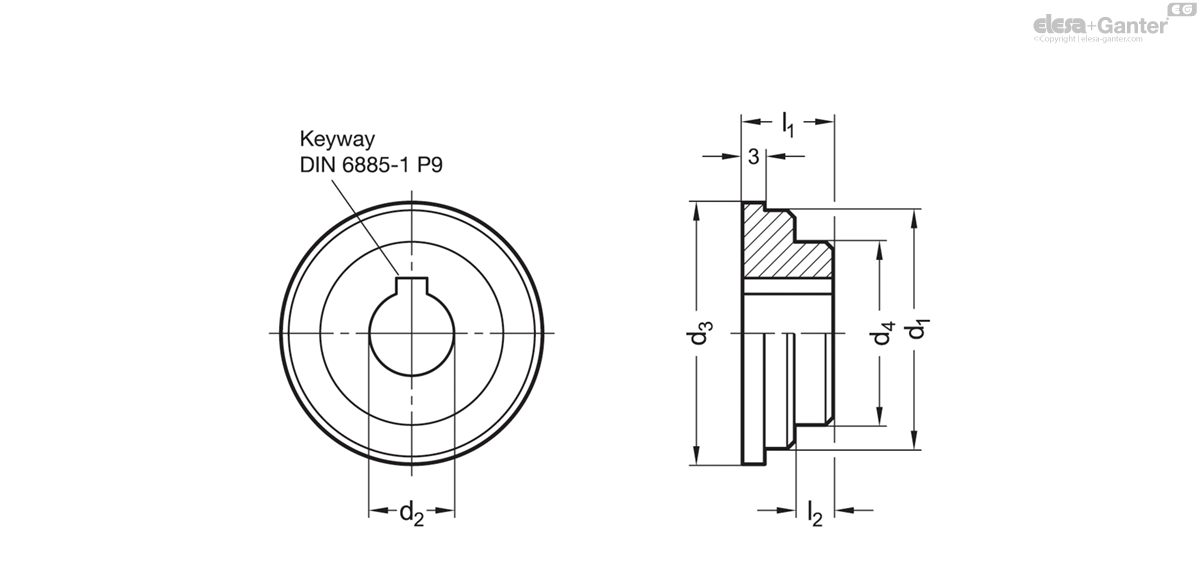

d1 f7
d2 H7
d3
d4
l1
l2
Scaling set consists of:
2 Collar bushes GN 268
1 Scale ring
Scaling set consists of:
2 Collar bushes GN 268

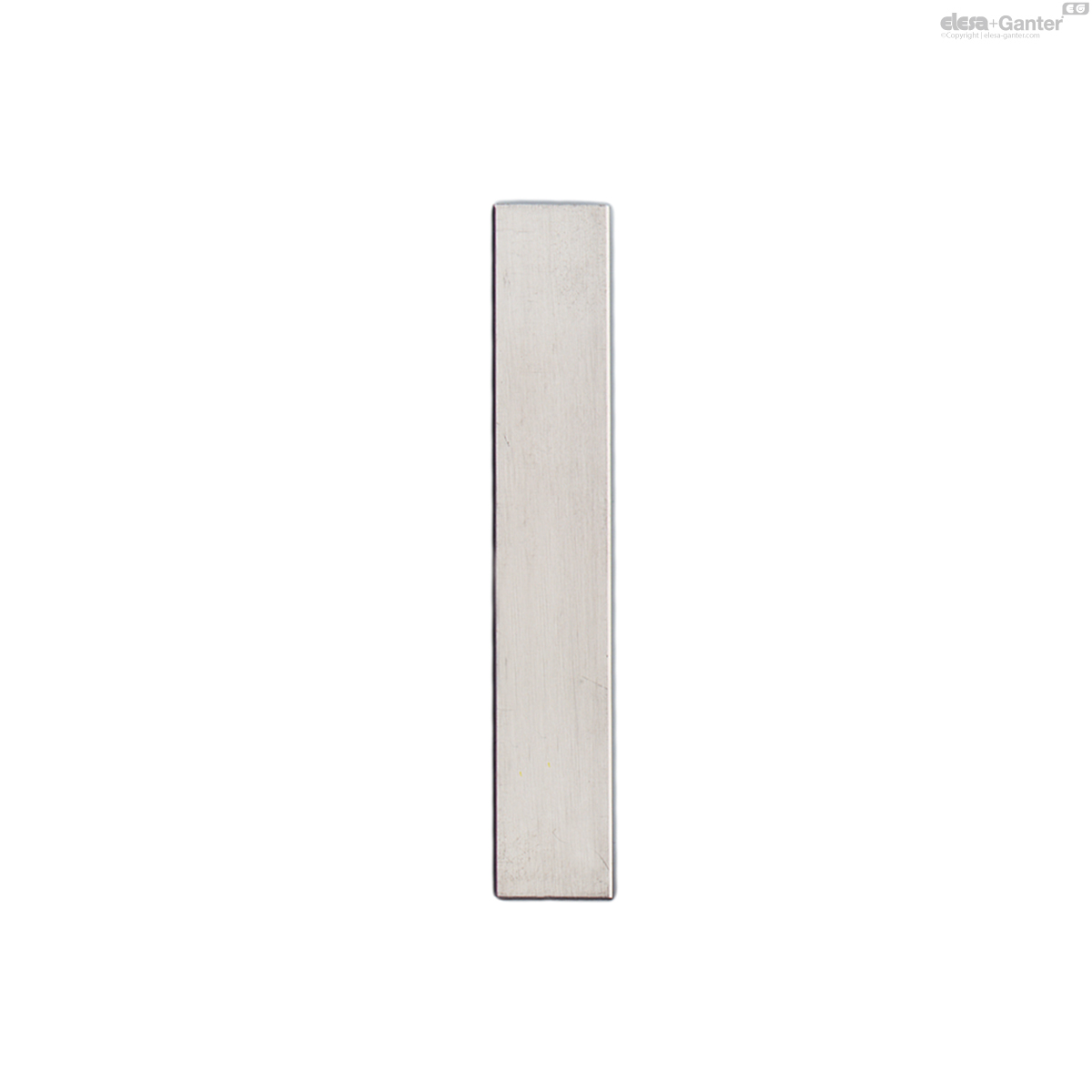

3 Flat springs
GN 268-24-K12
24
K 12
26.7
18
13.5
5.5
GN 264-30
GN 374-0.3-10
28
GN 268-32-K12
32
K 12
35.7
25
13.5
5.5
GN 264-40
GN 374-0.4-10
61
GN 268-32-K14
32
K 14
35.7
25
13.5
5.5
GN 264-40
GN 374-0.4-10
57
GN 268-32-K16
32
K 16
35.7
25
13.5
5.5
GN 264-40
GN 374-0.4-10
51
GN 268-50-K12
50
K 12
54.7
38
14.5
5.5
GN 264-60
GN 374-0.6-10
177
GN 268-50-K16
50
K 16
54.7
38
14.5
5.5
GN 264-60
GN 374-0.6-10
169
GN 268-50-K20
50
K 20
54.7
38
14.5
5.5
GN 264-60
GN 374-0.6-10
153
GN 268-50-K28
50
K 28
54.7
38
14.5
5.5
GN 264-60
GN 374-0.6-10
119
GN 268-68-K12
68
K 12
74.7
50
14.5
5.5
GN 264-80
GN 374-0.8-10
334
GN 268-68-K14
68
K 14
74.7
50
14.5
5.5
GN 264-80
GN 374-0.8-10
332
GN 268-68-K16
68
K 16
74.7
50
14.5
5.5
GN 264-80
GN 374-0.8-10
300
GN 268-68-K22
68
K 22
74.7
50
14.5
5.5
GN 264-80
GN 374-0.8-10
304

Steel

Plain
