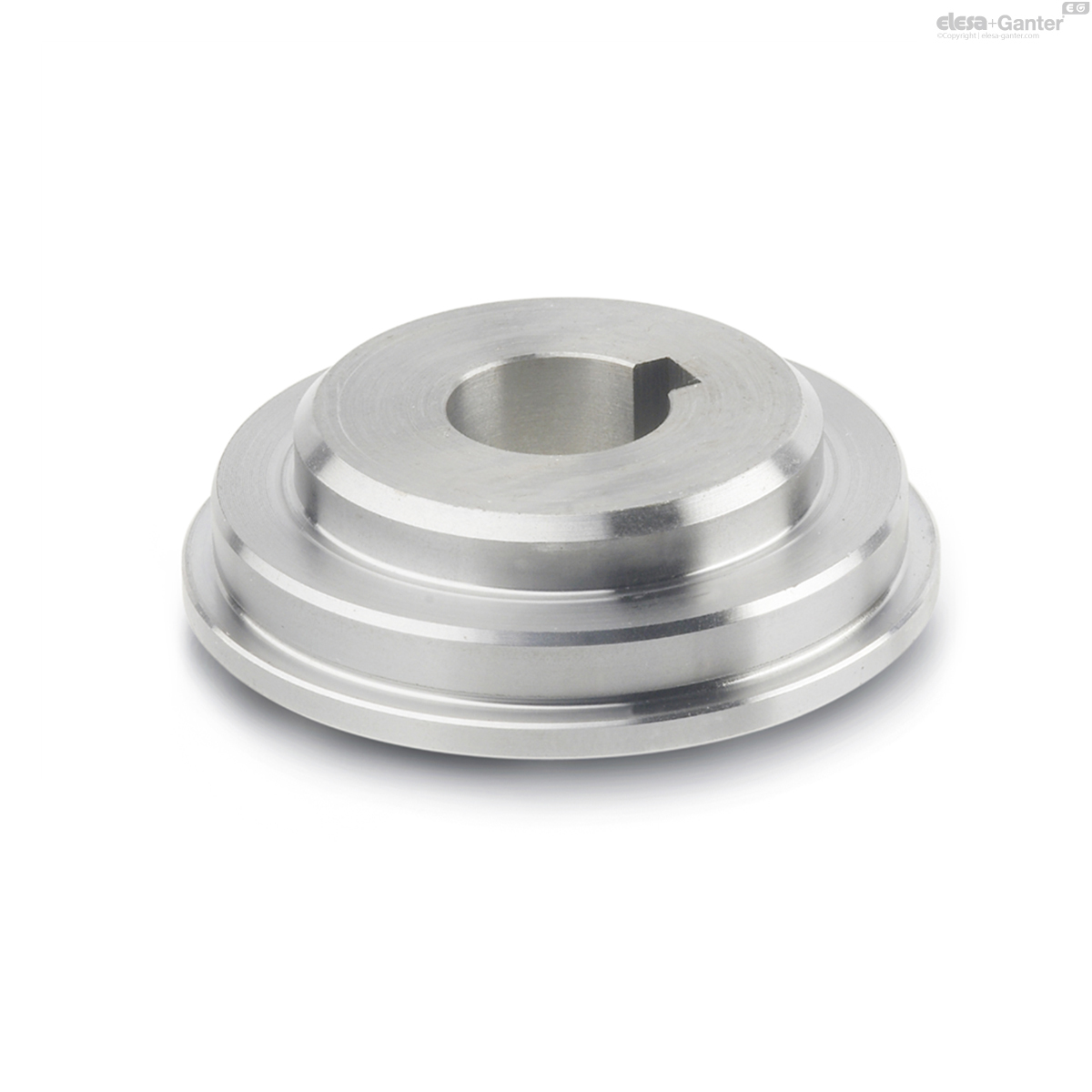

268-32-K14 GN 268 Collar Bushings

268-32-K14

GN 268 Collar Bushings

Steel, Accessories for Scaling Sets
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 268-32-K14
d1 f7
32
d2 H7
K 14
d3
35.7
d4
25
l1
13.5
l2
5.5
Scaling set consists of:
2 Collar bushes GN 268
1 Scale ring
GN 264-40
Scaling set consists of:
2 Collar bushes GN 268
3 Flat springs
GN 374-0.4-10
weight
57
268-32-K14 drawing
