GN 2282-MSR-6Screw-On Spirit Levels

Silver, RAL 9006, textured finish, 6 angle minutes, bubble move by 2 mm

Housing Brass, for Mounting with Screws

  • Icons/__logo__RoHS__.png
pdf Other documents
Silver, RAL 9006, textured finish, 6 angle minutes, bubble move by 2 mm
Silver, RAL 9006, textured finish, 6 angle minutes, bubble move by 2 mm
GN 2282-MSR-6
Silver, RAL 9006, textured finish, 6 angle minutes, bubble move by 2 mm
GN 2282-MSR-50
Silver, RAL 9006, textured finish, 50 angle minutes, bubble move by 2 mm
GN 2282-MSW-50
Black, RAL 9005, textured finish, 50 angle minutes, bubble move by 2 mm
GN 2282-MSW-6
Black, RAL 9005, textured finish, 6 angle minutes, bubble move by 2 mm
Identification No. 2
Identification No. 3
Identification No. 1

GN 2282-MSR-6

Reset
Catalogue
l1
b
d
h1
h2
l2
m
GN 2282-MSR-57-G-6-1
57
12
4.5
13
1
37
45
13

Sensitivity

  • 6 Angle minutes, bubble move by 2 mm
  • 50 Angle minutes, bubble move by 2 mm

Identification no.

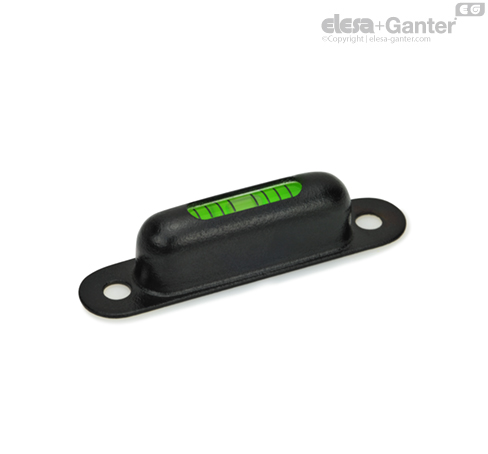

  • No. 1: Viewing window top

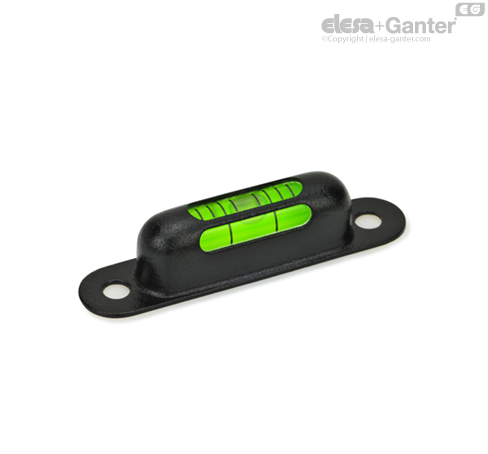

  • No. 2: Viewing window top - front

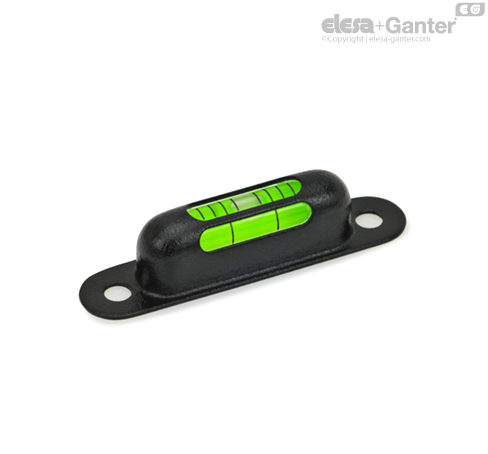

  • No. 3: Viewing window top - front - back

Housing

Brass

Powder coated

  • Black, RAL 9005, textured finish MSW
  • Silver, RAL 9006, textured finish MSR

Spirit level element

  • Glass plastic body
  • Filling
  • Green-transparent G

Casting compound

Mineral-based

Screw-on spirit levels GN 2282 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels are aligned in relation to the finished reference surface so that the bubble is centered in the middle of the marking lines once the horizontal position of the contact surface in the longitudinal direction is reached.

  • Filling, colorless-transparent
  • Other sensitivities
  • Other colors
