GN 223-BControl Levers

Without keyway

Steel

  • Icons/__logo__RoHS__.png
pdf Other documents
Without keyway
Without keyway
With square DIN 79
GN 223-V
With square DIN 79
Without keyway
GN 223-B
Without keyway

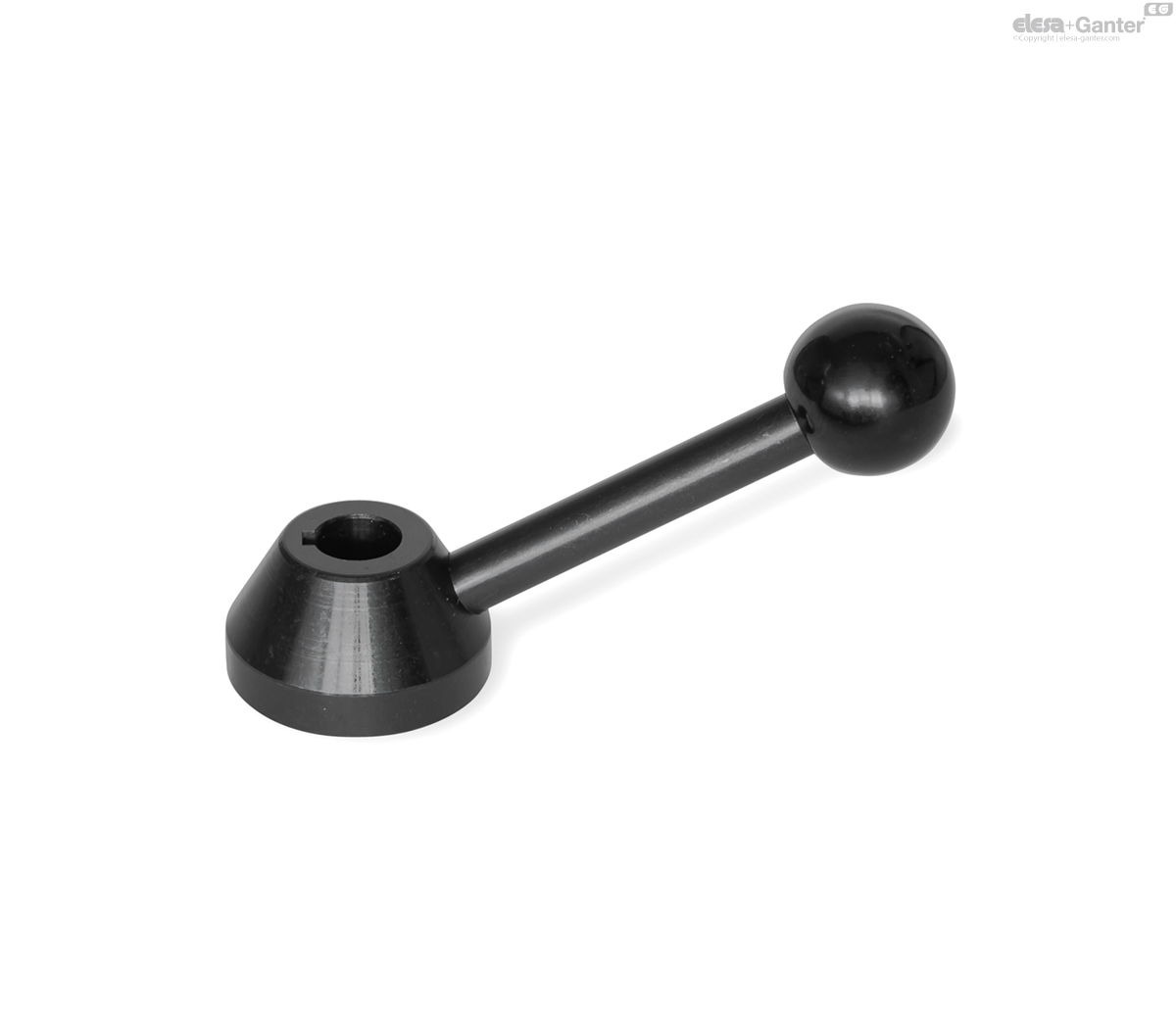

With keyway DIN 6885-1 P9
GN 223-K
With keyway DIN 6885-1 P9

GN 223-B

Reset
Catalogue
d1
d2 H7
d3
d4
h1
h2
h3 ≈
Length l ≈
GN 223-25-B8
25
B 8
6
16
14
5
35
45
45
GN 223-32-B10
32
B 10
8
20
18
6.5
48
62
103
GN 223-40-B12
40
B 12
10
30
22
8.5
77
95
214
GN 223-52-B16
52
B 16
14
40
28
11
96
136
500

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shaft

Steel

Blackened

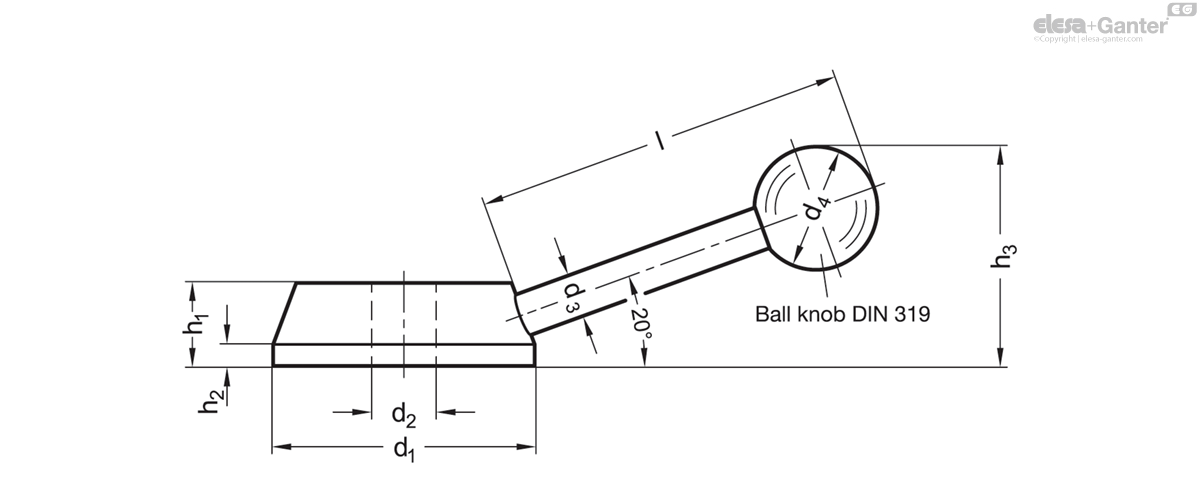

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

Related products
Steel

GN 212-ST

Tension Levers Steel / Stainless Steel
Cover with indicator point

GN 750-M

Control Levers Steel
