GN 185Stainless Steel-Bezel discs

Stainless Steel-Bezel discs

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Stainless Steel-Bezel discs
Stainless Steel-Bezel discs

GN 185

Reset
Catalogue

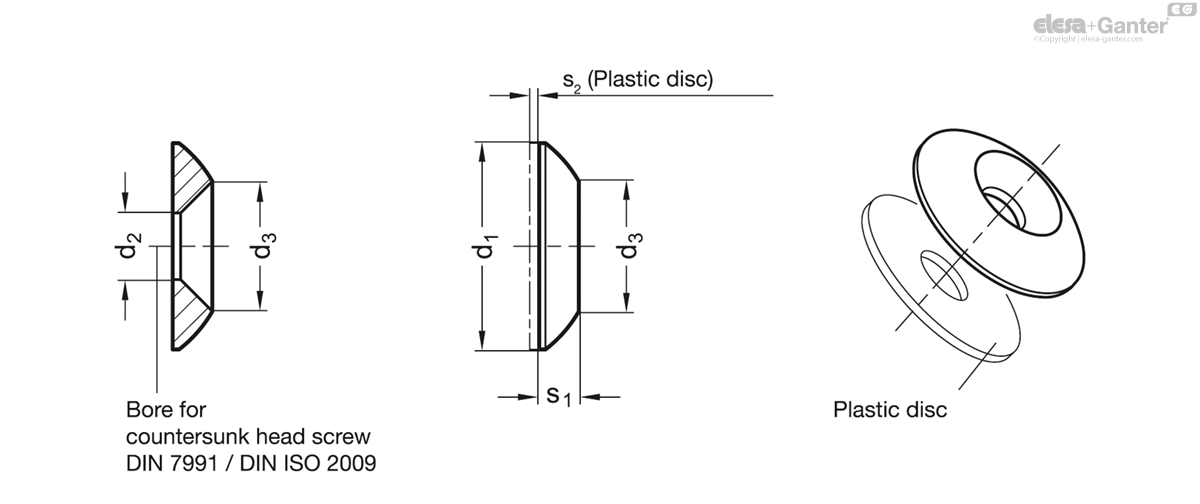

d1
d2
d3
s1
s2
For countersunk screws
DIN 7991
DIN ISO 2009
GN 185-18-NI
18
4.3
8.5
3
0.8
M 4
4
GN 185-20-NI
20
5.3
10.5
3.5
1
M 5
6
GN 185-22-NI
22
6.4
12.6
4
1
M 6
7
GN 185-26-NI
26
8.4
16.8
5
1
M 8
11

Stainless Steel AISI 303 NI

  • matt shot-blasted

Plastic disc (Polyamide PA)

white

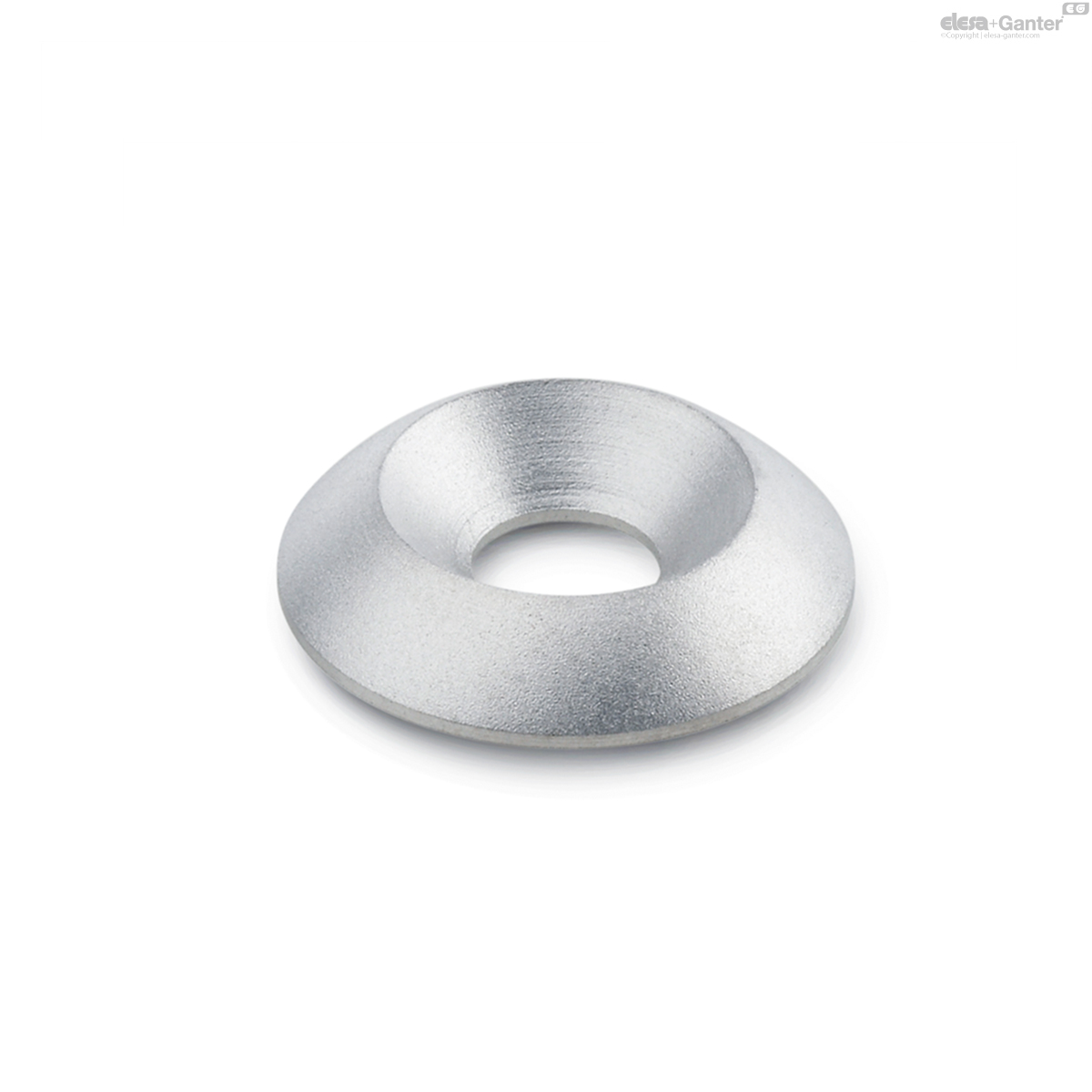

Stainless Steel-Bezel discs GN 185 are used for shrouding screw joints when a visually nice finish is required.

The purpose of the plastic discs supplied as a standard item on delivery is merely to avoid damage to improved surfaces.
