185-22-NI GN 185 Stainless Steel-Bezel discs

185-22-NI

GN 185 Stainless Steel-Bezel discs

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 185

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 185-22-NI
d1
22
d2
6.4
d3
12.6
s1
4
s2
1
For countersunk screws
DIN 7991
DIN ISO 2009
M 6
7

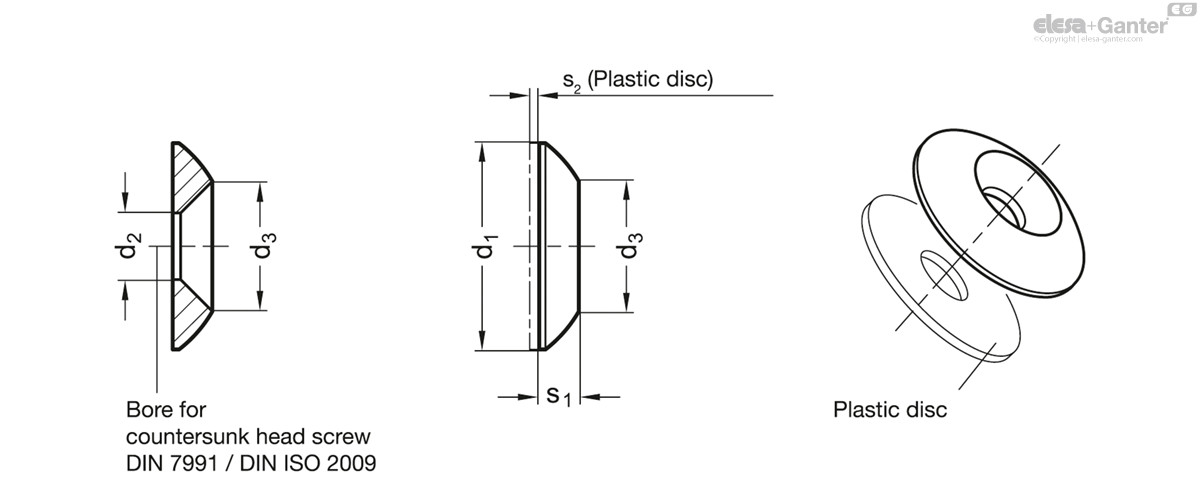

185-22-NI drawing

Stainless Steel AISI 303 NI

  • matt shot-blasted

Plastic disc (Polyamide PA)

white

Stainless Steel-Bezel discs GN 185 are used for shrouding screw joints when a visually nice finish is required.

The purpose of the plastic discs supplied as a standard item on delivery is merely to avoid damage to improved surfaces.
