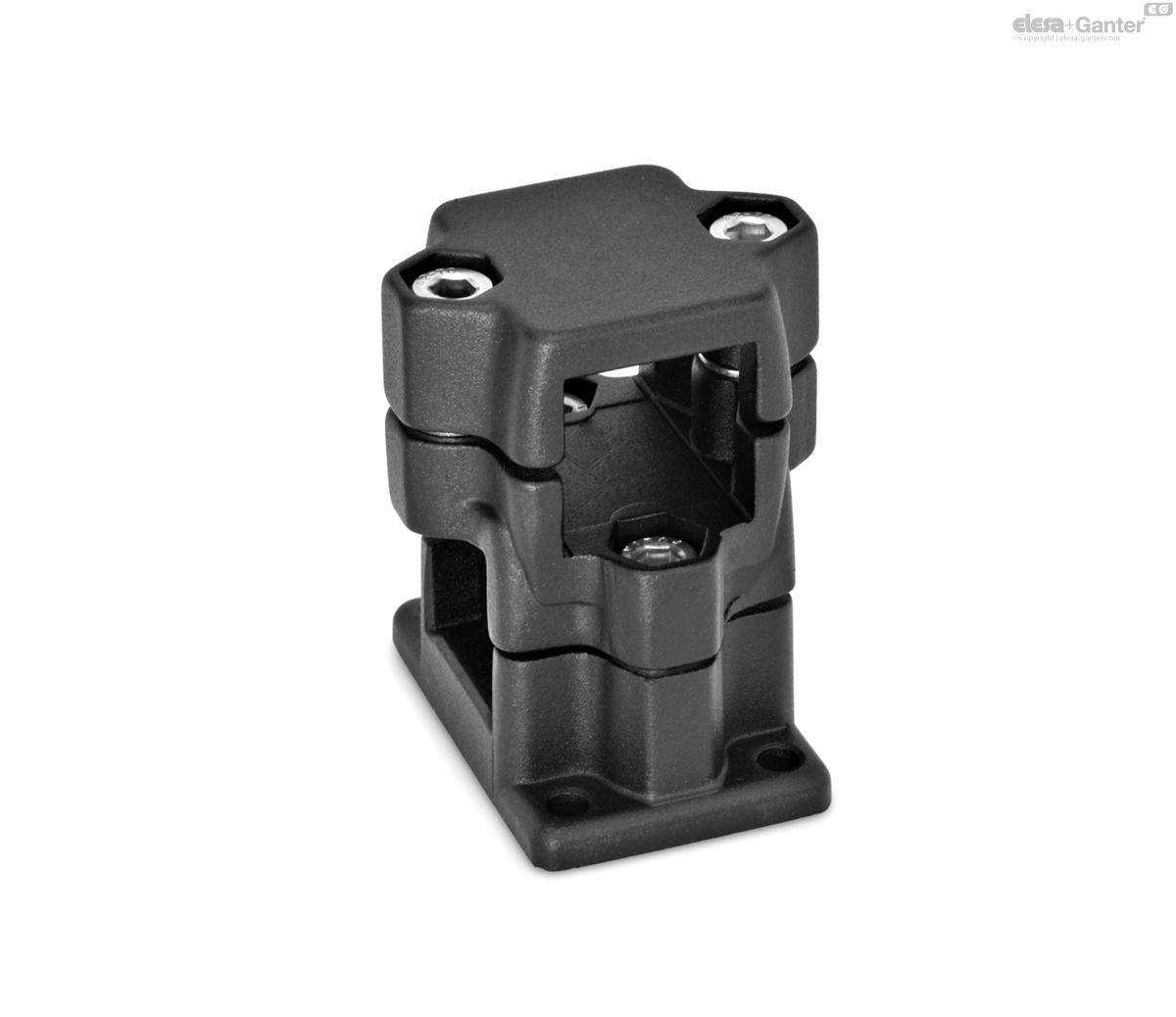

GN 141-S-SFlanged Two-Way Connector Clamps

Square-Square

Aluminum, Multi Part Assembly

  • Icons/__logo__RoHS__.png
pdf Other documents
Square-Square
Square-Square
GN 141-S-B
Bore-Square
GN 141-B-B
Bore-Bore
GN 141-B-S
Bore-Square
GN 141-S-S
Square-Square
SW - RAL 9005
BL - Plain finish

GN 141-S-S

Reset
Catalogue
s1 Square
s2 Square
d3
k Clamping length
l1
l2
l3
m
t
x1
x2
y1
GN 141-V20-V20-2-BL
V 20
V 20
6.5
50
86
30
68
33.5
7
75
60
50
GN 141-V25-V25-2-BL
V 25
V 25
6.5
50
86
30
68
33.5
7
75
60
50
GN 141-V30-V30-2-BL
V 30
V 30
6.5
50
86
30
68
33.5
7
75
60
50
GN 141-V40-V40-2-BL
V 40
V 40
11
76
136
46
98
55
14
115
90
76
GN 141-V45-V45-2-BL
V 45
V 45
11
76
136
46
98
55
14
115
90
76
GN 141-V50-V50-2-BL
V 50
V 50
11
76
136
46
98
55
14
115
90
76

Identification no.

  • No. 2: With 4 stainless steel socket cap screws ISO 4762

Connector clamp

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Plain finish, matte shot-blasted BL

Socket cap screws ISO 4762

Stainless steel

Hex nuts DIN 985

Stainless steel

Self-locking via polyamide ring

The clamping bores of flanged two-way connector clamps GN 141 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws z1, can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

  • GN 911 Adjustable Hand levers
