GN 114.2Locking Pins

Locking Pins

Steel, Knob Plastic, with Axial Lock (Pawl)

  • Icons/__logo__RoHS__.png
pdf Other documents
Locking Pins
Locking Pins

GN 114.2

Catalogue

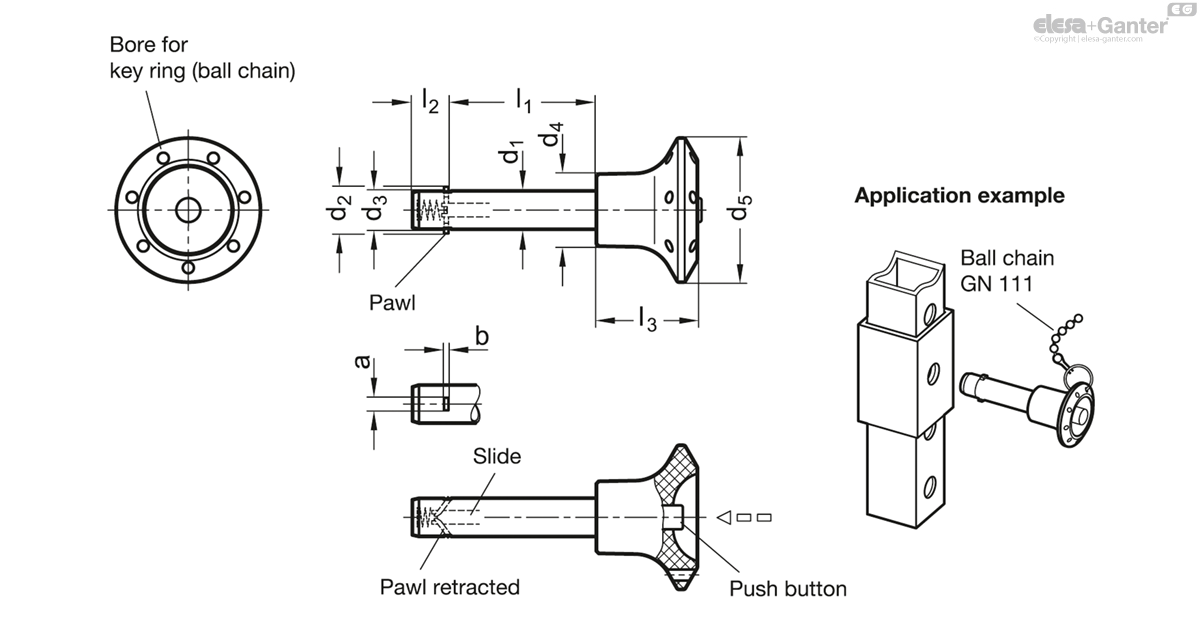

d1 -0.1
l1 +0.4
a
b
d2
d3
d4
d5
l2
l3
Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
6
10
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
12
6
12
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
12
6
16
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
13
6
20
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
14
6
25
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
14
6
30
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
15
6
35
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
16
6
40
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
17
6
45
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
18
6
50
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
18
6
60
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
23
6
70
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
23
6
80
2.3
0.5
7.3 +0.5
5.9
15
30
7
21
14
27
8
10
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
26
8
16
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
16
8
20
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
25
8
25
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
27
8
30
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
29
8
35
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
29
8
40
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
32
8
45
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
34
8
50
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
35
8
60
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
41
8
70
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
47
8
80
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
50
8
90
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
52
8
100
2.8
0.6
9.8 +0.5
7.9
15
30
8.4
21
28
54
10
15
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
24
10
20
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
26
10
25
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
28
10
30
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
31
10
35
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
33
10
40
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
35
10
45
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
37
10
50
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
39
10
60
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
44
10
70
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
49
10
80
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
54
10
90
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
60
10
100
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
63
10
110
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
67
10
120
3.3
1
11.7 +1
9.9
18
34
9.8
26
38
73
12
20
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
33
12
25
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
37
12
30
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
41
12
35
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
44
12
40
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
48
12
45
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
51
12
50
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
55
12
60
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
62
12
70
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
69
12
80
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
76
12
90
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
90
12
100
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
95
12
110
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
102
12
120
3.8
1
13.7 +1
11.9
18
34
11.3
26
61
112
16
30
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
78
16
35
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
85
16
40
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
92
16
45
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
85
16
50
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
105
16
60
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
118
16
70
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
133
16
80
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
144
16
90
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
147
16
100
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
173
16
110
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
186
16
120
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
199
16
130
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
213
16
140
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
226
16
150
4.8
1.2
18.7 +1
15.9
22
40
14.2
32
113
239
20
30
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
125
20
35
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
136
20
40
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
147
20
45
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
158
20
50
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
169
20
60
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
191
20
70
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
214
20
80
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
234
20
90
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
258
20
100
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
277
20
110
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
302
20
120
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
326
20
130
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
350
20
140
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
368
20
150
4.8
1.2
22.7 +1
19.8
25
40
14.8
33
187
395

Pin

Steel

Zinc plated, blue passivated

Pawl

Stainless Steel AISI 304 (sheet metal)

Knob

Plastic (Polyamide PA)

  • Black-gray
  • Temperature resistant up to 80 °C

Push button / Slide

Plastic

  • Push button: red
  • Temperature resistant up to 80 °C

Pressure spring

Stainless steel AISI 301

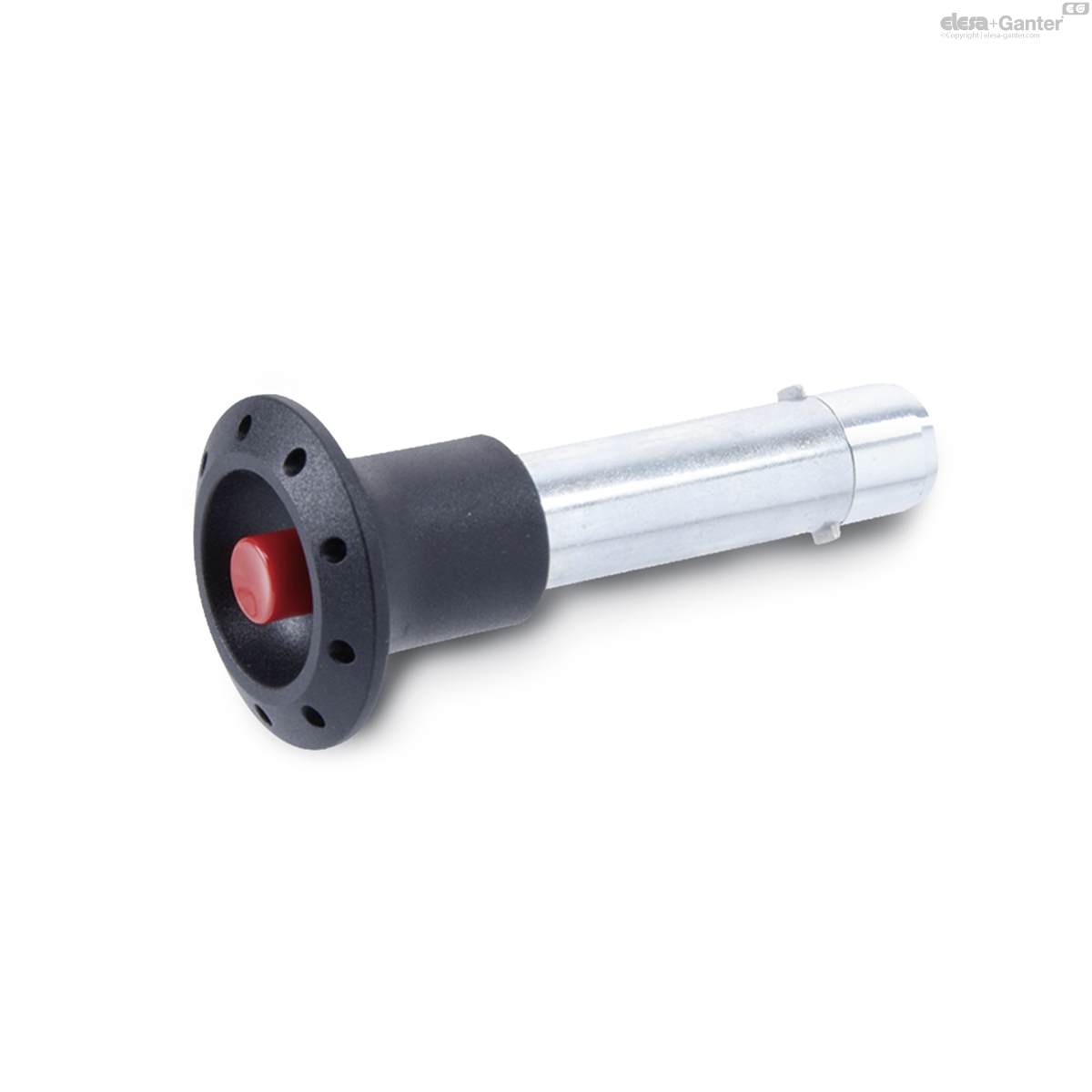

Locking pins with axial lock GN 114.2 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
