Technical datasheet

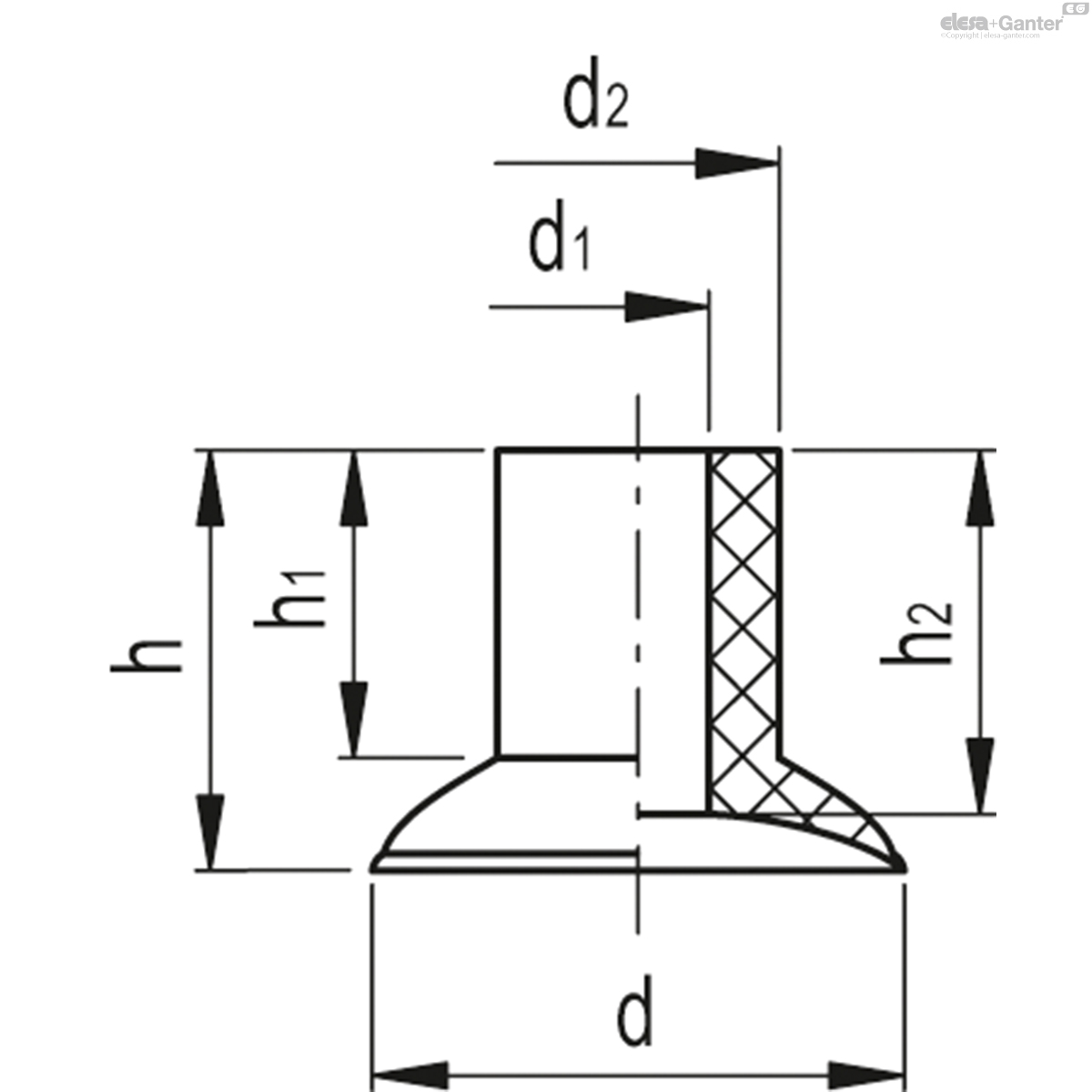

VVH-09-SCup-shaped vacuum cups
Silicone rubber, without support
Diameter 9 mm, with or without shaped support, rubber
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions

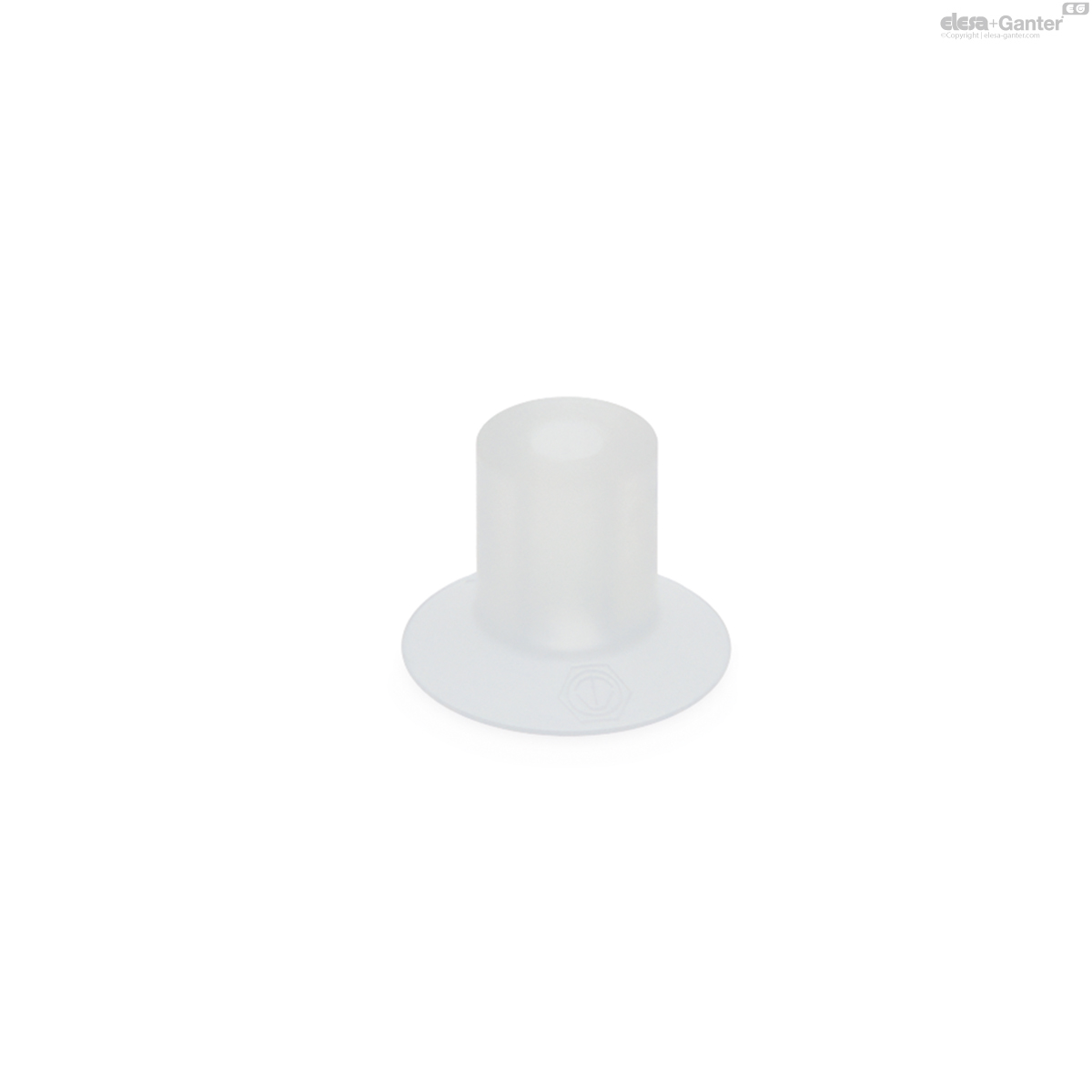

- VVH-09-S: silicone rubber, without support.

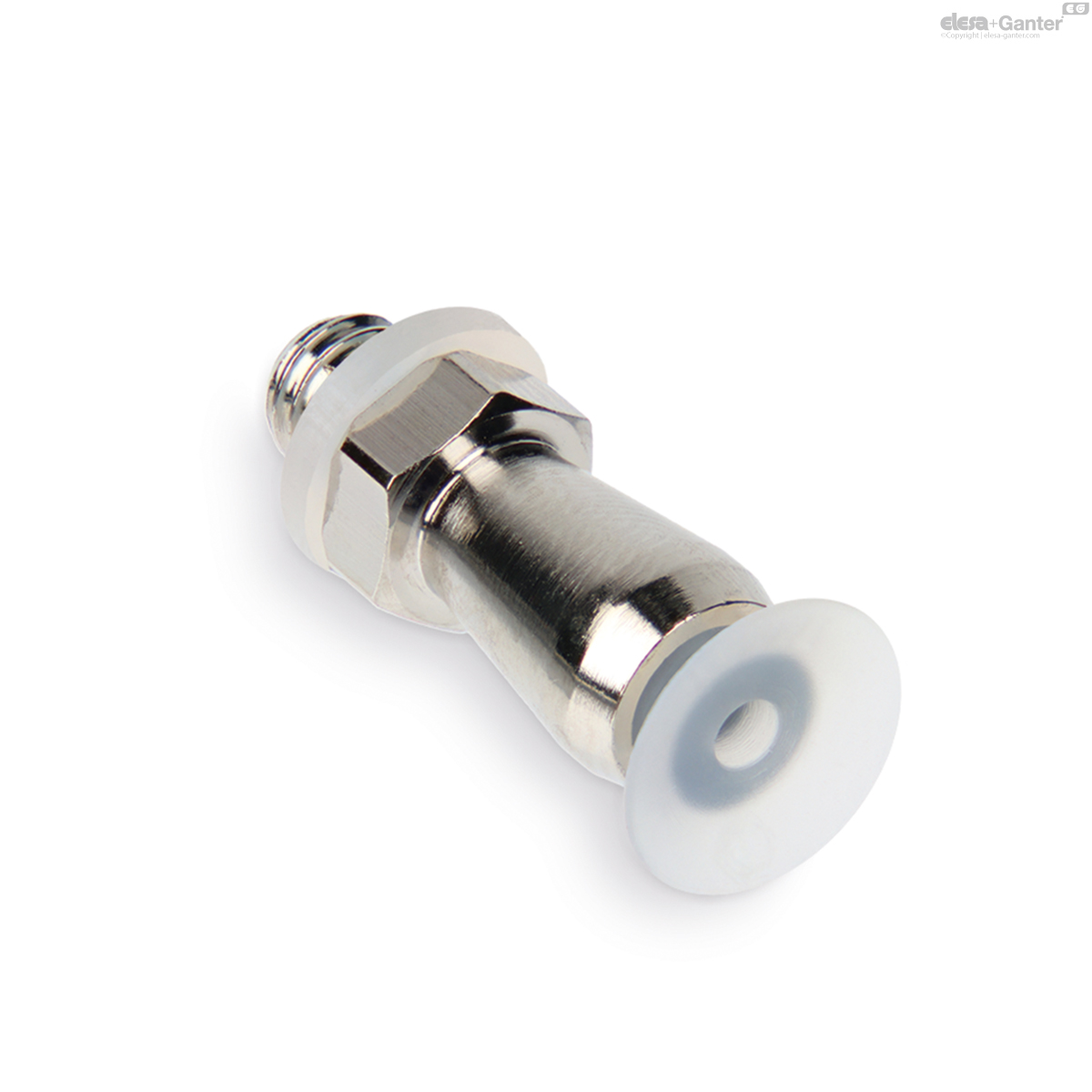

- VVH-09-T-S: silicone rubber, with support.
Features and applications
They are used in various sectors including electronics for gripping of electrical components, food packaging and, in general, for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).
Related products
VPD-F

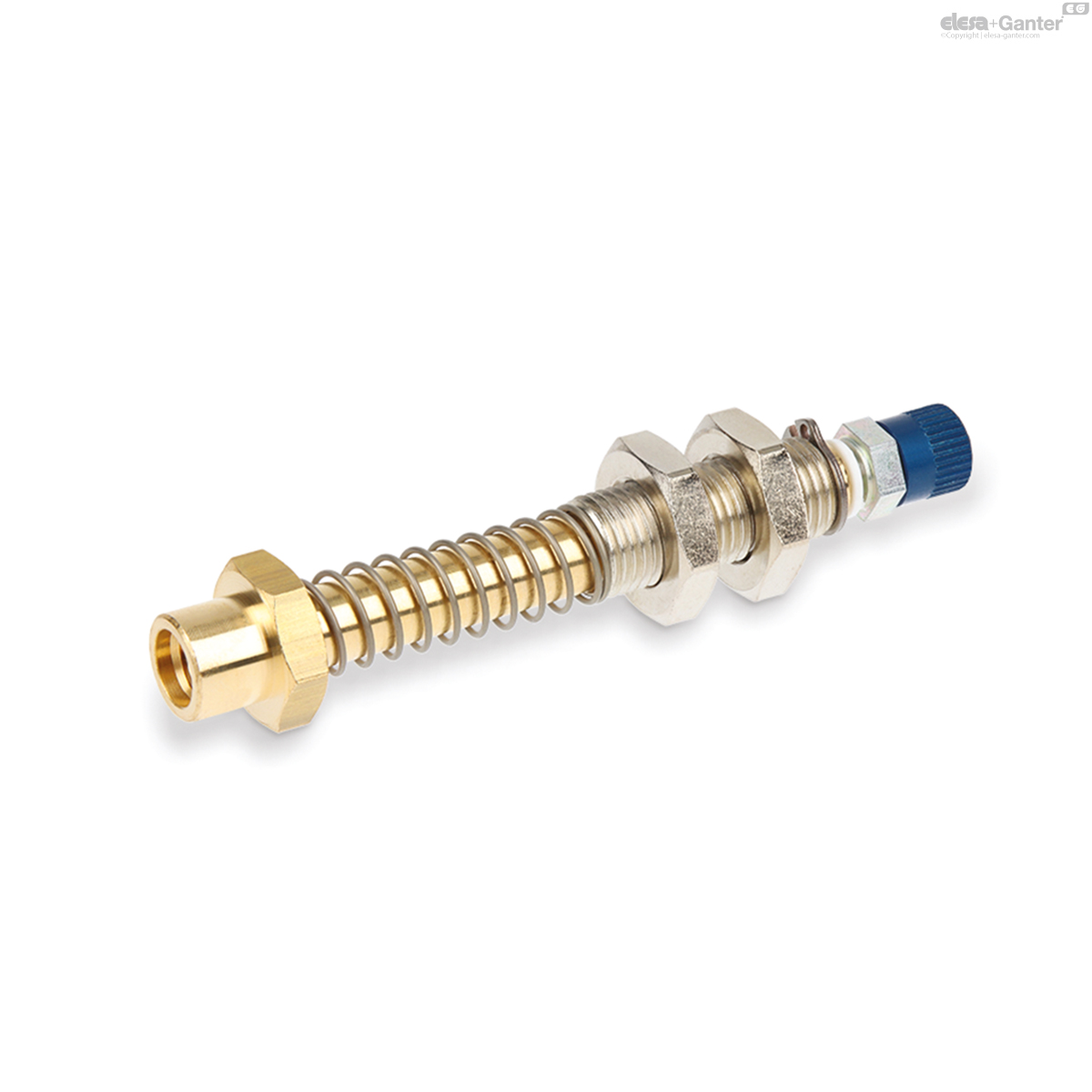

Mini vacuum cup spring suspensions
Threaded connection male or female, steel, aluminium and brass
VPF-F

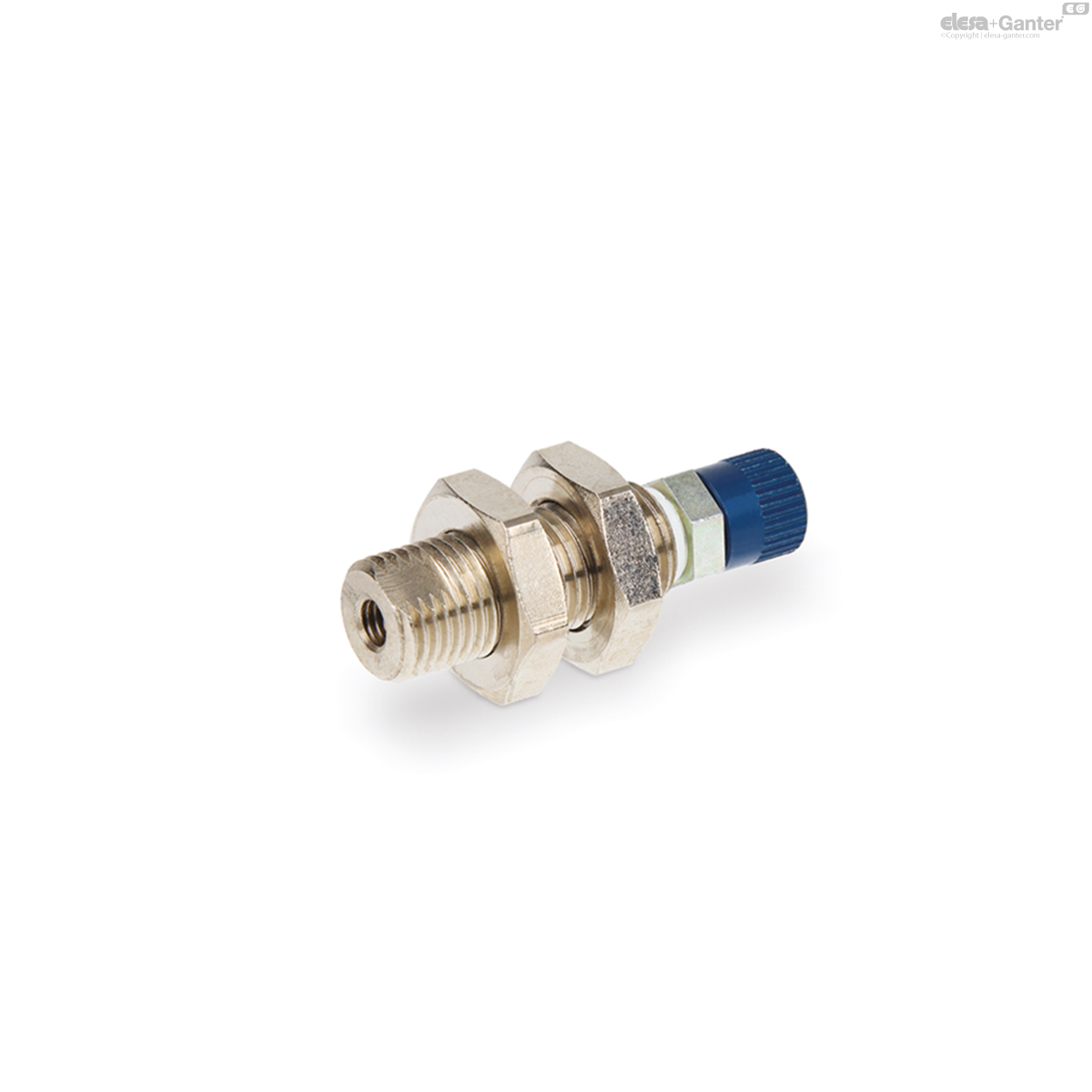

Mini vacuum cup suspensions - Fixed
Threaded connection female, steel, aluminium and brass
VPH-F

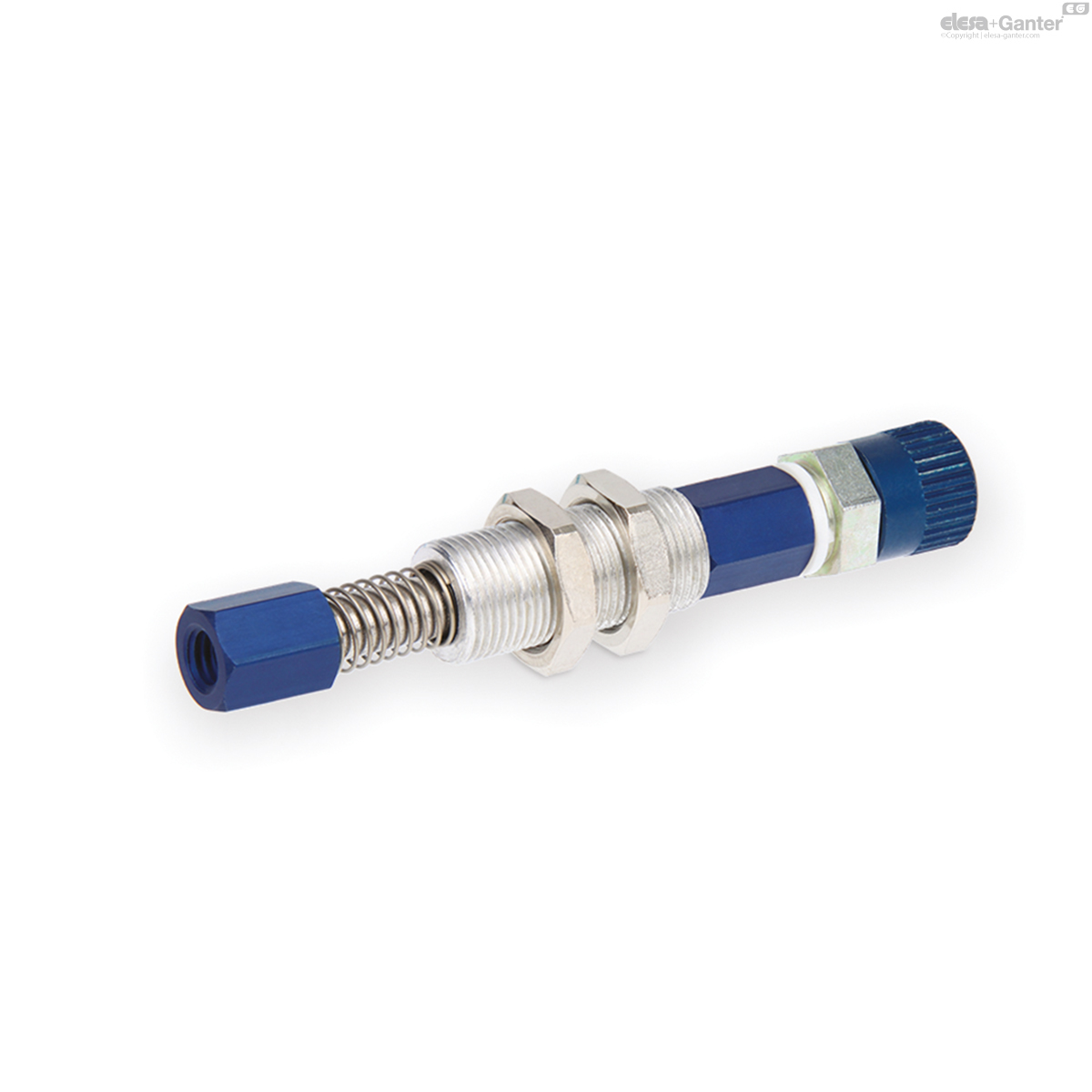

Micro vacuum cup spring suspensions
