Technical datasheet

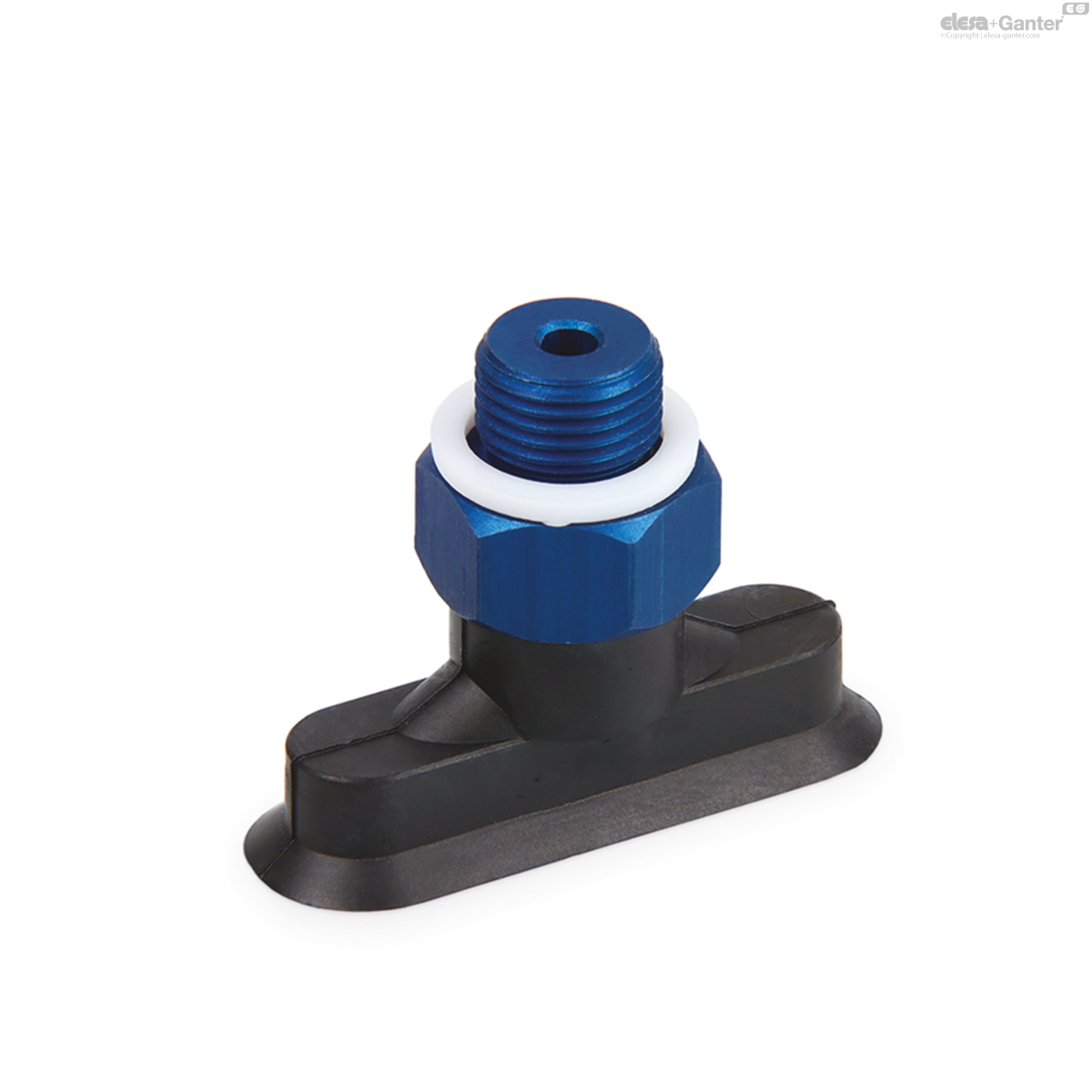

VVF-NElliptical vacuum cups
Natural rubber
With support, rubber
VVF-N
|
Catalogue
|
Description
|

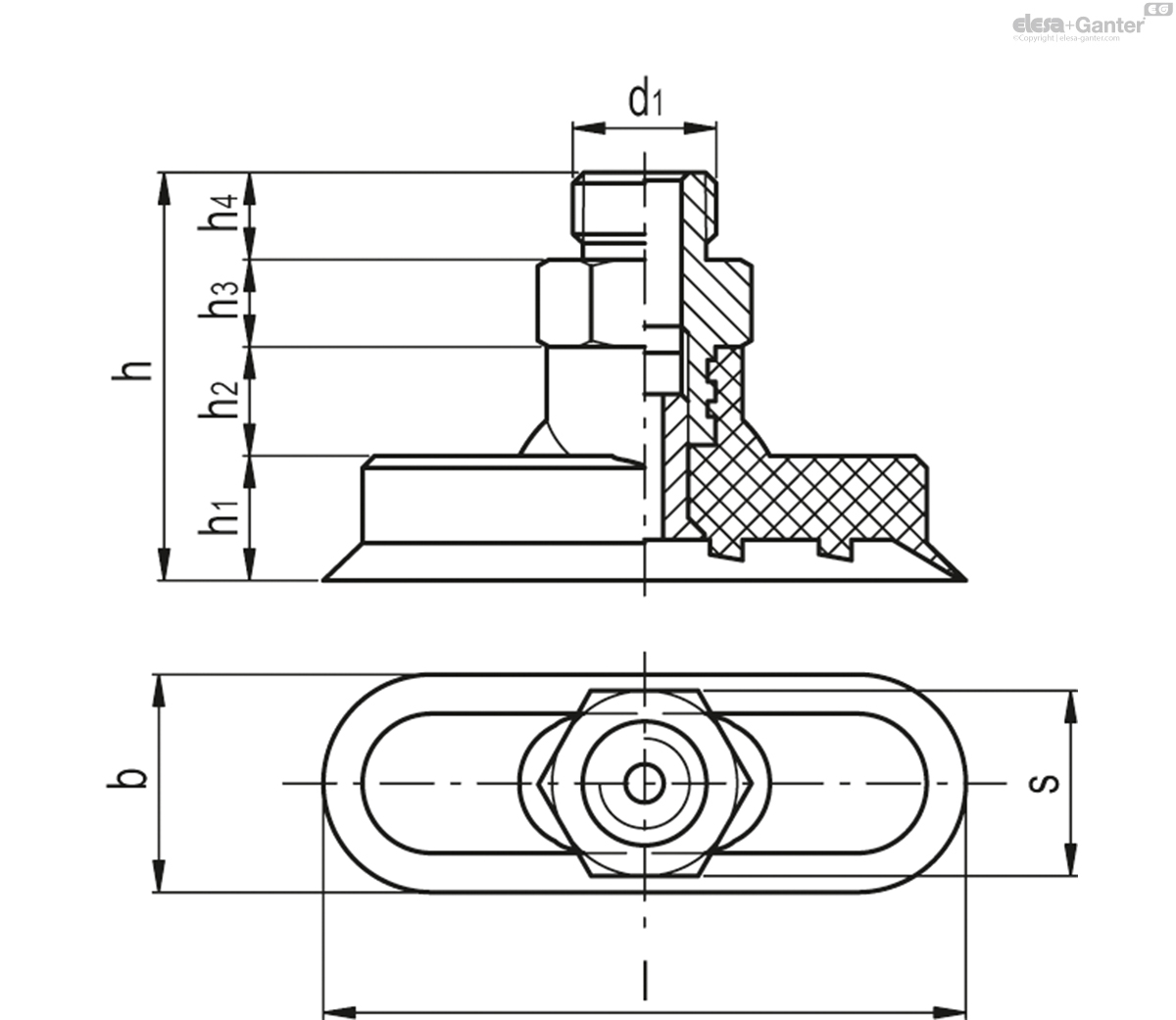

d1
|
h
|
h1
|
h2
|
h3
|
h4
|
b
|
l
|
s
|
F*
[Kg] |
Volumen#
[cm3] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VV.50002
|
VVF-08-24-G1/8-N
|
G1/8
|
26
|
5.3
|
6.7
|
7
|
7
|
8
|
24
|
14
|
0.4
|
0.2
|
|
VV.50005
|
VVF-10-30-G1/8-N
|
G1/8
|
26
|
5
|
7
|
7
|
7
|
10
|
30
|
14
|
0.7
|
0.2
|
|
VV.50008
|
VVF-12-36-G1/8-N
|
G1/8
|
27
|
6.6
|
6.4
|
7
|
7
|
12
|
36
|
14
|
1
|
0.5
|
|
VV.50011
|
VVF-15-45-G1/4-N
|
G1/4
|
38
|
7.7
|
14.3
|
8
|
8
|
15
|
45
|
17
|
1.5
|
1.2
|
|
VV.50014
|
VVF-20-60-G1/4-N
|
G1/4
|
37.5
|
11.5
|
10
|
8
|
8
|
20
|
60
|
17
|
2.7
|
2
|
|
VV.50017
|
VVF-25-75-G1/4-N
|
G1/4
|
37.3
|
13.7
|
7.6
|
8
|
8
|
25
|
75
|
17
|
4.3
|
5
|
|
VV.50020
|
VVF-28-85-G1/4-N
|
G1/4
|
37.7
|
13
|
8.7
|
8
|
8
|
28
|
85
|
17
|
5.5
|
6.8
|
|
VV.50023
|
VVF-35-100-G1/4-N
|
G1/4
|
38.2
|
13.5
|
8.7
|
8
|
8
|
35
|
100
|
17
|
8
|
11.9
|
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).
Aluminium support.
Standard executions
- VVF-A: oil-proof rubber.
- VVF-N: natural rubber.
- VVF-S: silicone rubber.
Features and applications
The elliptical shape makes them suitable for gripping, handling, and clipping materials or products with elongated surfaces.
They are used in many sectors including paper converting (for cardboard cases or boxes), ceramic sector (tiles or bricks) and with iron or stainless steel profiles or sheets.
