VDN.FP-ASolid handwheels

Without handle, drilled hub

Duroplast, steel hub

  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__g11020__.png
Without handle, drilled hub
Without handle, drilled hub Without handle, drilled hub
Without handle, drilled hub
VDN.FP-A
Without handle, drilled hub
Revolving handle, drilled hub
VDN.FP+I-A
Revolving handle, drilled hub
Fold-away handle, drilled hub
VDN.FP+IR-A
Fold-away handle, drilled hub
Fold-away handle, plain hub
VDN.FP+IR
Fold-away handle, plain hub
Without handle, plain hub
VDN.FP
Without handle, plain hub

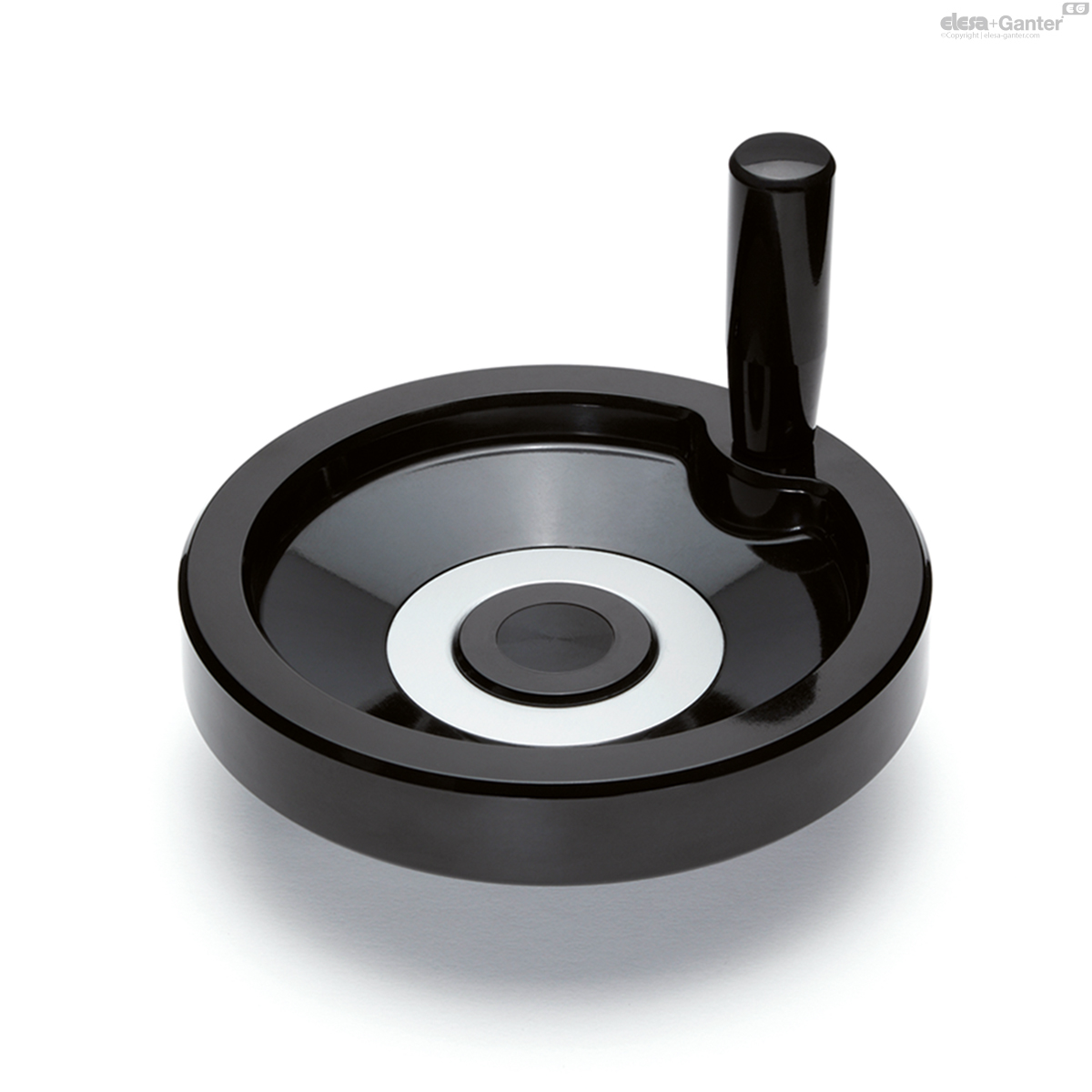

Revolving handle, plain hub
VDN.FP+I
Revolving handle, plain hub
Safety fold-away handle, solid hub
VDN.FP+IRS
Safety fold-away handle, solid hub
Safety fold-away handle, drilled hub
VDN.FP+IRS-A
Safety fold-away handle, drilled hub

VDN.FP-A-K

Reset
Catalogue

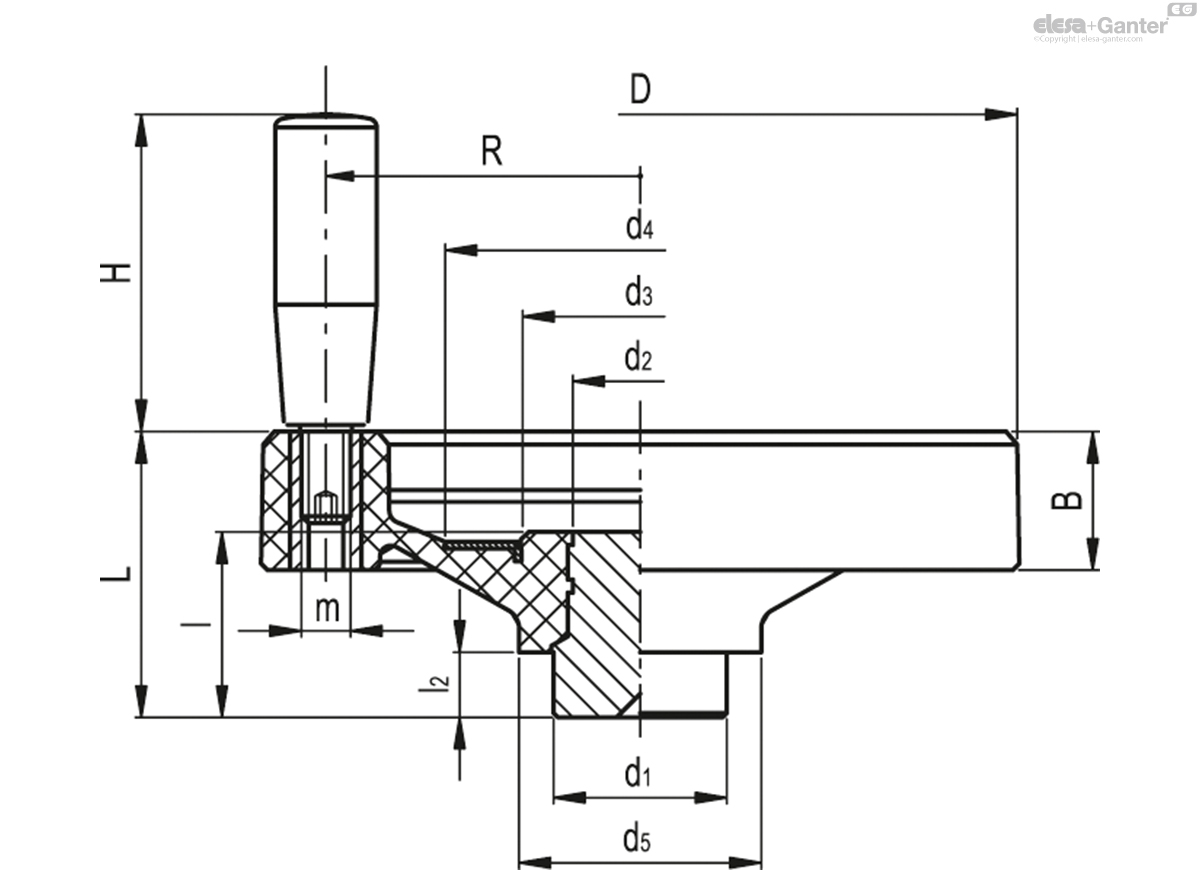

Description
D
dH9
L
B
d1
d2
d3
d4
d5
d'
l
73650-10-K
VDN.50 FP-A10-K
50
10
22
12
16
16
-
25
26
-
19
73670-10-K
VDN.63 FP-A10-K
63
10
28
13
20
20
-
31
28
-
24
73690-10-K
VDN.80 FP-A10-K
80
10
31
14
20
18
28
43
30
-
28
73690-12-K
VDN.80 FP-A12-K
80
12
31
14
20
18
28
43
30
-
28
73709-10-K
VDN.100 FP-A10-K
100
10
40
15
24
22
35
54
39
-
36
73709-12-K
VDN.100 FP-A12-K
100
12
40
15
24
22
35
54
39
-
36
73719-12-K
VDN.125 FP-A12-K
125
12
44
15
32
26.5
44
70
46
-
38
73719-14-K
VDN.125 FP-A14-K
125
14
44
15
32
26.5
44
70
46
-
38
73723-14-K
VDN.140 FP-A14-K
140
14
46
19
32
26.5
44
70
48
-
38
73729-14-K
VDN.150 FP-A14-K
150
14
49
18
32
26.5
44
70
48
-
38
73729-16-K
VDN.150 FP-A16-K
150
16
49
18
32
26.5
44
70
48
-
38
73739-16-K
VDN.175 FP-A16-K
175
16
54
19
40
33
55
90
56
-
43
73739-18-K
VDN.175 FP-A18-K
175
18
54
19
40
33
55
90
56
-
43
73749-18-K
VDN.200 FP-A18-K
200
18
58
22
40
33
55
90
60
-
43
73749-20-K
VDN.200 FP-A20-K
200
20
58
22
40
33
55
90
60
-
43
73769-22-K
VDN.250 FP-A22-K
249
22
65
25
49
40
66
110
70
-
44
73780-26-K
VDN.300 FP-A26-K
301
26
75
25
58
58
94
148
82
-
56

VDN.FP-A

Reset
Catalogue
Description
D
dH7
L
B
d1
d2
d3
d4
d5
l
l2
73650-10
VDN.50 FP-A10
50
10
22
12
16
16
-
25
26
19
9
73670-10
VDN.63 FP-A10
63
10
28
13
20
20
-
31
28
24
10
73690-10
VDN.80 FP-A10
80
10
31
14
20
18
28
43
30
28
10
73690-12
VDN.80 FP-A12
80
12
31
14
20
18
28
43
30
28
10
73709-10
VDN.100 FP-A10
100
10
40
15
24
22
35
54
39
36
12
73709-12
VDN.100 FP-A12
100
12
40
15
24
22
35
54
39
36
12
73719-12
VDN.125 FP-A12
125
12
44
15
32
26.5
44
70
46
38
15
73719-14
VDN.125 FP-A14
125
14
44
15
32
26.5
44
70
46
38
15
73723-14
VDN.140 FP-A14
140
14
46
19
32
26.5
44
70
48
38
15
73729-14
VDN.150 FP-A14
150
14
49
18
32
26.5
44
70
48
38
15
73729-16
VDN.150 FP-A16
150
16
49
18
32
26.5
44
70
48
38
15
73739-16
VDN.175 FP-A16
175
16
54
19
40
33
55
90
56
43
15
73739-18
VDN.175 FP-A18
175
18
54
19
40
33
55
90
56
43
15
73749-18
VDN.200 FP-A18
200
18
58
22
40
33
55
90
60
43
15
73749-20
VDN.200 FP-A20
200
20
58
22
40
33
55
90
60
43
15
73769-22
VDN.250 FP-A22
249
22
65
25
49
40
66
110
70
44
15
73780-26
VDN.300 FP-A26
301
26
75
25
58
58
94
148
82
56
18
# For maximum torque (C) and impact strength (L) see Technical Data.
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF77__.png

Material

High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Ring

Matte anodised aluminium.

(ELESA Original design - Reg. U.S. Pat. & TM Off.)

Standard executions

Black-oxide steel hub with H7 reamed hole.

H9 reamed hole for executions with keyway.

  • VDN.FP-A: without handle.
  • VDN.FP+I-A: with revolving handle I.301+x in Duroplast.
  • VDN.FP+IR-A: with fold-away handle IR.407 in Duroplast.
  • VDN.FP+IRS-A: with automatic fold-away safety handle 'Fold-O-matic'® type IRS.820 in technopolymer.

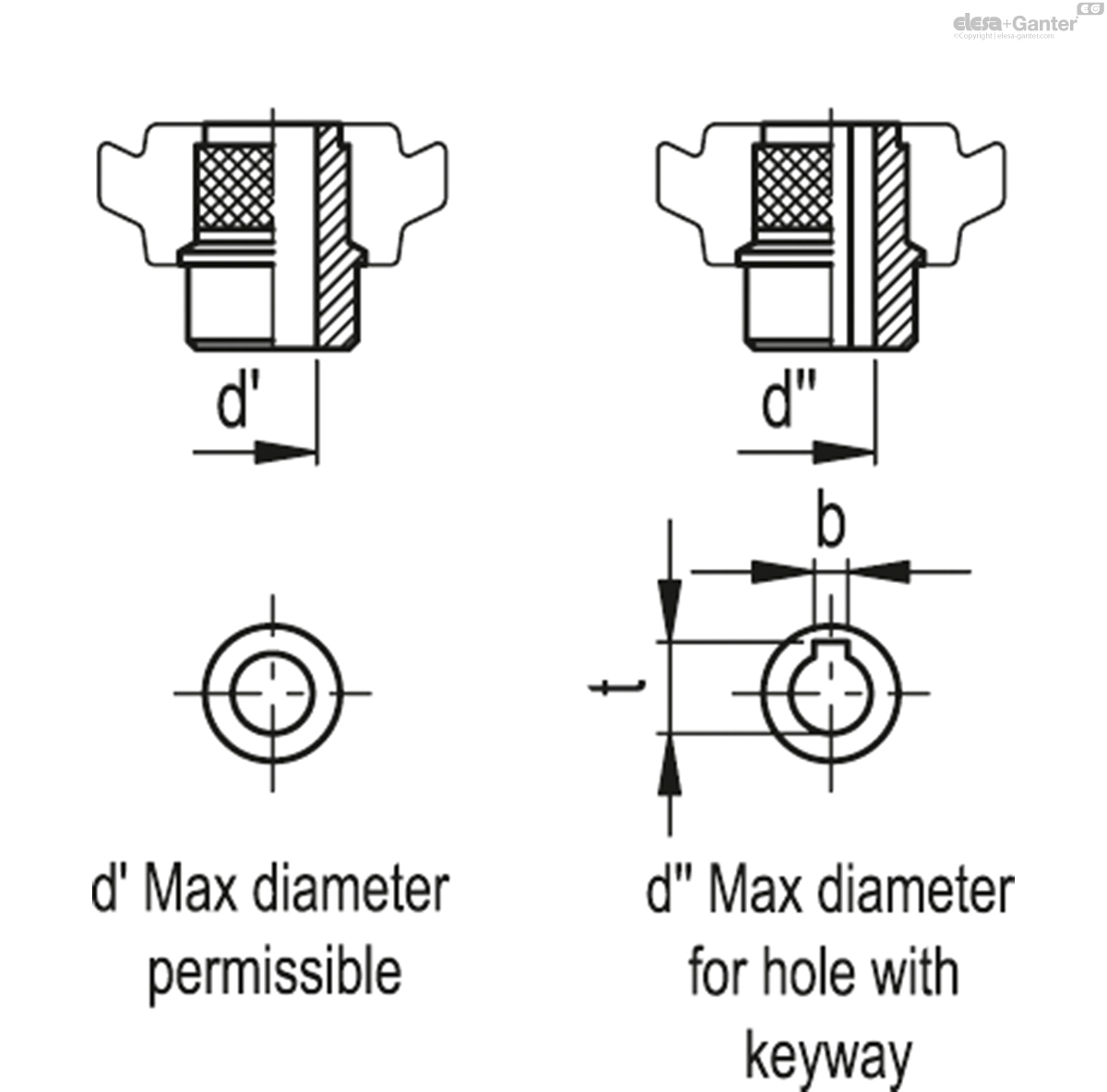

  • K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

73650-10-K VDN.50 FP-A10-K

Black-oxide steel hub not drilled in order to make holes different from the standard:

  • VDN.FP: without handle.
  • VDN.FP+I: with revolving handle I.301+x in Duroplast.
  • VDN.FP+IR: with fold-away handle IR.407 in Duroplast.
  • VDN.FP+IRS: with automatic fold-away safety handle 'Fold-O-matic'® IRS.820 in technopolymer.

Accessories on request

Axial retaining washer in black-oxide steel  GN 184.

Special executions on request

Handwheels with incorporated balancing counterweights.

Handwheels with cross holes according to GN 110.

Ergonomy

The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.
