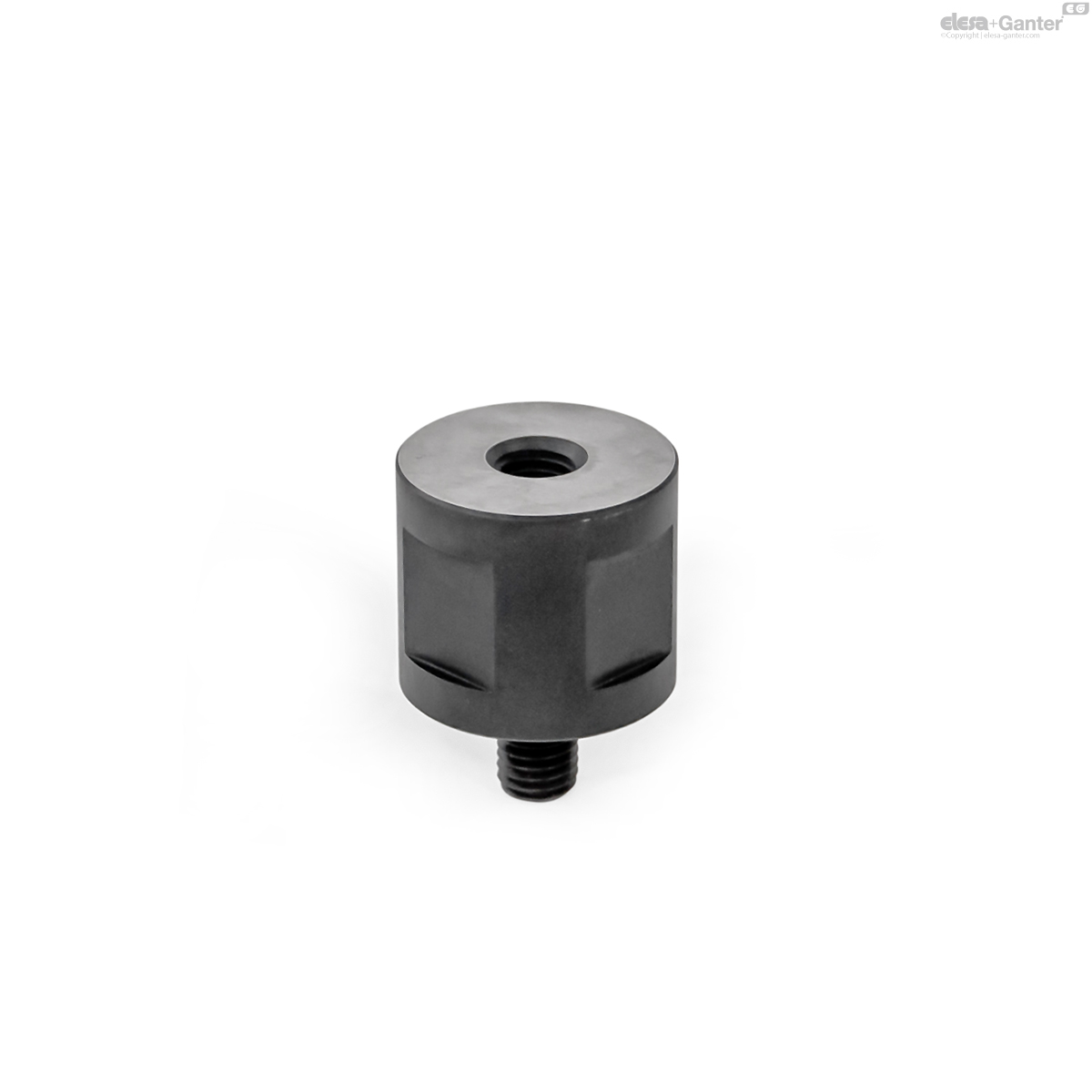

GN 9192.3Height Adjusting Cylinders

Height Adjusting Cylinders

for Down-Thrust Clamps GN 9192, Steel

  • RoHS
Height Adjusting Cylinders
Height Adjusting Cylinders

GN 9192.3

Catalogue

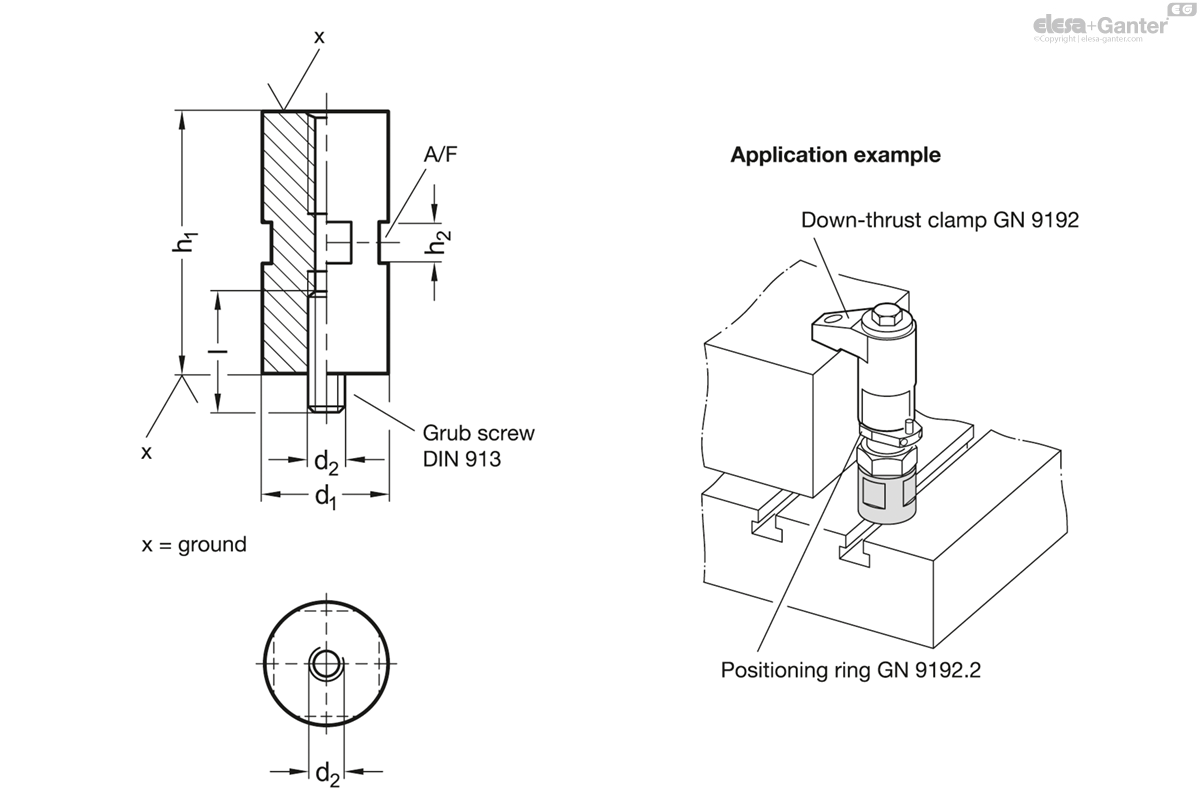

d1 -0.1
d2
h1 ±0.01
h2
Length l
A/F
weight
25
M 8
20
10
20
22
71
25
M 8
40
20
25
36
139
40
M 12
35
20
30
36
319
40
M 12
70
20
35
36
644

Height adjusting cylinder

Steel

  • Case-hardened
  • Blackened

Grub screw DIN 913

Steel, blackened

Height adjusting cylinders GN 9192.3 are used to increase the clamping height of down-thrust clamps GN 9192.

Height adjusting cylinders can also be used in combination with positioning elements and clamping pads to position contact points at a greater distance from the reference surface.

Related products

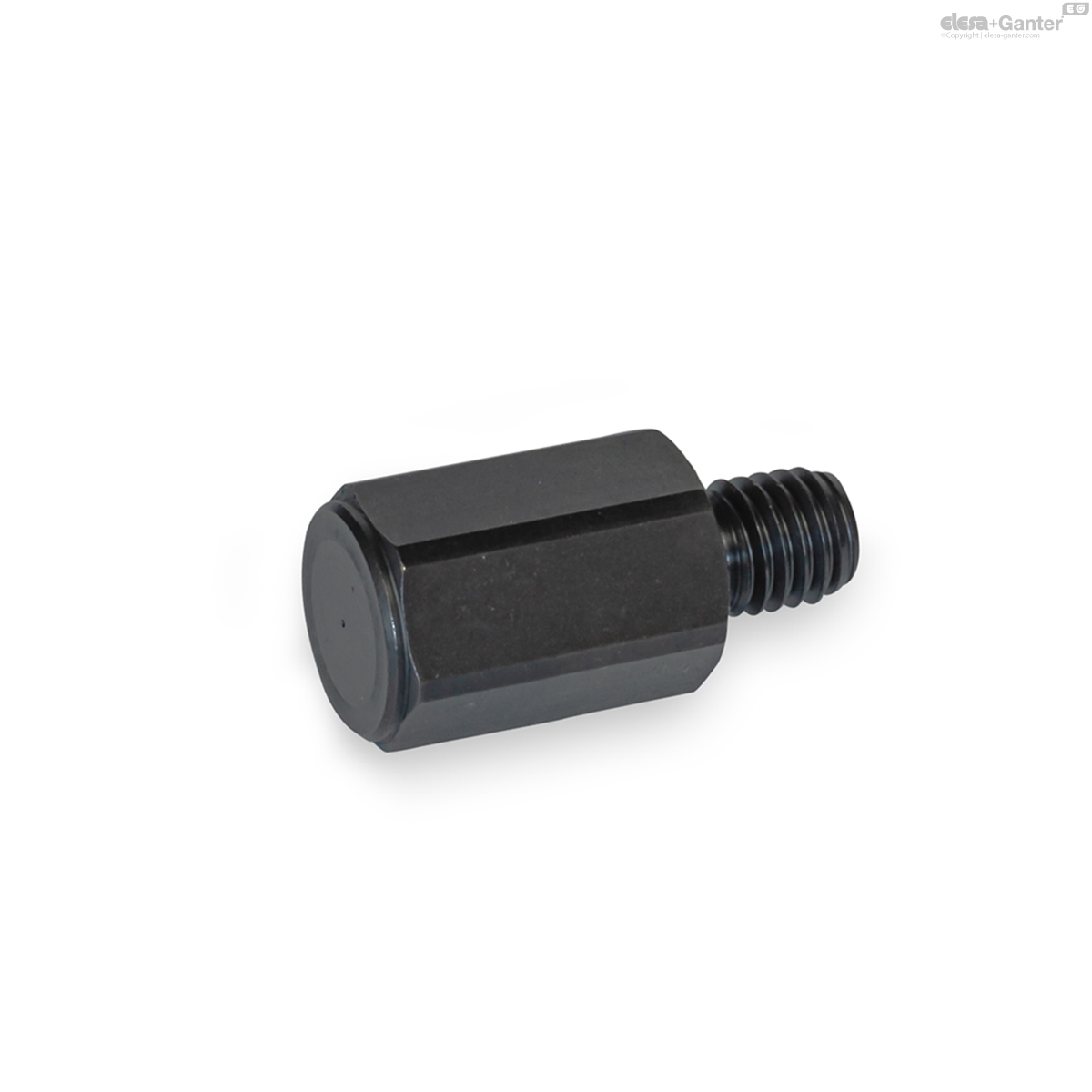

Smooth contact face, turned

GN 408.1-B

Positioning and supporting elements with threaded stud
Positioning elements

GN 409.1

Positioning elements with threaded stud
Smooth contact face

GN 709.1-B

Clamping Pads Steel, with Threaded Stud
Smooth contact face

GN 709.3-B

Clamping pads adjustable
With clamping screw

GN 9192-S

Down-Thrust Clamps Steel

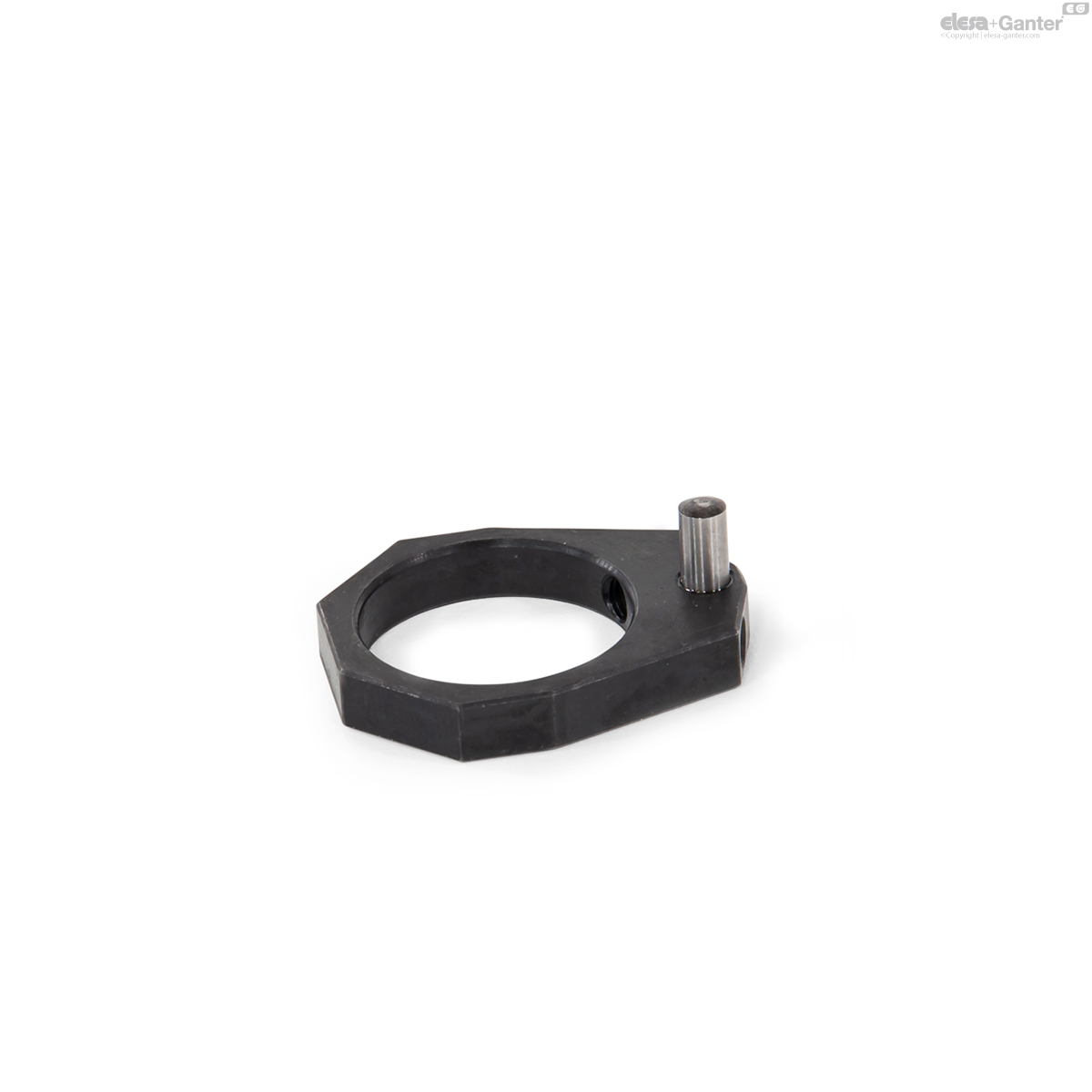

Positioning Ring
