GN 3113Combination Wrenches

Combination Wrenches

Aluminum, for Hygienic Design Standard Parts

  • Icons/__logo__HD__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Combination Wrenches
Combination Wrenches

GN 3113

Catalogue

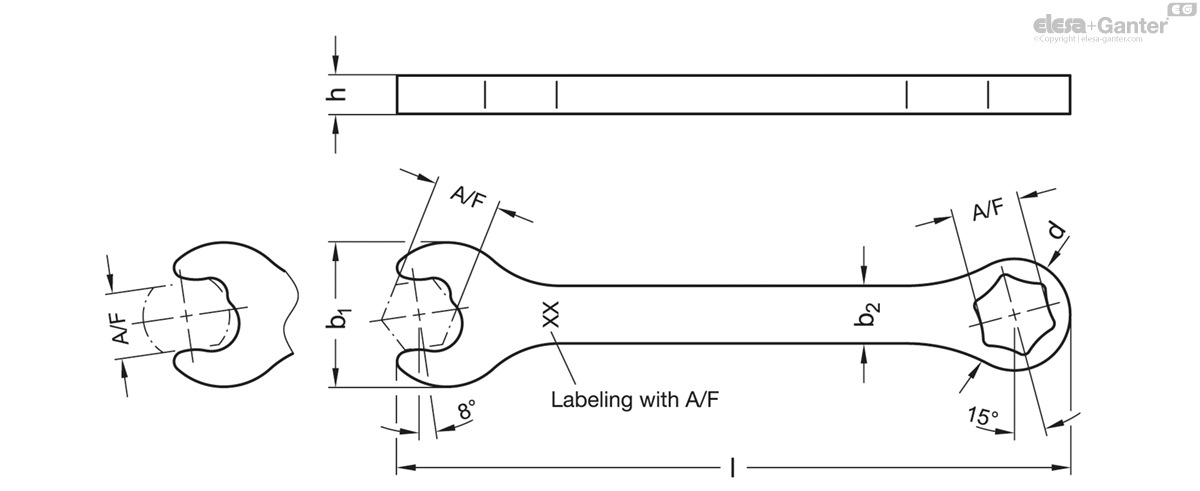

A/F
b1 ≈
b2 ≈
d ≈
h
Length l≈
7
15
6
12
5
100
9
8
17
7
13
5
105
10
10
21
9
16
5
125
15
11
23
9.5
18
5
135
18
13
27
11
21
5
150
24
14
30
12
23
5
155
27
15
32
16
24
6
160
36
16
33
14
26
6
165
39
17
36
15
28
6
170
43
18
38
15
29
6
175
47
19
40
17
31
6
180
52
22
46
19
36
8
185
79
24
50
21
39
8
200
94
27
56
23
44
8
220
117
30
63
26
48
10
240
176

Coding

  • Coding RM: Open-ended combination wrench

Type

  • Type SF: Hex, flat

Aluminum AL

Matte finish M

  • Tumbled for A/F 7 ... A/F 19
  • Chamfered for A/F 22 ... A/F 30

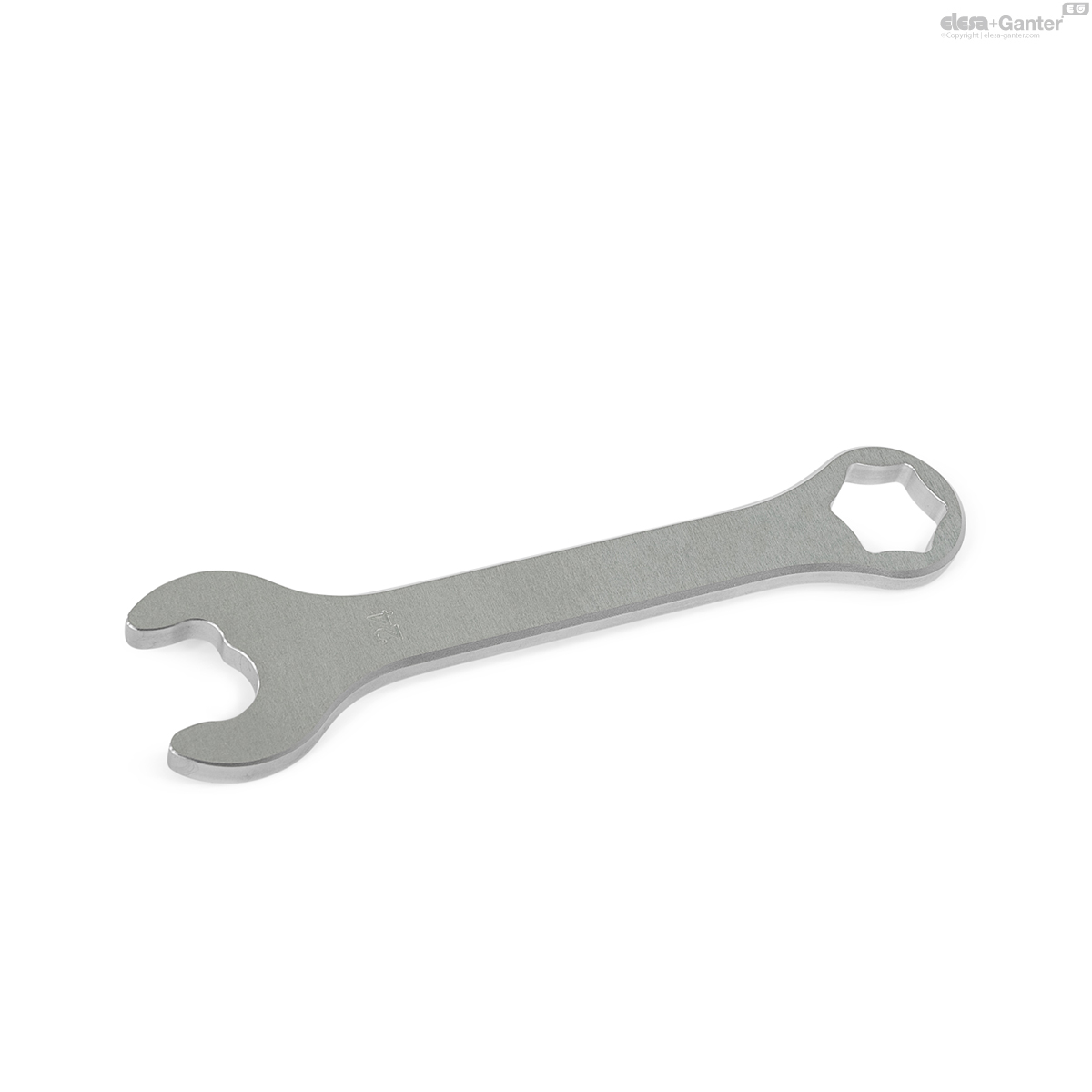

Combination wrenches GN 3113 are used to assemble and adjust Hygienic Design standard parts with two or six wrench flats.

In conjunction with the aluminum material used, the rounded geometry of the wrench surfaces transfers the torque to the screw head without causing damage.

The combination wrenches are designed for manual operation with moderate torques.
