GN 821Toggle latches

Steel

Steel / Stainless Steel

Technical datasheet

GN 821

Reset

Catalogue	Size	F_H in N	b₁	b₂	b₃	b₄	h₁	h₂	h₃	h₄	l₁ min.	l₂ min.

GN 821-400-A-ST-1	400	4000	46.5	45	38	27	22	12	-	-	144	120.5
GN 821-400-A-ST-2	400	4000	46.5	45	38	27	22	12	-	-	-	-
GN 821-400-S-ST-1	400	4000	46.5	45	38	27	22	12	28.5	-	147	123.5
GN 821-400-S-ST-2	400	4000	46.5	45	38	27	22	12	28.5	-	-	-
GN 821-400-SV-ST-1	400	4000	46.5	45	38	27	22	12	-	32.5	144	120.5
GN 821-400-SV-ST-2	400	4000	46.5	45	38	27	22	12	-	32.5	-	-
GN 821-400-SS-ST-1	400	4000	46.5	45	38	27	22	12	-	-	147	123.5
GN 821-400-SS-ST-2	400	4000	46.5	45	38	27	22	12	-	-	-	-

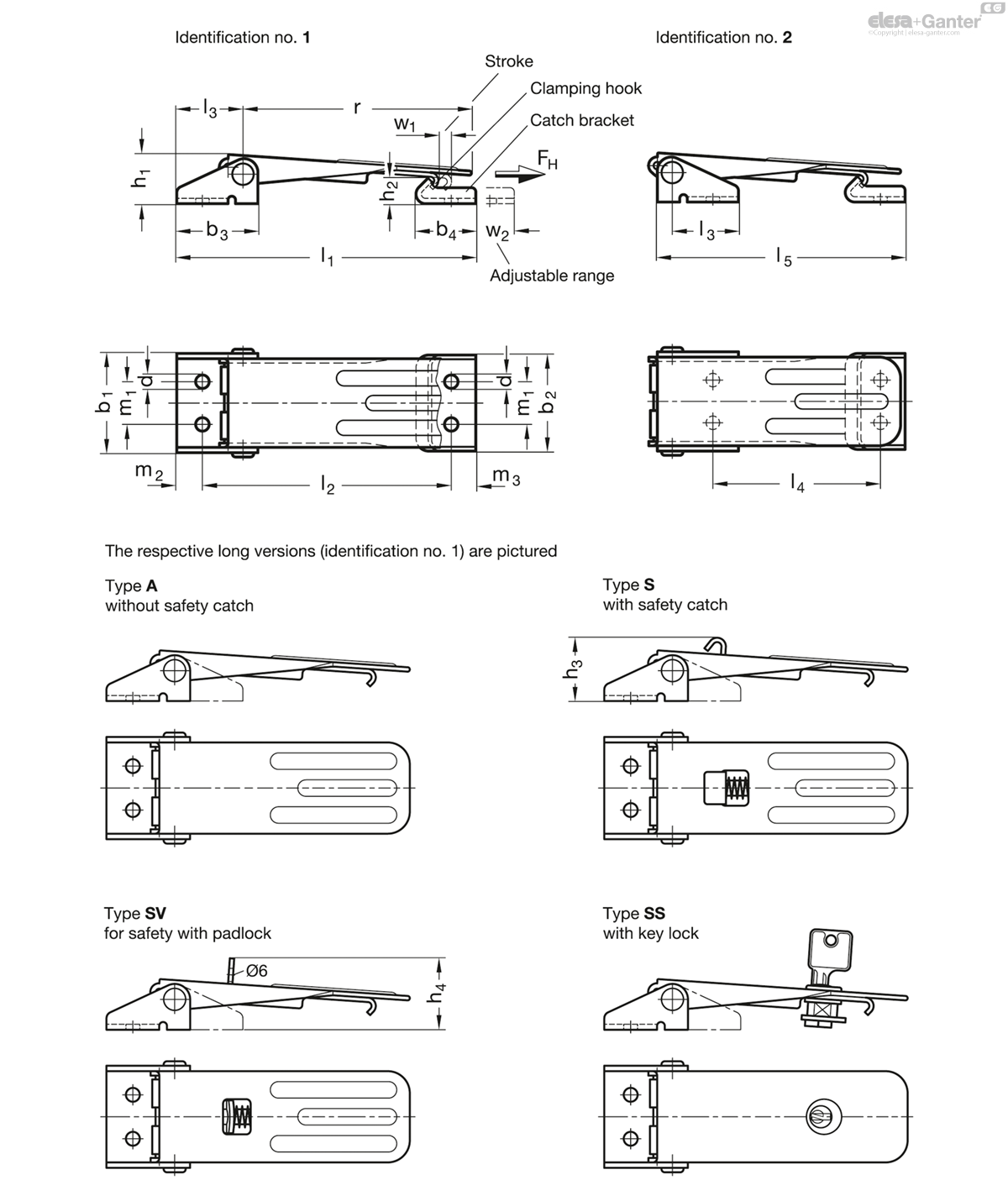

Types

Type A: without safety catch

Type S: with safety catch

Type SV: for safety catch with padlock

Type SS: with key lock

Identification No.

No. 1: long Type

No. 2: short Type

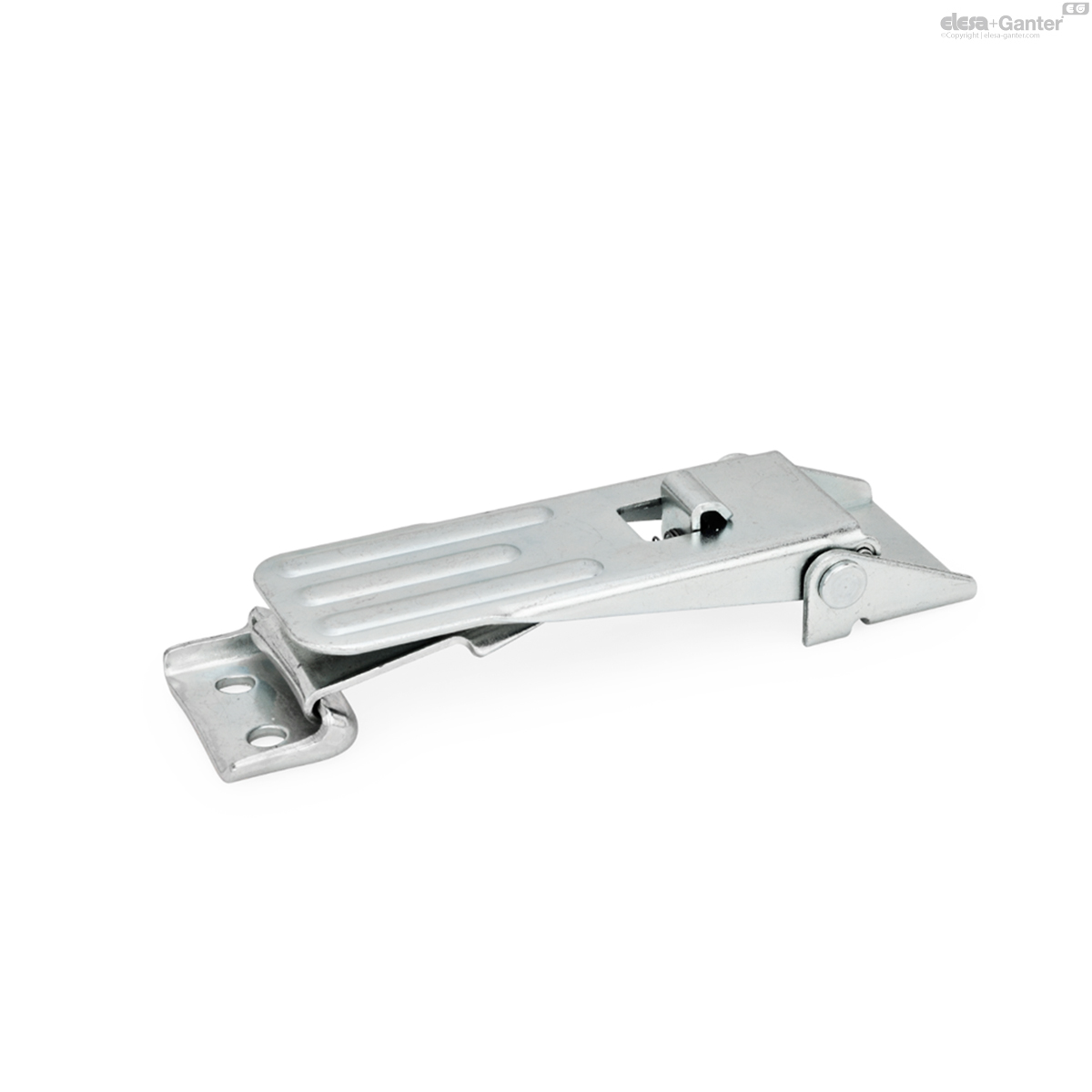

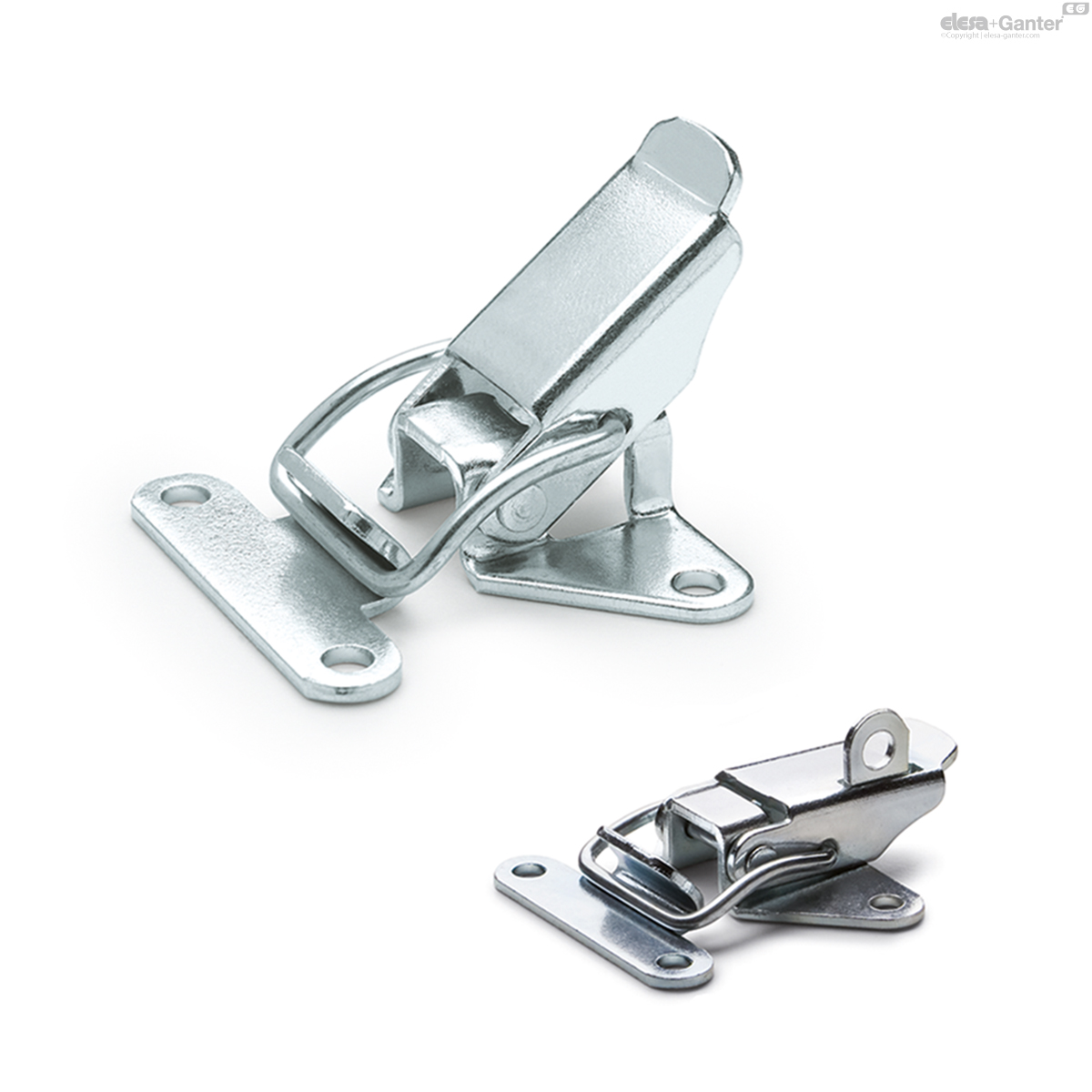

Version in Steel ST

zinc plated, blue passivated

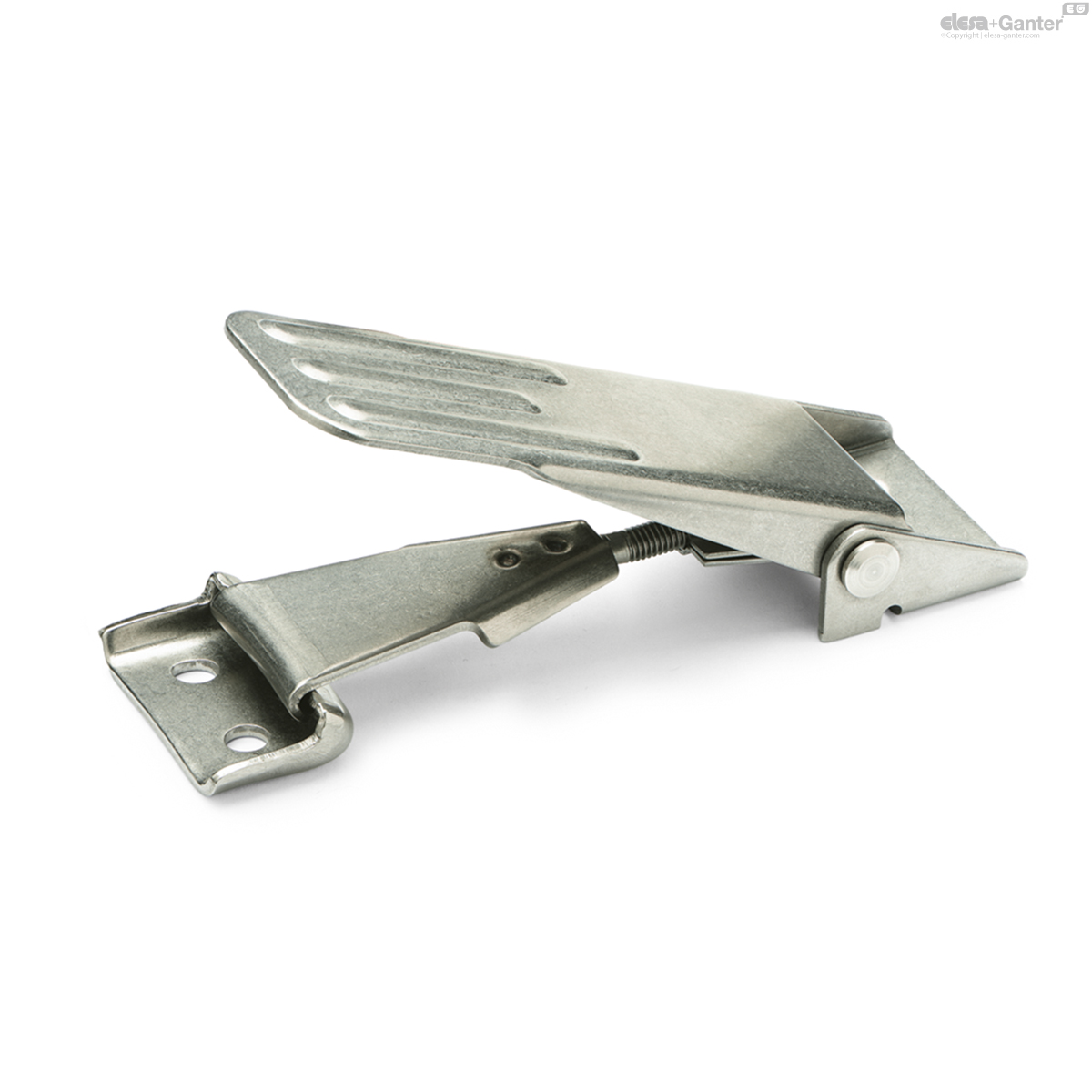

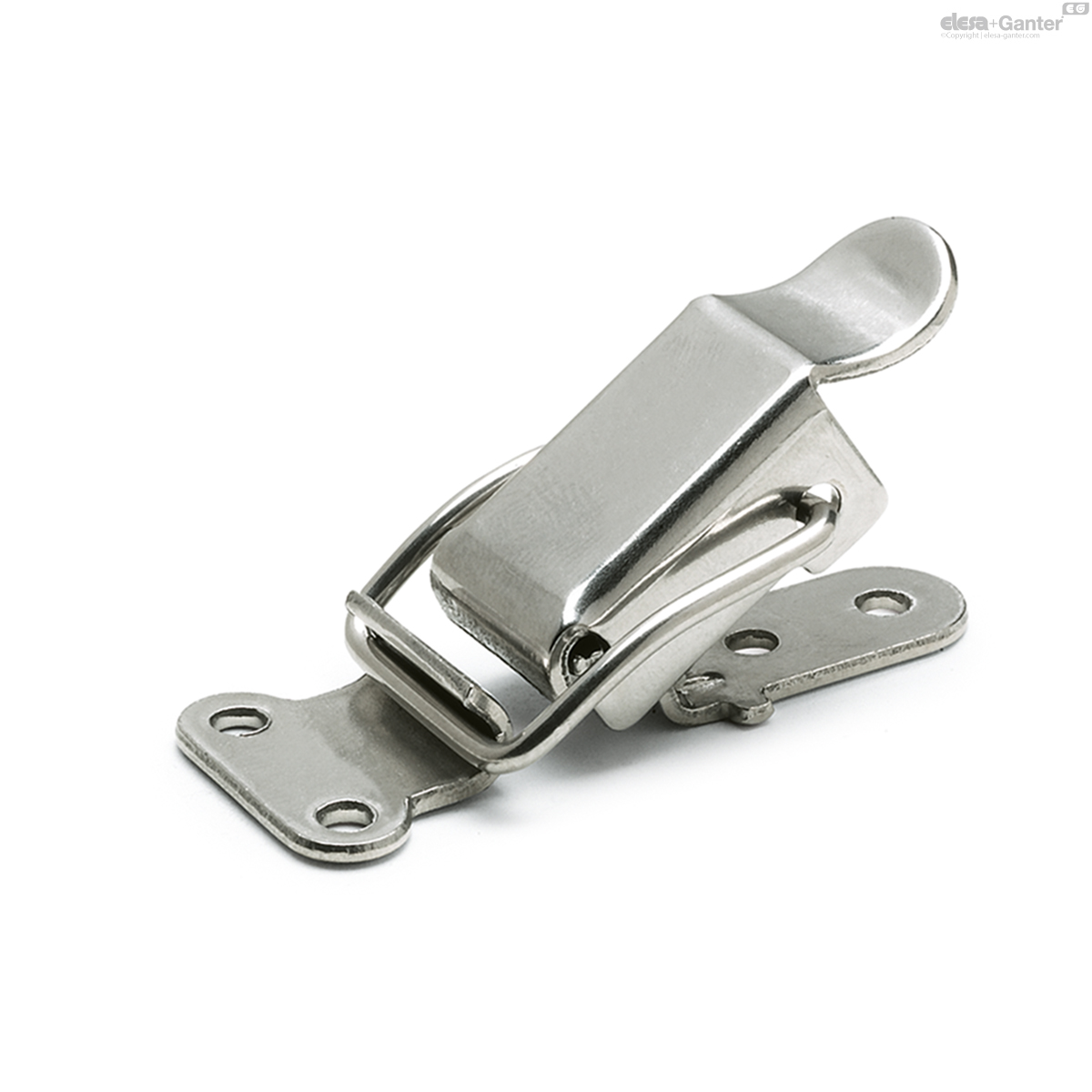

Version in Stainless Steel NI

only Type A, S and SV

Parts in sheet metal AISI 304

Clamping hook / pin AISI 303

GN 821 toggle latches are used among others for the secure holding of flaps and container lids. The clamps will lock securely over the centre and are thus vibration proof.

The stroke w₁ of the clamping hook can pull the parts to be clamped together by up to 6 mm. The range w₂ can be adjusted on the M6 threaded spindle at the clamping hook.

The types S, SV and SS prevent unwanted release of the toggle latches.

In the standard version the toggle latches of type SS have the same lock and / or the same key.

The load specified in the table are simply guide line values for a nominal static pulling force which the lock can withstand. Depending on the conditions under which these toggle latches are used such as vibration or shock loads, the holding capacity can be adversely affected.

The catch bracket is included.
