ESP.Guard safety handles

Guard safety handles

Technopolymer

  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__g11030__.png
Guard safety handles
Guard safety handles
C3 - RAL 7035
C5 - RAL 5024
C17 - RAL 6017
C4 - RAL 1021
C2 - RAL 2004
C6 - RAL 3000
C1 - RAL 7021

ESP.

Reset
Catalogue
Description
L
f±0.5
d
s
h
h1
h2
C
l
l1
l2
265111-C1
ESP.110-EH-C1
114
93.5
6.5
10
33
7
11
35
19
74
9.5
265151-C1
ESP.110-SH-C1
114
93.5
6.5
-
33
7
11
35
19
74
9.5
  • Icons/__logo__ERGO__.png
  • Icons/__logo__IF95__.png
  • Icons/__logo__Design9697__.png

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Screw cover

  • ECO.S: polyester based technopolymer (PBT) in Elecolors colours, glossy finish, press-fit assembly. Supplied.

Available also as accessories sold separately (see table).

Standard executions

  • ESP-EH: pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.
  • ESP-SH: pass-through holes for countersunk head screws.

Features and applications

ESP handles have been especially designed to fit machine guards or automation systems with double-leaf door. The special closed design of the handle represents a safety element for the operator's fingers. Moreover, the coloured cover improves the visibility of the handle and offers the possibility of product customisation.

Technical data

Tensile stress: F1 value reported in the table is the result of breaking tests carried out with an appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Maximum tightening torque for screw assembly 3 Nm.

Accessories on request

  • ECO.S: polyester based technopolymer (PBT) cover, in Elecolors colours, glossy finish, press-fit assembly (see table).
Related products

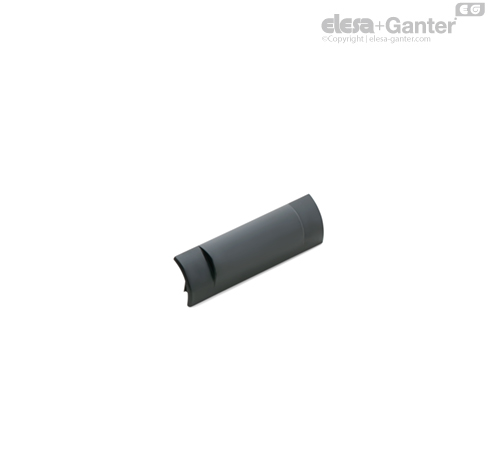

Cover
