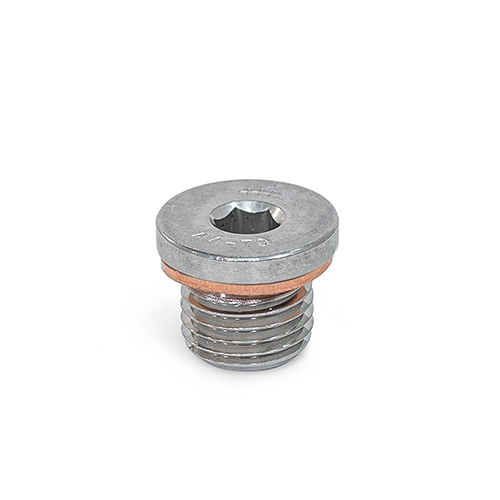

DIN 908-A4Threaded Plugs
Stainless steel
Steel / Stainless Steel, with Collar and Internal Hex
|
Catalogue
|
d1
|
d2 h14
|
d3
|
d4
|
l1 ±0.2
|
l2 +0.5
|
s
|
A/F
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 908-A4-M8x1-AA
|
M 8 x 1
|
12
|
8.3
|
11.5
|
8
|
3
|
1
|
4
|
5
|
|
DIN 908-A4-M10x1-AA
|
M 10 x 1
|
14
|
10.3
|
13.5
|
8
|
3
|
1
|
5
|
7
|
|
DIN 908-A4-M12x1,5-AA
|
M 12 x 1.5
|
17
|
12.3
|
16
|
12
|
3
|
1.5
|
6
|
12
|
|
DIN 908-A4-M14x1,5-AA
|
M 14 x 1.5
|
19
|
14.3
|
18
|
12
|
3
|
1.5
|
6
|
17
|
|
DIN 908-A4-M16x1,5-AA
|
M 16 x 1.5
|
21
|
16.3
|
20
|
12
|
3
|
1.5
|
8
|
22
|
|
DIN 908-A4-M18x1,5-AA
|
M 18 x 1.5
|
23
|
18.3
|
22
|
12
|
4
|
1.5
|
8
|
31
|
|
DIN 908-A4-M20x1,5-AA
|
M 20 x 1.5
|
25
|
20.3
|
24
|
14
|
4
|
1.5
|
10
|
40
|
|
DIN 908-A4-M22x1,5-AA
|
M 22 x 1.5
|
27
|
22.3
|
27
|
14
|
4
|
1.5
|
10
|
48
|
|
DIN 908-A4-M24x1,5-AA
|
M 24 x 1.5
|
29
|
24.3
|
29
|
14
|
4
|
2
|
12
|
56
|
|
DIN 908-A4-G1/8-AA
|
G 1/8
|
14
|
10
|
13.5
|
8
|
3
|
1
|
5
|
7
|
|
DIN 908-A4-G1/4-AA
|
G 1/4
|
18
|
13.4
|
18
|
12
|
3
|
1.5
|
6
|
14
|
|
DIN 908-A4-G3/8-AA
|
G 3/8
|
22
|
17
|
21
|
12
|
3
|
1.5
|
8
|
24
|
|
DIN 908-A4-G1/2-AA
|
G 1/2
|
26
|
21.3
|
26
|
14
|
4
|
1.5
|
10
|
43
|
|
DIN 908-A4-G3/4-AA
|
G 3/4
|
32
|
26.7
|
32
|
16
|
4
|
2
|
12
|
77
|
|
DIN 908-A4-G1-AA
|
G 1
|
39
|
33.5
|
39
|
16
|
5
|
2
|
17
|
124
|
|
DIN 908-A4-G11/4-AA
|
G 1 1/4
|
49
|
42.2
|
49
|
16
|
5
|
2
|
22
|
177
|
|
DIN 908-A4-G11/2-AA
|
G 1 1/2
|
55
|
48.1
|
55
|
16
|
5
|
2
|
24
|
245
|
Types
- Type A: Without sealing ring
- Type AC: With sealing ring in copper
- Type AA: With sealing ring in aluminum
- Type AN: With sealing ring in stainless steel
Threaded plug
- Steel ST
- Zinc plated, blue passivated
- Property class 5.8
- Stainless steel AISI 316 / AISI 316Ti A4
Sealing ring DIN 7603
for type AC / AA / AN
Threaded plugs DIN 908 are used, for example, on filling, drain or inspection openings of gear boxes and hydraulic tanks.
