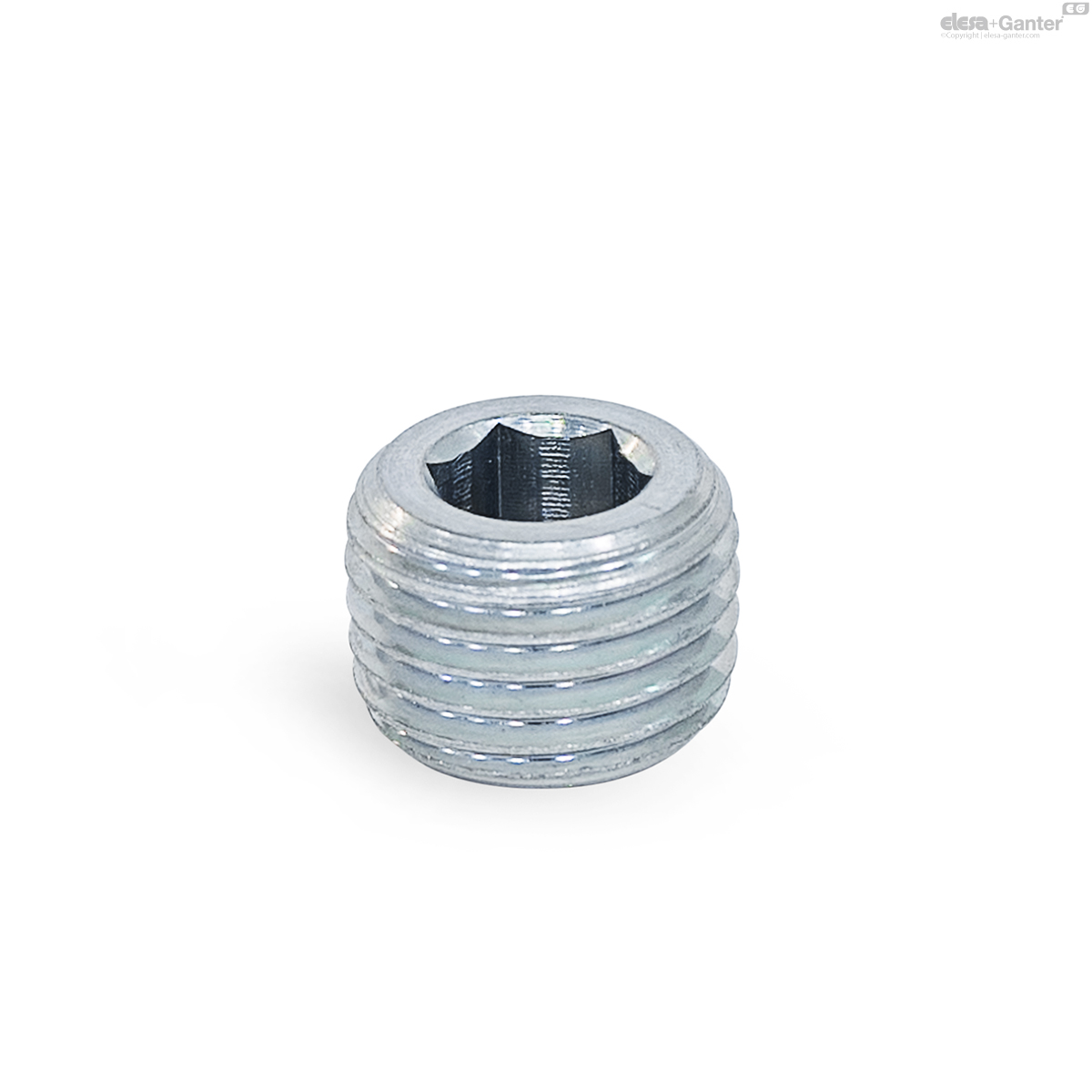

DIN 906-STThreaded Plugs
Steel
Steel / Stainless Steel, with Conical Thread
|
Catalogue
|
d
|
h
|
A/F
|
|
|---|---|---|---|---|
|
|
|
|
|
|
|
DIN 906-ST-M6x1-GPC
|
M 6 x 1
|
6
|
3
|
1
|
|
DIN 906-ST-M8x1-GPC
|
M 8 x 1
|
8
|
4
|
2
|
|
DIN 906-ST-M10x1-GPC
|
M 10 x 1
|
8
|
5
|
3
|
|
DIN 906-ST-M12x1,5-GPC
|
M 12 x 1.5
|
10
|
6
|
6
|
|
DIN 906-ST-M14x1,5-GPC
|
M 14 x 1.5
|
10
|
7
|
8
|
|
DIN 906-ST-M16x1,5-GPC
|
M 16 x 1.5
|
10
|
8
|
10
|
|
DIN 906-ST-M18x1,5-GPC
|
M 18 x 1.5
|
10
|
8
|
14
|
|
DIN 906-ST-M20x1,5-GPC
|
M 20 x 1.5
|
10
|
10
|
17
|
|
DIN 906-ST-M22x1,5-GPC
|
M 22 x 1.5
|
10
|
10
|
22
|
|
DIN 906-ST-M24x1,5-GPC
|
M 24 x 1.5
|
12
|
12
|
30
|
|
DIN 906-ST-M26x1,5-GPC
|
M 26 x 1.5
|
12
|
12
|
37
|
|
DIN 906-ST-M30x1,5-GPC
|
M 30 x 1.5
|
12
|
17
|
44
|
|
DIN 906-ST-M36x1,5-GPC
|
M 36 x 1.5
|
15
|
19
|
86
|
|
DIN 906-ST-M42x1,5-GPC
|
M 42 x 1.5
|
18
|
22
|
143
|
|
DIN 906-ST-M45x1,5-GPC
|
M 45 x 1.5
|
18
|
22
|
163
|
|
DIN 906-ST-M48x1,5-GPC
|
M 48 x 1.5
|
20
|
24
|
210
|
|
DIN 906-ST-R1/8-GPC
|
R 1/8
|
8
|
5
|
4
|
|
DIN 906-ST-R1/4-GPC
|
R 1/4
|
10
|
7
|
7
|
|
DIN 906-ST-R3/8-GPC
|
R 3/8
|
10
|
8
|
12
|
|
DIN 906-ST-R1/2-GPC
|
R 1/2
|
10
|
10
|
19
|
|
DIN 906-ST-R3/4-GPC
|
R 3/4
|
12
|
12
|
38
|
|
DIN 906-ST-R1-GPC
|
R 1
|
12
|
17
|
57
|
|
DIN 906-ST-R11/4-GPC
|
R 1 1/4
|
18
|
22
|
134
|
|
DIN 906-ST-R11/2-GPC
|
R 1 1/2
|
20
|
24
|
199
|
null
Types
- Type A: Without thread coating
- Type GPC: With micro encapsulation
Steel ST
Zinc plated, blue passivated
Stainless steel AISI 303 NI
Stainless steel AISI 316Ti A4
Thread coating (Type GPC)
Precote 5
- White
- Operating temperature -60 °C to +150 °C
Threaded plugs DIN 906 are used to close bore holes with cylindrical internal thread.
The tightness depends on the medium, pressure, temperature and material pairing. The type GPC with thread coating provides a higher degree of safety.
