Technical datasheet

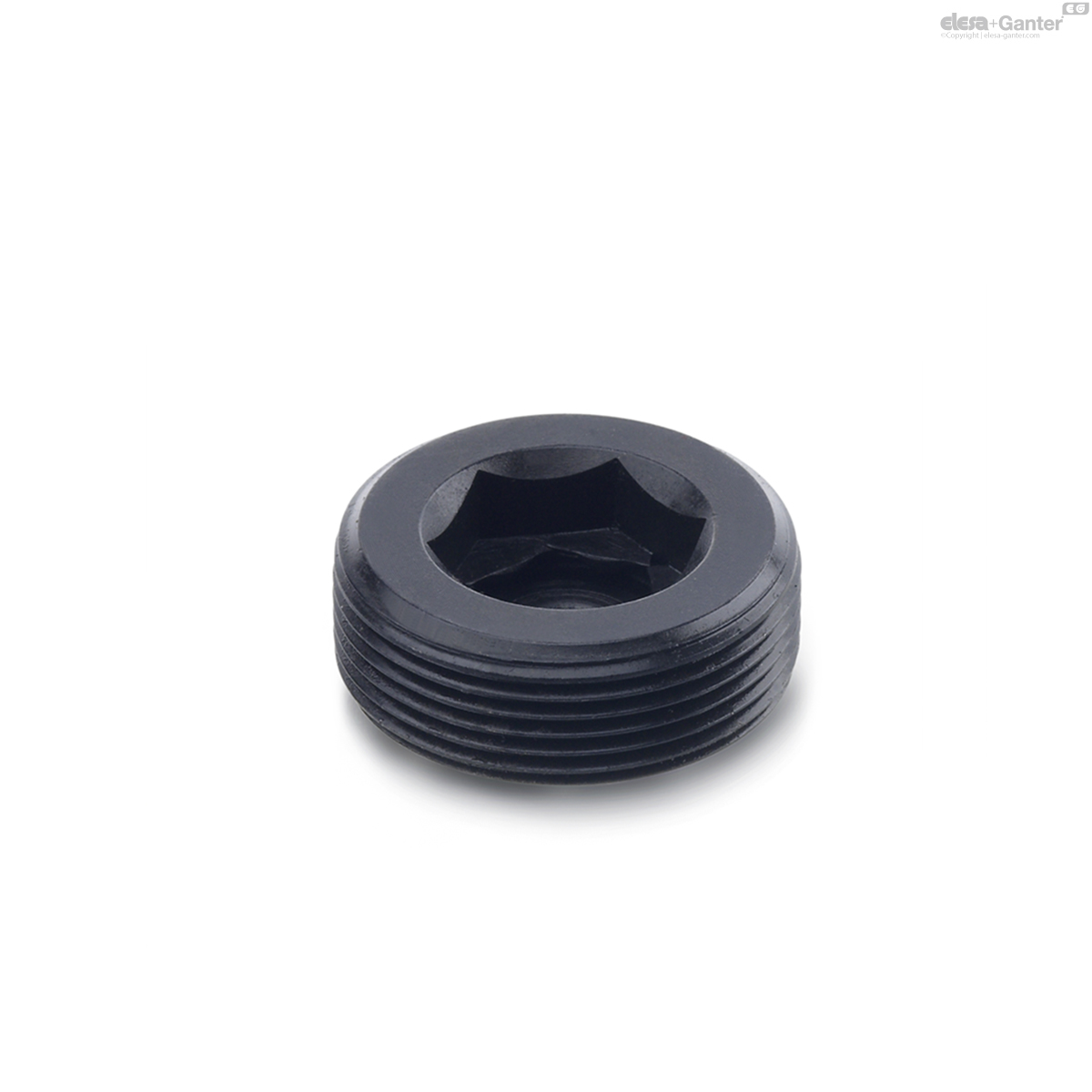

GN 252Blanking plugs
Blanking plugs
GN 252
|
Catalogue
|
d
|
h
|
A/F
|
|
|
|---|---|---|---|---|---|
|
M 12 x 1.5
|
10
|
6
|
6
| ||
|
M 16 x 1.5
|
10
|
8
|
10
| ||
|
M 20 x 1.5
|
12
|
10
|
20
| ||
|
M 24 x 1.5
|
12
|
14
|
24
| ||
|
M 27 x 1.5
|
12
|
14
|
36
| ||
|
M 30 x 1.5
|
12
|
17
|
44
| ||
|
M 33 x 1.5
|
12
|
17
|
56
| ||
|
M 12 x 1.5
|
10
|
6
|
6
| ||
|
M 16 x 1.5
|
10
|
8
|
10
| ||
|
M 20 x 1.5
|
12
|
10
|
20
| ||
|
M 24 x 1.5
|
12
|
14
|
24
| ||
|
M 27 x 1.5
|
12
|
14
|
36
| ||
|
M 30 x 1.5
|
12
|
17
|
44
| ||
|
M 33 x 1.5
|
12
|
17
|
56
|
Types
- Type A: without thread coating
- Type PRB: with thread coating (polyamide allround coating)
Steel
- Tensile strength class 5.8
- blackened
The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
Related products
DIN 906-ST
Threaded Plugs
Steel / Stainless Steel, with Conical Thread
DIN 908-ST
Threaded Plugs
Steel / Stainless Steel, with Collar and Internal Hex

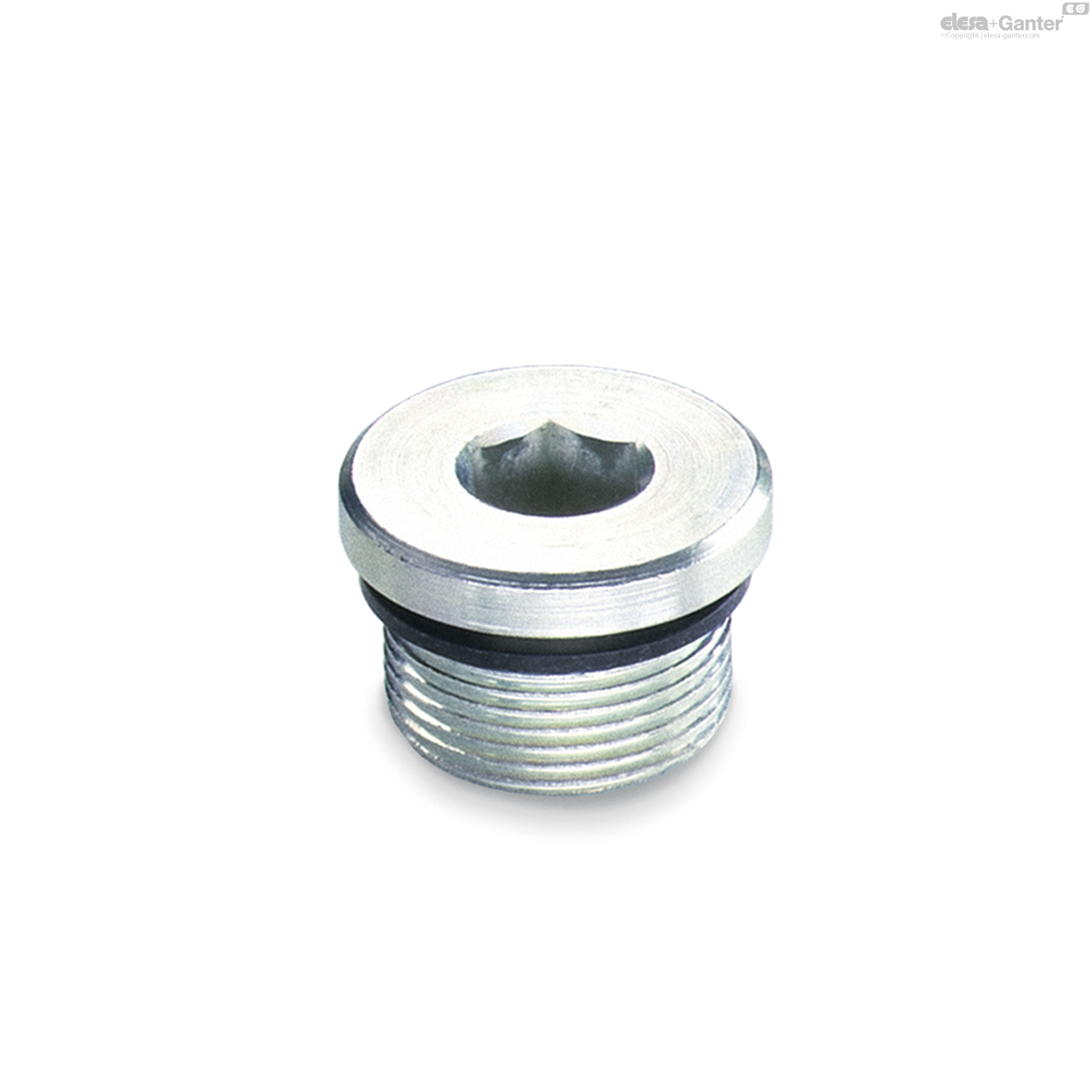

GN 749
