DIN 6336-NIStar knobs

Stainless Steel

Cast iron / Stainless Steel / Aluminium

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Stainless Steel
Stainless Steel
Aluminium
DIN 6336-AL
Aluminium
Stainless Steel
DIN 6336-NI
Stainless Steel
Cast iron
DIN 6336-GG
Cast iron
Zinc plated
DIN 6336-ZB
Zinc plated

DIN 6336-NI

Reset
Catalogue
d1
d2
d4
h1
h2 min.
h3
h4 min.
t1
t2
DIN 6336-NI-32-A
32
-
12
-
-
21
10
-
-
56
DIN 6336-NI-40-A
40
-
14
-
-
26
13
-
-
85
DIN 6336-NI-50-A
50
-
18
-
-
34
17
-
-
179
DIN 6336-NI-63-A
63
-
20
-
-
42
21
-
-
320
DIN 6336-NI-32-M6-D
32
M 6
12
20
9
-
-
-
10
52
DIN 6336-NI-40-M8-D
40
M 8
14
25
12
-
-
-
12
76
DIN 6336-NI-50-M8-D
50
M 8
18
32
15
-
-
-
16
155
DIN 6336-NI-50-M10-D
50
M 10
18
32
15
-
-
-
16
140
DIN 6336-NI-63-M10-D
63
M 10
20
40
19
-
-
-
20
289
DIN 6336-NI-63-M12-D
63
M 12
20
40
19
-
-
-
20
290
DIN 6336-NI-32-M6-E
32
M 6
12
20
9
-
-
12
-
53
DIN 6336-NI-40-M8-E
40
M 8
14
25
12
-
-
15
-
76
DIN 6336-NI-50-M8-E
50
M 8
18
32
15
-
-
18
-
173
DIN 6336-NI-50-M10-E
50
M 10
18
32
15
-
-
18
-
156
DIN 6336-NI-63-M10-E
63
M 10
20
40
19
-
-
22
-
303
DIN 6336-NI-63-M12-E
63
M 12
20
40
19
-
-
22
-
296

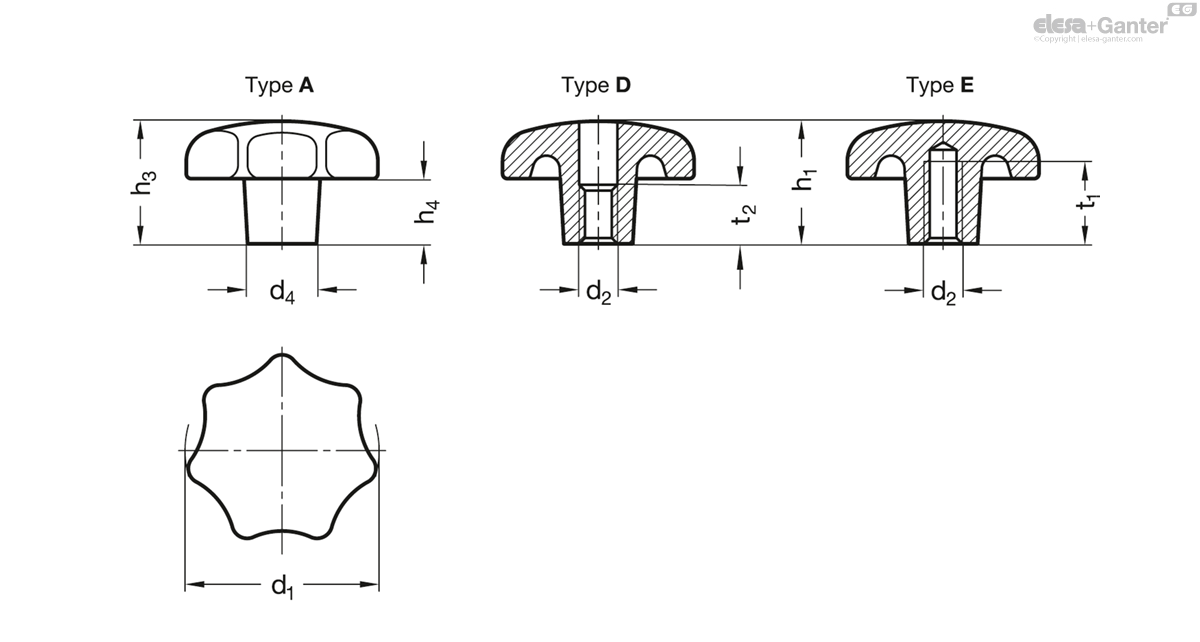

Types

  • Type A: without bore (unmachined)
  • Type B: with plain through bore H7
  • Type C: with plain blind bore H7
  • Type D: with threaded through bore
  • Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

  • AISI CF-8
  • matt shot-blasted

Aluminium AL

only types A, C, D, E

  • matt finish (ground), flash mark not visible MT
  • polished PL
  • plastic coated
