Technical datasheet
DIN 444Swing bolts
Steel
Steel / Stainless Steel
DIN 444
|
Catalogue
|

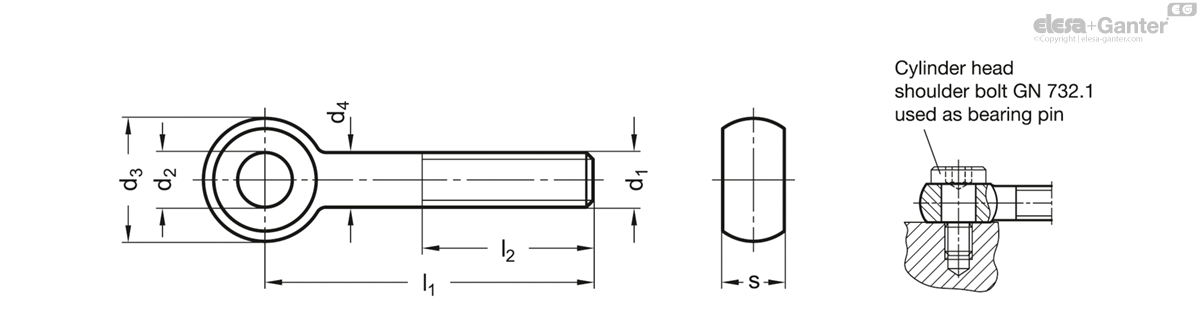

d1
|
l1
|
l2
|
d2 H7
|
d3 -0.3
|
s -0.15
|
d4
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
M 5
|
50
|
32
|
5
|
12
|
6
|
5
|
9
| ||
|
M 5
|
75
|
32
|
5
|
12
|
6
|
5
|
10
| ||
|
M 6
|
50
|
32
|
6
|
14
|
7
|
6
|
14
| ||
|
M 6
|
75
|
32
|
6
|
14
|
7
|
6
|
19
| ||
|
M 8
|
50
|
32
|
8
|
18
|
9
|
8
|
26
| ||
|
M 8
|
75
|
32
|
8
|
18
|
9
|
8
|
34
| ||
|
M 10
|
50
|
40
|
10
|
20
|
12
|
10
|
32
| ||
|
M 10
|
75
|
40
|
10
|
20
|
12
|
10
|
50
| ||
|
M 10
|
100
|
40
|
10
|
20
|
12
|
10
|
68
| ||
|
M 12
|
75
|
40
|
12
|
25
|
14
|
12
|
80
| ||
|
M 12
|
100
|
40
|
12
|
25
|
14
|
12
|
106
| ||
|
M 12
|
130
|
40
|
12
|
25
|
14
|
12
|
110
| ||
|
M 16
|
75
|
50
|
16
|
32
|
17
|
16
|
146
| ||
|
M 16
|
100
|
50
|
16
|
32
|
17
|
16
|
189
| ||
|
M 16
|
130
|
50
|
16
|
32
|
17
|
16
|
220
| ||
|
M 20
|
100
|
63
|
18
|
40
|
22
|
20
|
320
| ||
|
M 20
|
130
|
63
|
18
|
40
|
22
|
20
|
366
| ||
|
M 20
|
160
|
63
|
18
|
40
|
22
|
20
|
477
|

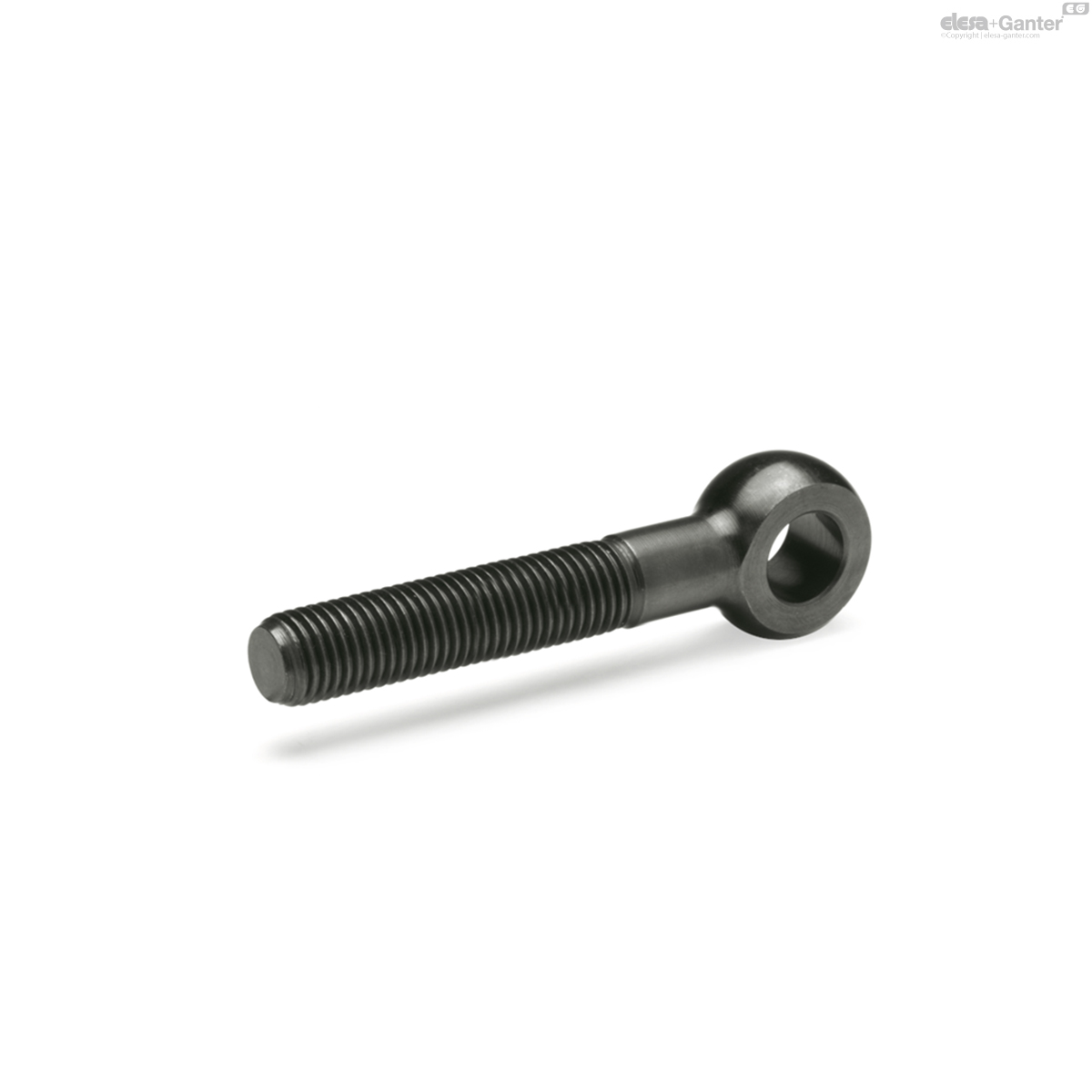

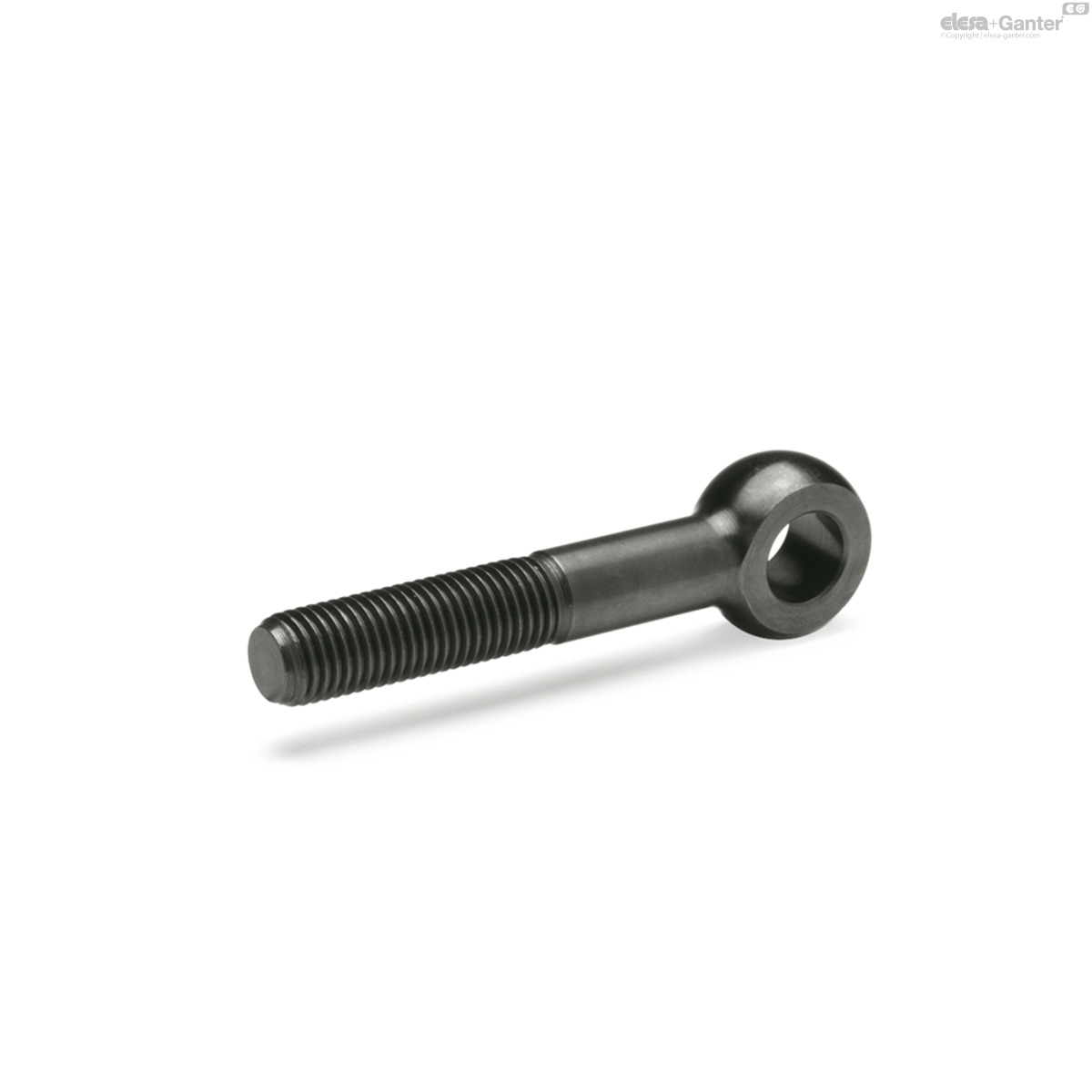

Version in Steel
- Tensile strength class 5.8
- turned, thread rolled
- blackened

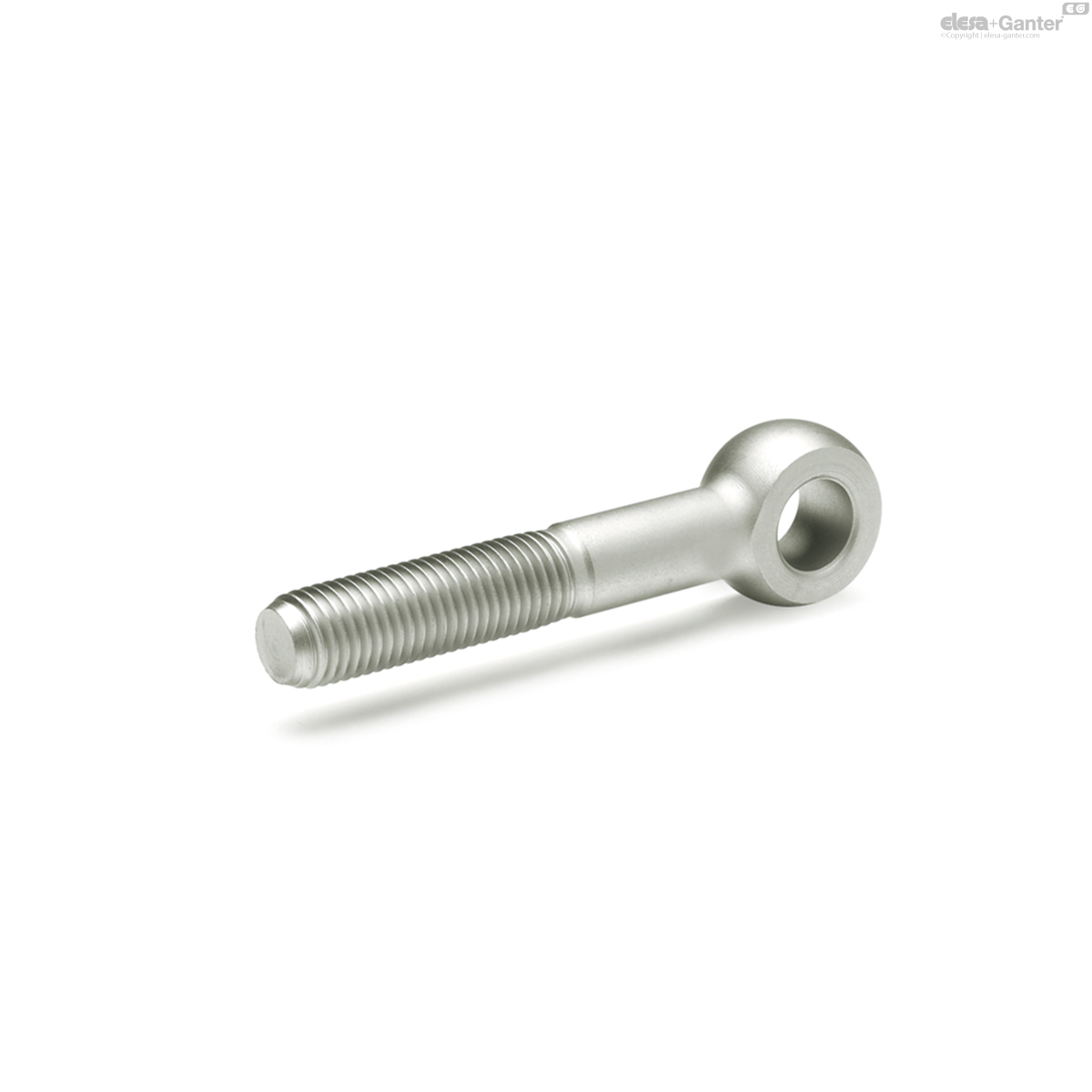

Version in Stainless Steel AISI 303 NI
- turned, thread rolled
- matt shot-blasted
Precision type swing bolts DIN 444 are mainly used for jigs and fixtures.
For stocking purposes cylinder head shoulder bolts GN 732.1 can be used for the sizes M6, M8, M10 and M12.
