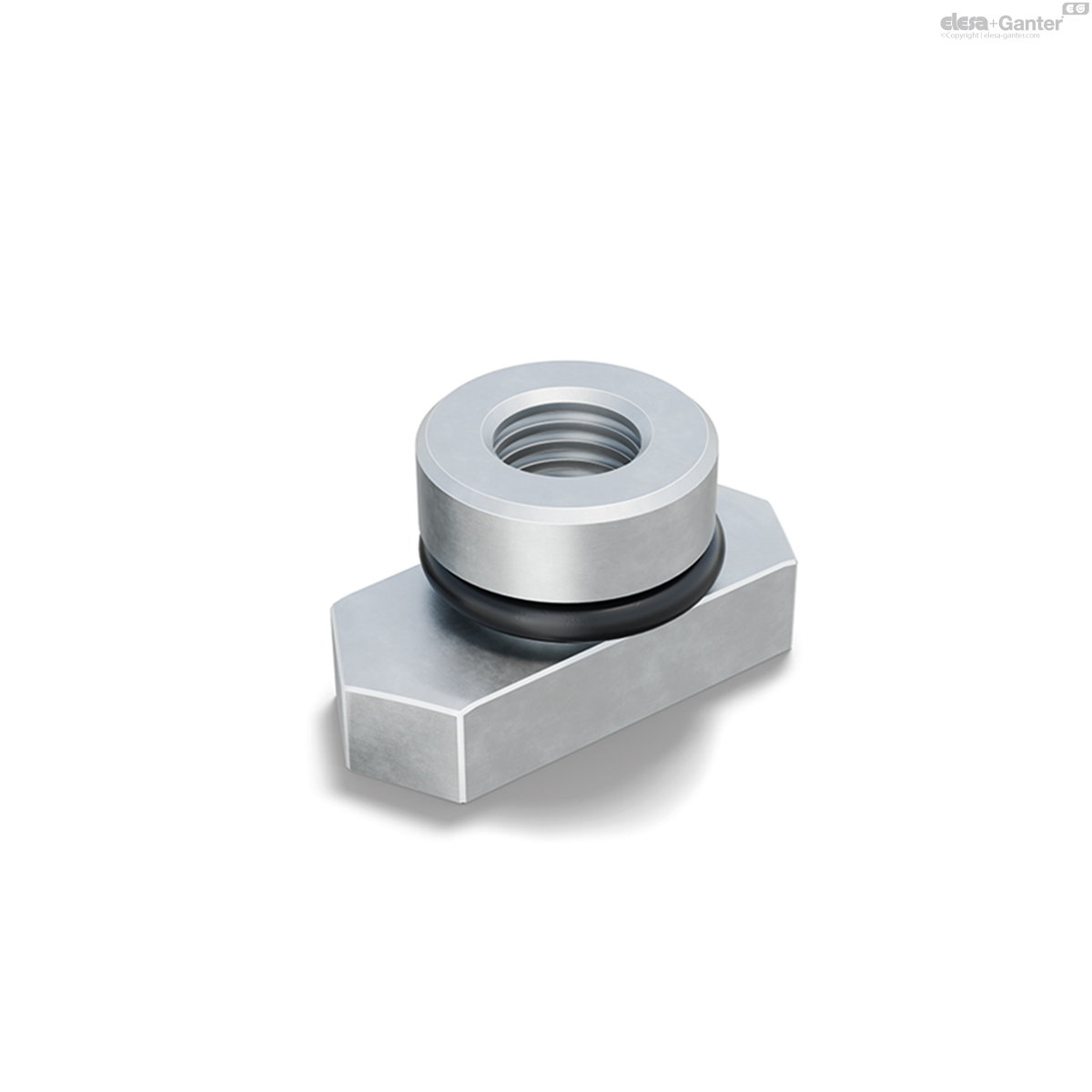

DCE-NTG-D-M8-ZN+OR DCE-NTG-D For DIN 3015-3 double series tube clamps

DCE-NTG-D-M8-ZN+OR

DCE-NTG-D For DIN 3015-3 double series tube clamps

for DCE tube clamps, steel
  • RoHS

Eta: 1-2 weeks All sizes and variants of DCE-NTG

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570536
b
10.4
d
M 8
d1
13.8
d2
14.4
l
25.5
h
13.5
h1
2.2
h2
5.5
For tube clamp
DCE-D
13

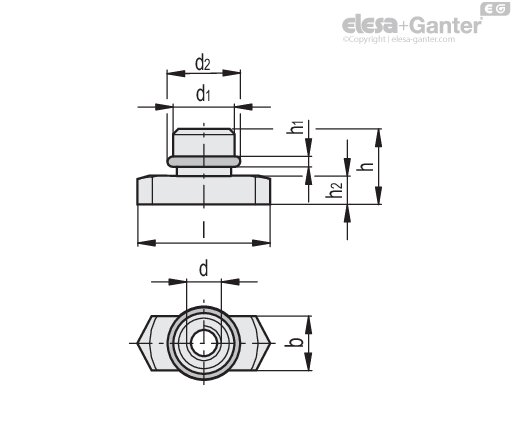

DCE-NTG-D-M8-ZN+OR drawing

Material

Zinc-plated steel

Standard executions

  • DCE-NTG-S: with black NBR rubber cap, for use with DCE-S standard series tube clamps (DIN 3015-1).
  • DCE-NTG-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
  • DCE-NTG-D: with black NBR rubber ring, for use with DCE-D double series tube clamps (DIN 3015-3).

Features and applications

Designed to be paired with DIN 3015 clamps, they are the solution to securing tube clamps to the mounting guide.

They allow the clamps to slide along the rail to create modular fastening structures.

With standard metric threading that facilitates pairing with DCE-SRE and DCE-SRC assembly screws.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
