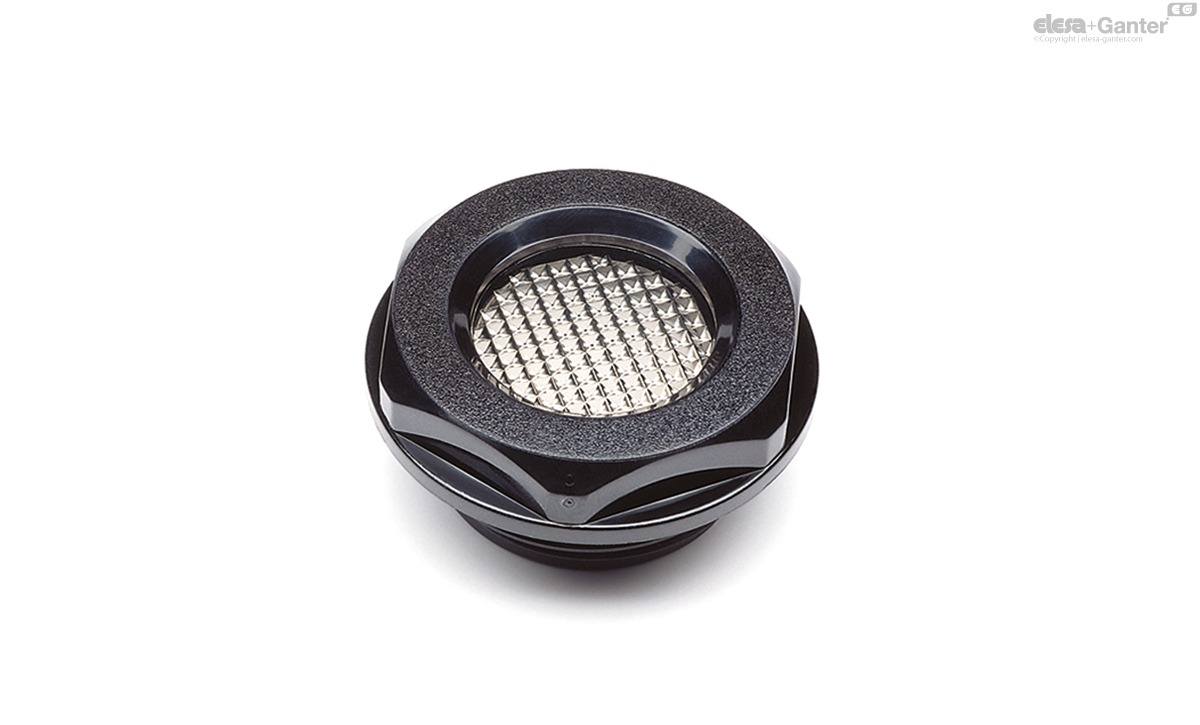

HGFT.21/PR-M33x1.5-C9 HGFT-PR Oil level sight glasses

HGFT.21/PR-M33x1.5-C9

HGFT-PR Oil level sight glasses

with prismatic window, technopolymer up to 100°C
  • PA
  • PAT-AR
  • g10030
  • RoHS
  • ELE OD

Eta: 1-2 weeks All sizes and variants of HGFT-PR

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
14512
d1
M33x1.5
A
11.5
B
9
D
42.5
d
22.5
s
38
Tightening torque
[Nm]
10÷12
14
HGFT.21/PR-M33x1.5-C9 drawing

Material

Polyamide based (PA) technopolymer, black colour, glossy finish.

Prismatic window

Transparent polyamide based (PA-T/AR) technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.

Packing ring

NBR synthetic rubber.

Maximum continuous working temperature

100°C at 3 bar pressure.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
