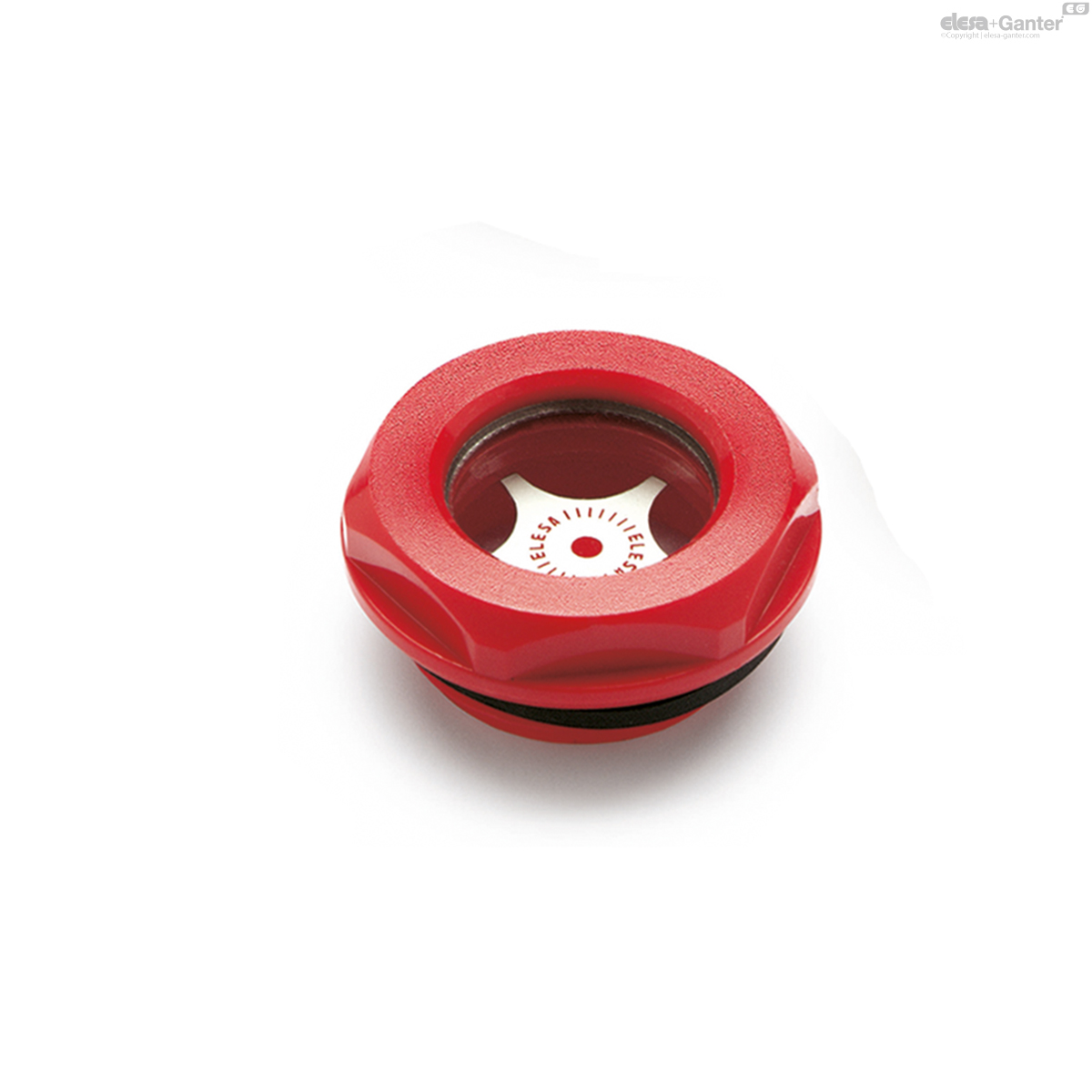

HGFT.10-M16x1.5-C6
HGFT. With contrast screen
Technopolymer up to 100°C
Eta: 1-2 weeks All sizes and variants of HGFT.
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

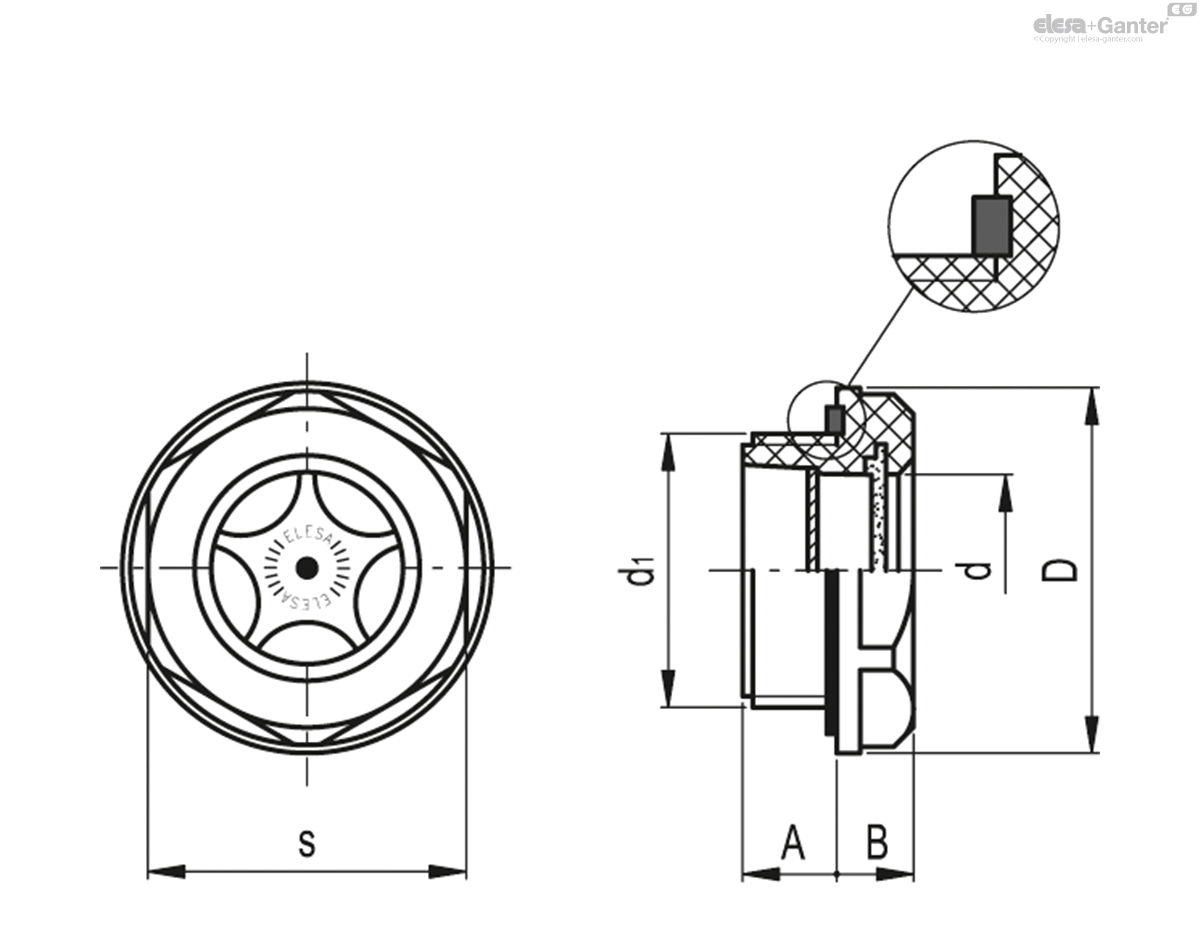

Technical datasheet
Technical data
- Catalogue
- 14434
- d1
- M16x1.5
- A
- 8
- B
- 7.5
- D
- 25
- d
- 11
- s
- 21.5
- Tightening torque
[Nm] - 4÷5
- 6
Material
Polyamide based (PA) technopolymer, black or red colour, glossy finish (HGFT-SL only black colour).
Window
Transparent polyamide based (PA-T/AR) technopolymer.
Packing ring
NBR synthetic rubber.
Standard executions
- HGFT.: with matte anodised aluminium star-shaped contrast screen with red central level point.
- HGFT-SL: without contrast screen.
Maximum continuous working temperature
100°C at 3 bar pressure.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
