TCC-TS-30-PR-1-C9 TCC-TS-PR-1 One connecting clamp

TCC-TS-30-PR-1-C9

TCC-TS-PR-1 One connecting clamp

Technopolymer and aluminium
  • Icons/__logo__PA__.png
  • Icons/__logo__INOX__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__gda_winner_24__.png

Eta: 1-2 weeks All sizes and variants of TCC-TS-PR

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
600907-C9
d
8.5
L
224
C
38
d1
13.5
d3
30
f ±1
200
h
82
h1
60
h2
25
h3
14.5
h4
124.5
l1
154
l2
57
l3
18
l4
64.5
C#
[Nm]
12
F1*
[N]
1650
M1**
[Nm]
17
354

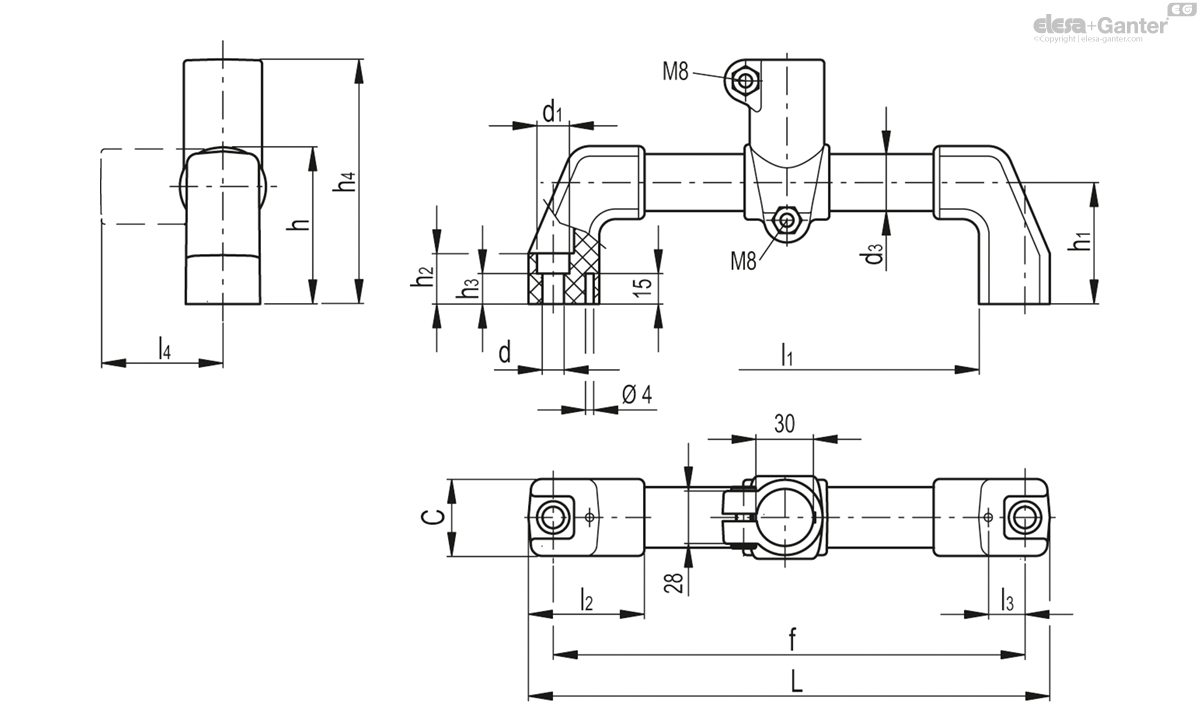

TCC-TS-30-PR-1-C9 drawing
TCC-TS-30-PR-1-C9 drawing
TCC-TS-30-PR-1-C9 drawing
# Recommended torque for clamp screw tightening.* Resistance to tube pull out.** Resistance to tube rotation.

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish. Supplied assembled.

The handle shank connection to the tube avoids tube rotation.

Tube

Anodised aluminium, natural colour.

Connecting clamp

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.

Self-locking nuts in AISI 304 stainless steel. Supplied assembled.

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket.

  • TCC-TS-PR-1: one connecting clamp.
  • TCC-TS-PR-2: two connecting clamps.

Features and applications

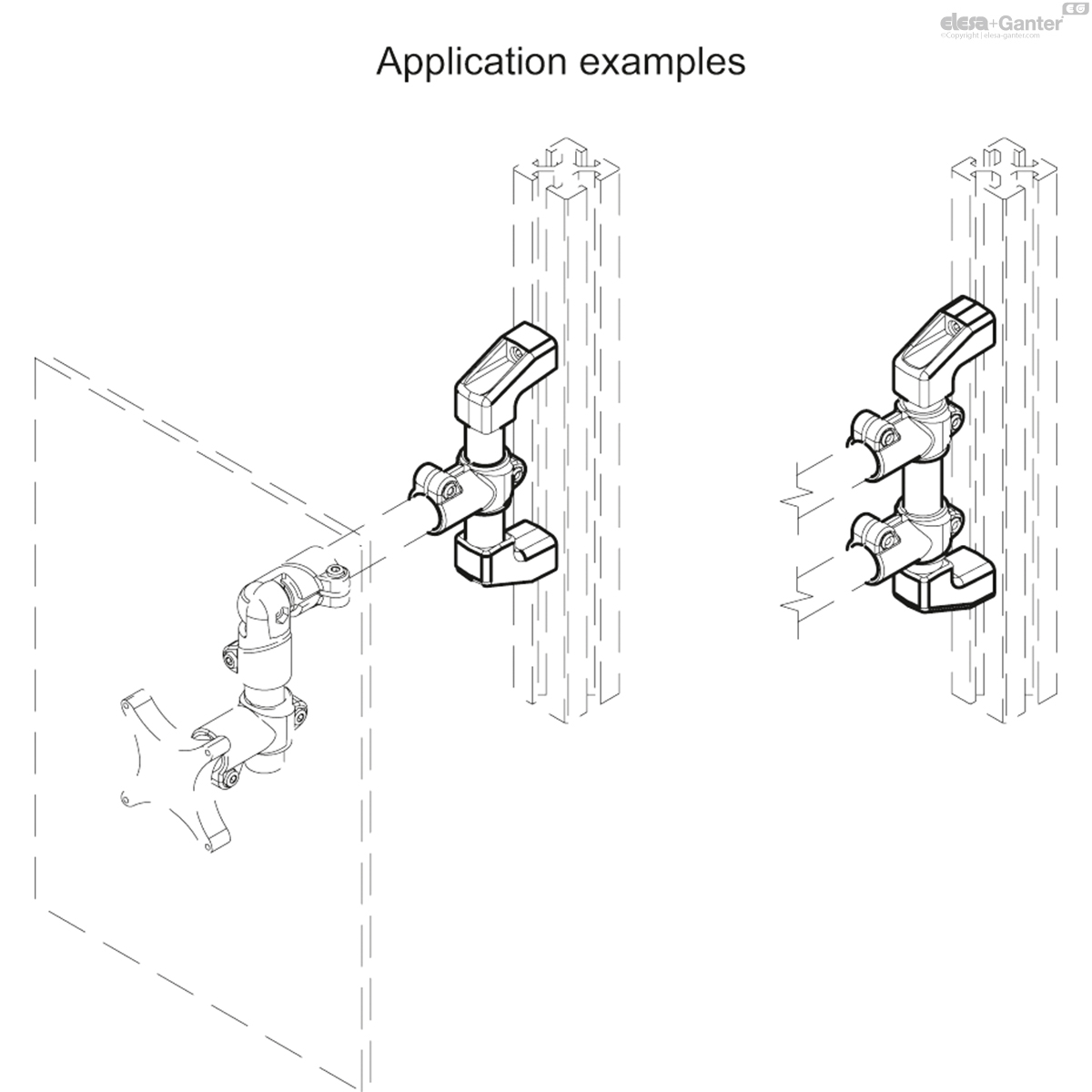

The clamps enable various types of assembly (see examples).



Technical data

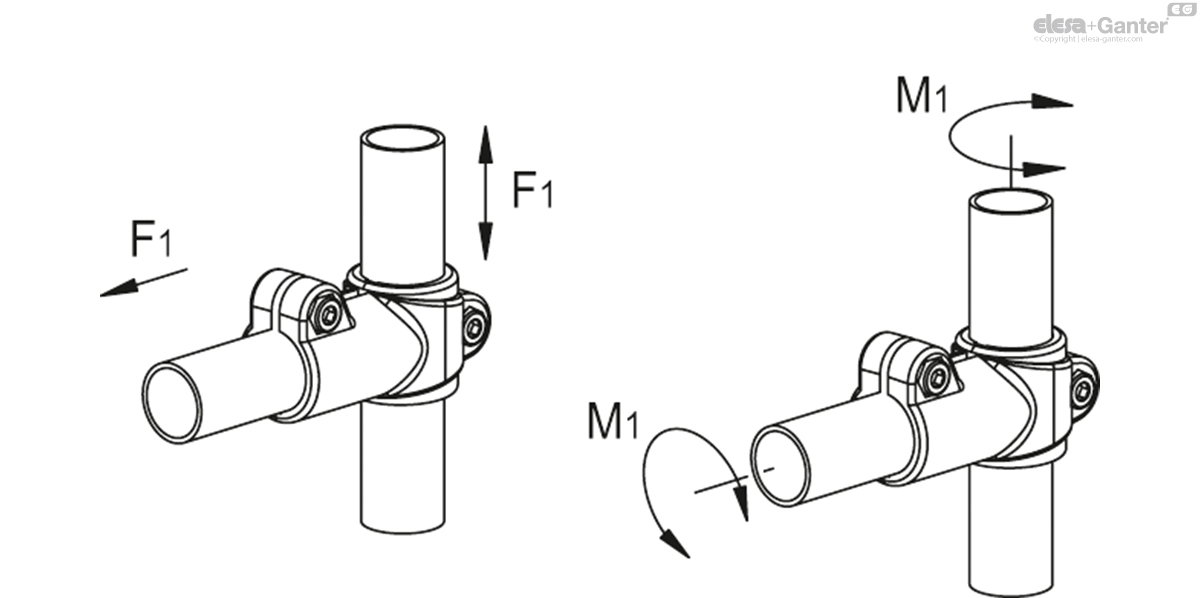

Pull-out and rotational resistance: the F1 and M1 values shown in the table were measured using special dynamometer apparatus by tightening the screws to the recommended torque 'C#' under the test conditions shown and at room temperature.
