BT-HP.20-p-M5x24
BT-HP-AV-p Zinc-plated steel threaded stud
for screwing with a screwdriver, technopolymer
Eta: 1-2 weeks All sizes and variants of BT-HP-AV
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

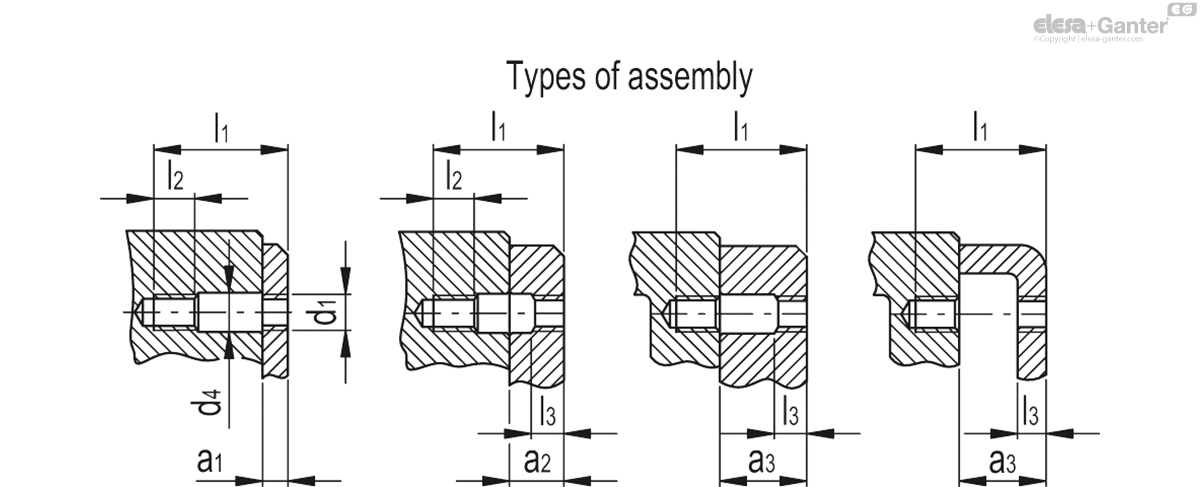

Technical datasheet
Technical data
- Catalogue
- 5336
- Description
- BT-HP.20-AV-p-M5x24
- D
- 20
- L
- 17
- d1
- M5
- d2
- 11
- d3±0.1
- 4
- d4
- 5.5
- l1
- 24
- l2
- 6
- l3
- 2.5
- h
- 6
- a1
- 4 ÷ 6
- a2
- 8 ÷ 12
- a3
- 12 ÷ 18
- 7
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- BT-HP-AV-p: polished zinc-plated steel threaded stud, chamfered flat end UNI EN ISO 4753 : 2012 (see Technical data).
- BT-HP-AV-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end UNI EN ISO 4753 : 2012 (see Technical data).
Features and applications
The retained fluted knobs are used to secure blanking plates, covers, or other items without the risk of loss.
This is made possible by the non-threaded part of the stem, which allows the knob to remain anchored (retained) to the machinery.
The cable in the upper part is an ideal support when you have to tighten with a 6.5 mm flat-blade screwdriver (BT.12 and BT.16) or 10 mm (BT.20).
