Name: 9192.3-25-M8-20 GN 9192.3 Height Adjusting Cylinders
Brand: Elesa+Ganter
SKU: 9192.3-25-M8-20
Availability: BackOrder

GN 9192.3 Height Adjusting Cylinders

Eta: 1-2 weeks All sizes and variants of GN 9192.3

🔒 Prices, live stock & CAD downloads

Technical datasheet

Technical data

Catalogue: GN 9192.3-25-M8-20
d₁ -0.1: 25
h₁ ±0.01: 20
d₂: M 8
h₂: 10
l: 20
A/F: 22
: 71

Specification
Information

Steel

Case-hardened

Blackened

Grub screw DIN 913

Steel, blackened

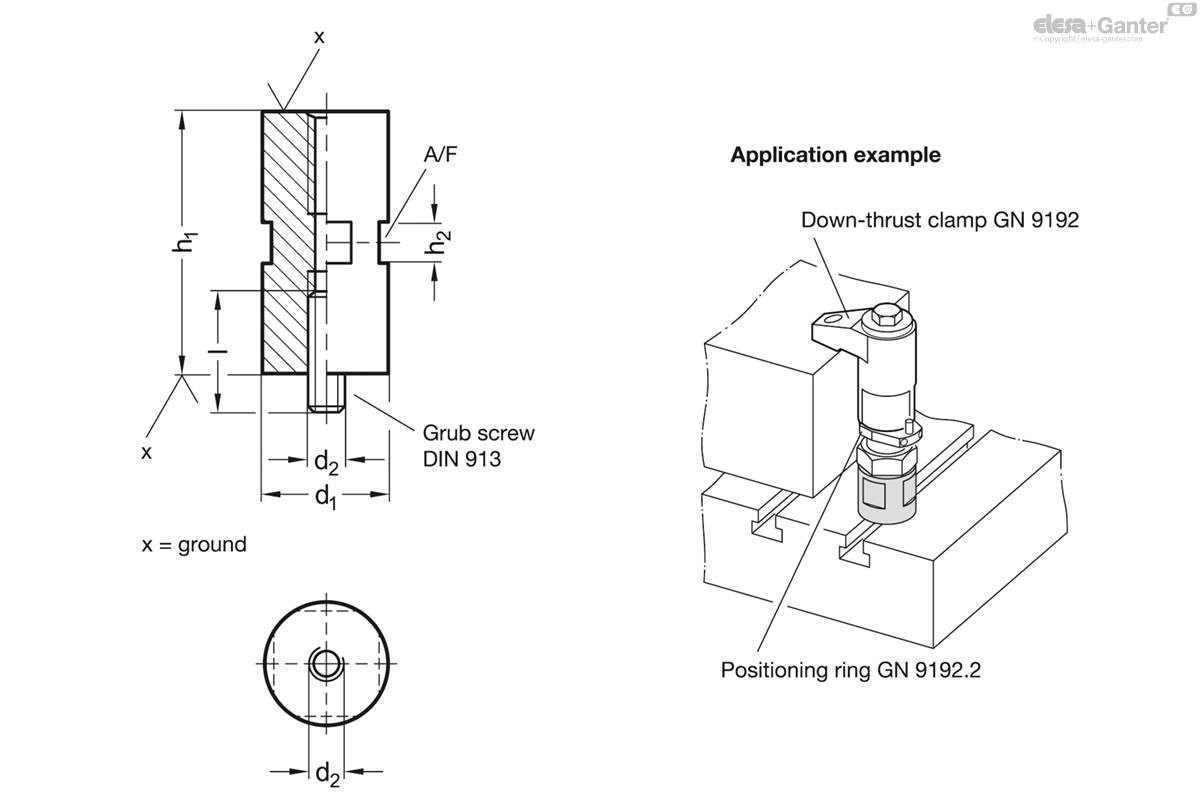

Height adjusting cylinders GN 9192.3 are used to increase the clamping height of down-thrust clamps GN 9192.

Height adjusting cylinders can also be used in combination with positioning elements and clamping pads to position contact points at a greater distance from the reference surface.
