GN 9192.2 Positioning Ring
for Down-Thrust Clamps GN 9192
Eta: 1-2 weeks All sizes and variants of GN 9192.2
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 9192.2-28-7
- d0
GN 9192 - 40
- d1
- 28
- h1
- 7
- b
- 35
- d2
- 5
- h2
- 16
- l1
- 43.5
- l2
- 17.5
- 32
Steel
Blackened
Set screws
- Steel, blackened
- Brass tip

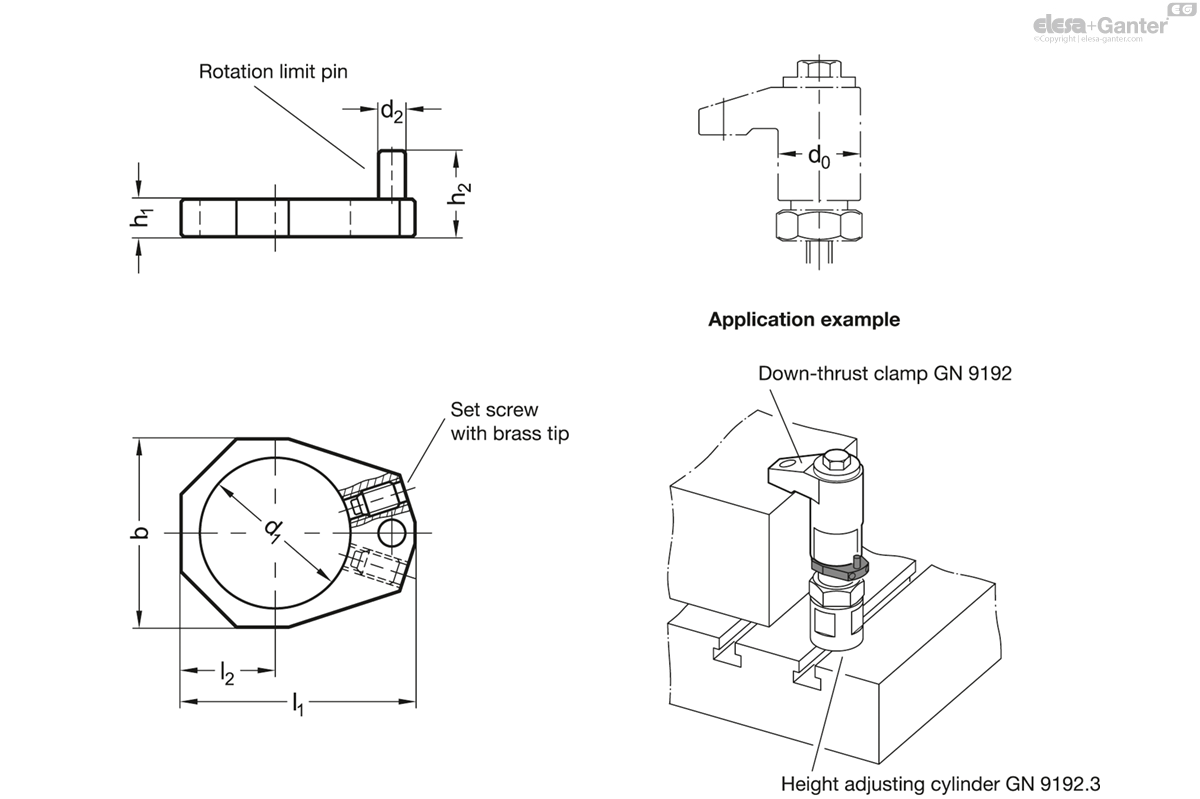

Positioning rings GN 9192.2 limit the swiveling range of down-thrust clamps GN 9192 to 110° left or right via a positioning pin. The position of the ring can be adjusted to ensure that the clamping position is reached reliably when the clamp swivels against the positioning pin.
The positioning ring is secured with two set screws. The stroke of the down-thrust clamp is reduced by the height h1 of the positioning ring.
