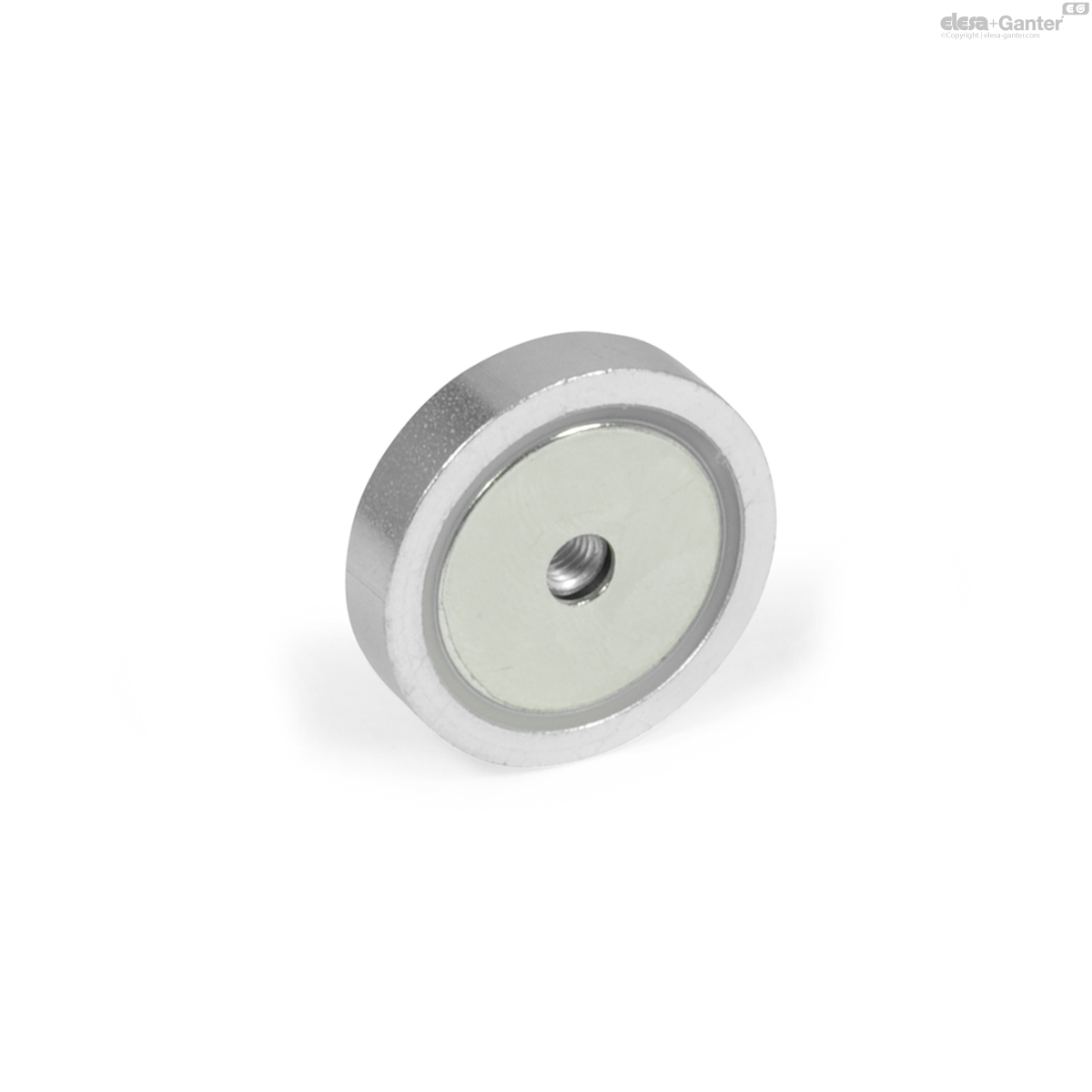

50.5-ND-47 GN 50.5 Retaining Magnets

50.5-ND-47

GN 50.5 Retaining Magnets

Disk-Shaped, with Internal Thread
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 50.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 50.5-ND-47
d1
47 +0.2/-0.1
d2
M 8
d3
6.8
h
9.2 +0,2/-0,3
t
6
Nominal adhesive forces in N
740
103

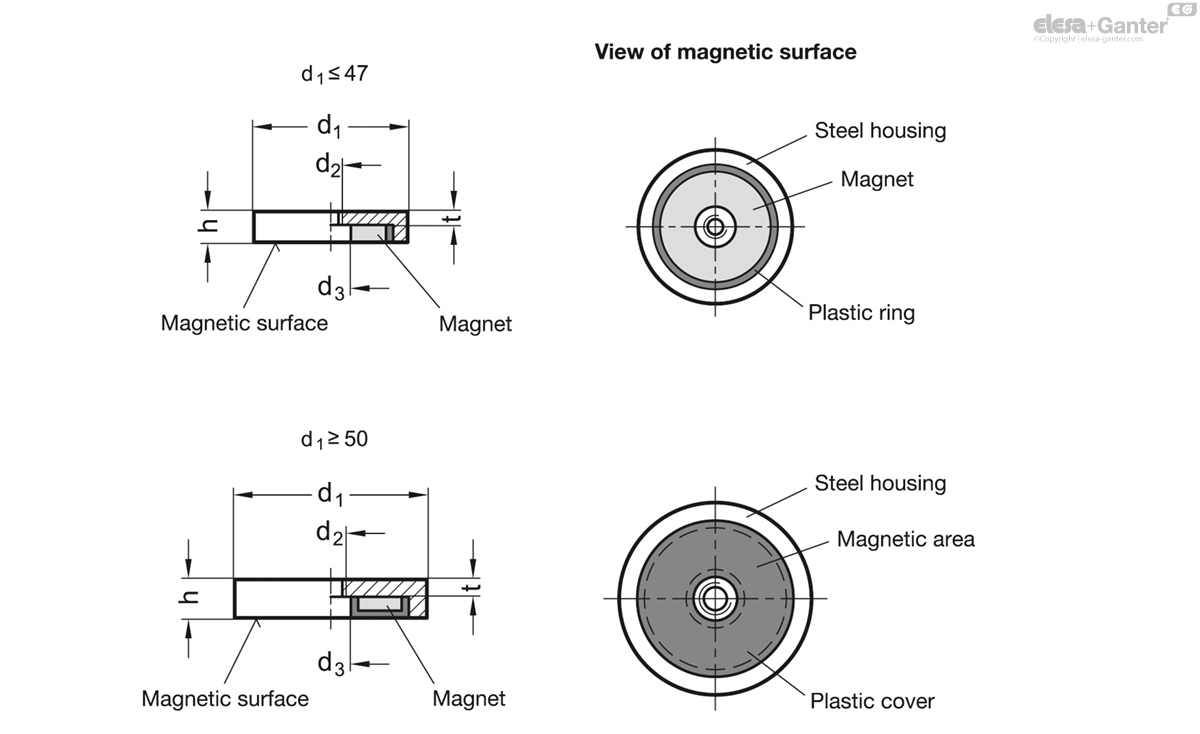

50.5-ND-47 drawing

Housing

Steel, zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Plastic cover

Technopolymer (Polyamide PA)

Retaining magnets GN 50.5 are combined with a steel housing and a plastic ring and the plastic cover into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

For diameter d1 ≥ 50 the adhesive surface is lagged with an all over plastic cover.

To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example stainless steel, brass or plastic.
