TCC-AB-18-C33
TCC-AB Connecting clamps with mounting base
Eta: 1-2 weeks All sizes and variants of TCC-AB
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

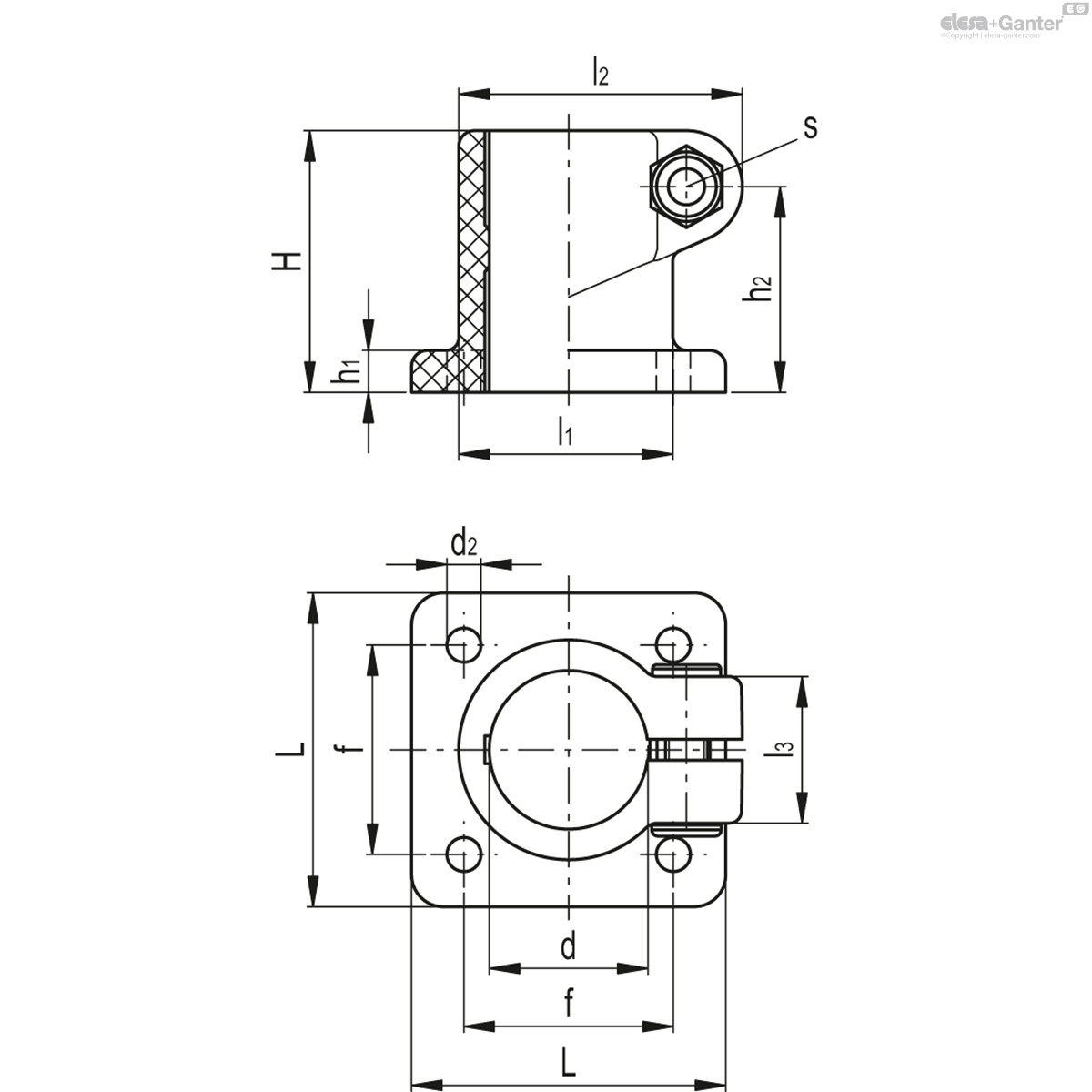

Technical data
- Catalogue
- 600111-C33
- d
- 18
- L
- 45
- H
- 34
- d2
- 5.3
- f ±0.2
- 30
- h1
- 5
- h2
- 25
- l1
- 26
- l2
- 36.5
- l3
- 20
- s
- M6
- C#
[Nm] - 5
- F1*
[N] - 1050
- M1**
[Nm] - 8
- 25
Clamp
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screw and nut (supplied)
Cylindrical-head screws with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nut in AISI 304 stainless steel.
Features
Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeves TCC-A can be used (ordered separately).

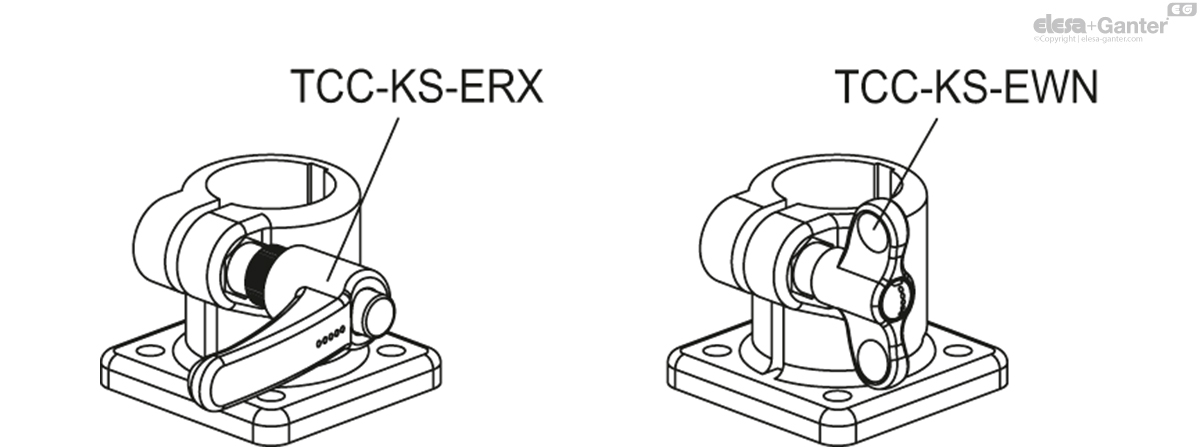

The 's' grub screw may be replaced by the kit TCC-KS.
Technical data

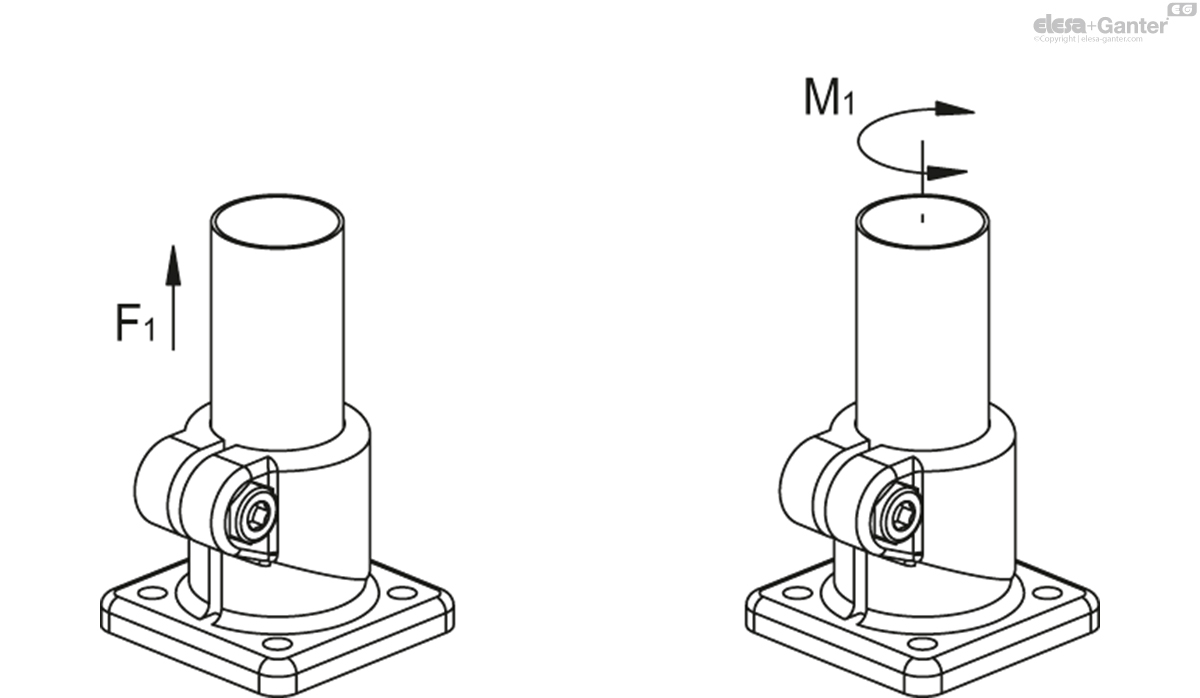

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
